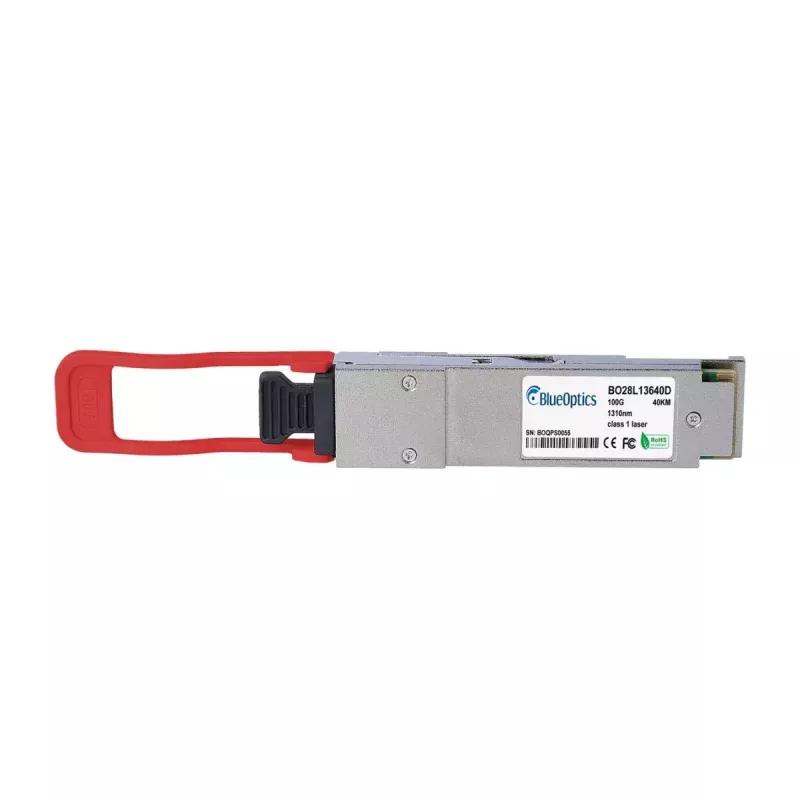

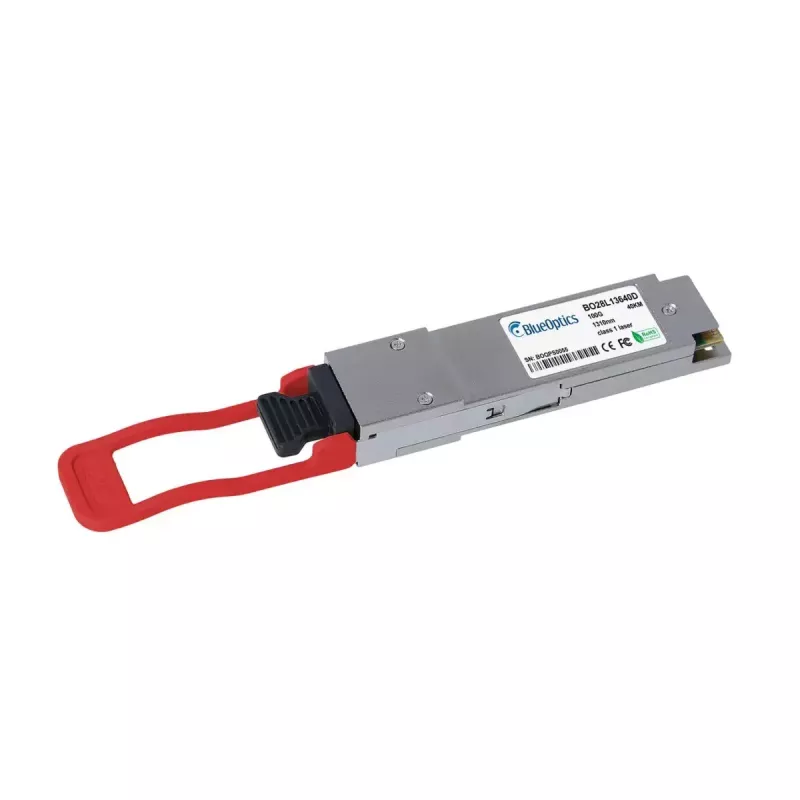

Módulo transceptor de fibra óptica BlueOptics 740-093290-BO 100000 Mbit/s QSFP28

The BlueOptics 740-093290-BO is a QSFP28 fiber optic transceiver module engineered for high-speed network environments. With a maximum data transfer rate of 100000 Mbit/s and a compact silver form factor weighing approximately 40 g, this module provides a high-density interface for 100G links. The product is intended for use in data centers, aggregation switches and high-performance networking equipment where reliable, low-latency optical connectivity is required.

Advantages

The QSFP28 interface supports four lanes of high-speed optical transmission in a single compact module, enabling efficient use of switch and router ports. A rated MTBF of 1,000,000 hours indicates a long service life and reduced need for replacement in stable operating conditions. The module’s lightweight and standard form factor facilitate installation in racks and hot-pluggable transceiver bays, while the silver finish is compatible with typical networking hardware aesthetics.

Suitable for

• 100G Ethernet links in data center spine and leaf architectures
• High-performance computing clusters and storage networks
• Carrier aggregation and metro optical transport systems
• Switches and routers with QSFP28 ports for uplink or interconnect

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Weight: 0.04 kg
• Product colour: Silver
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on a switch, router or transceiver bay, ensuring correct orientation and that the host device supports 100G operation. Connect appropriate fiber optic cabling or breakout assemblies according to the link type required by the network (direct 100G or multi-lane breakout). Verify link status and configure the host device for the desired speed and lane configuration. Handle the module by its body and keep protective dust caps on the optical interfaces when not connected.

Recommendations

Use certified single-mode or multimode fiber and adhere to the host equipment vendor’s compatibility list for QSFP28 modules. Keep operating environment within the host device’s specified temperature and humidity ranges and perform periodic inspections of fiber connectors to maintain signal integrity.
