Módulo transceptor de fibra óptica BlueOptics 740-099582-BO QSFP28 MTP/MPO

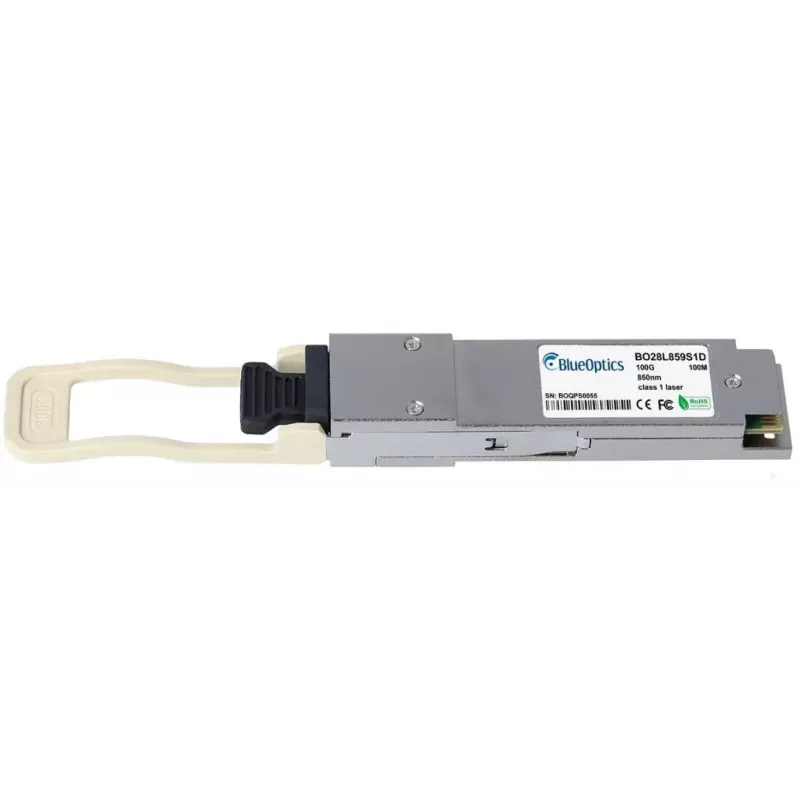

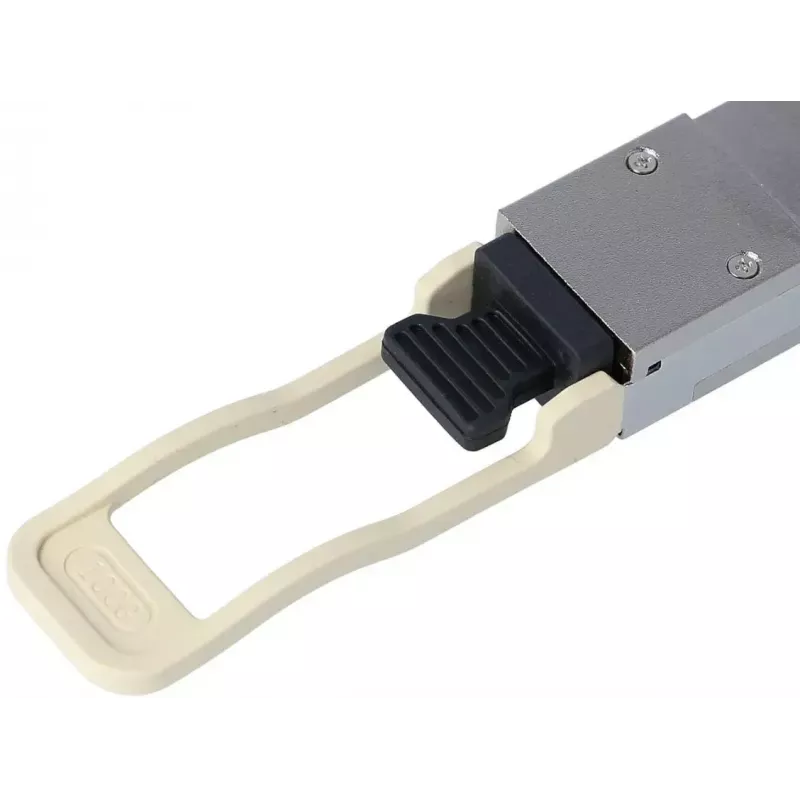

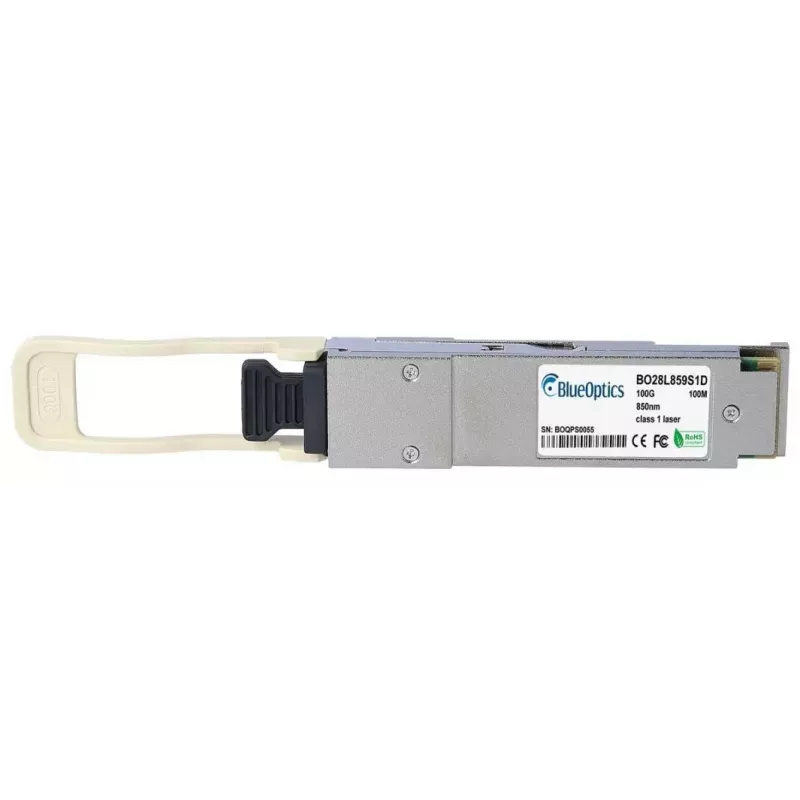

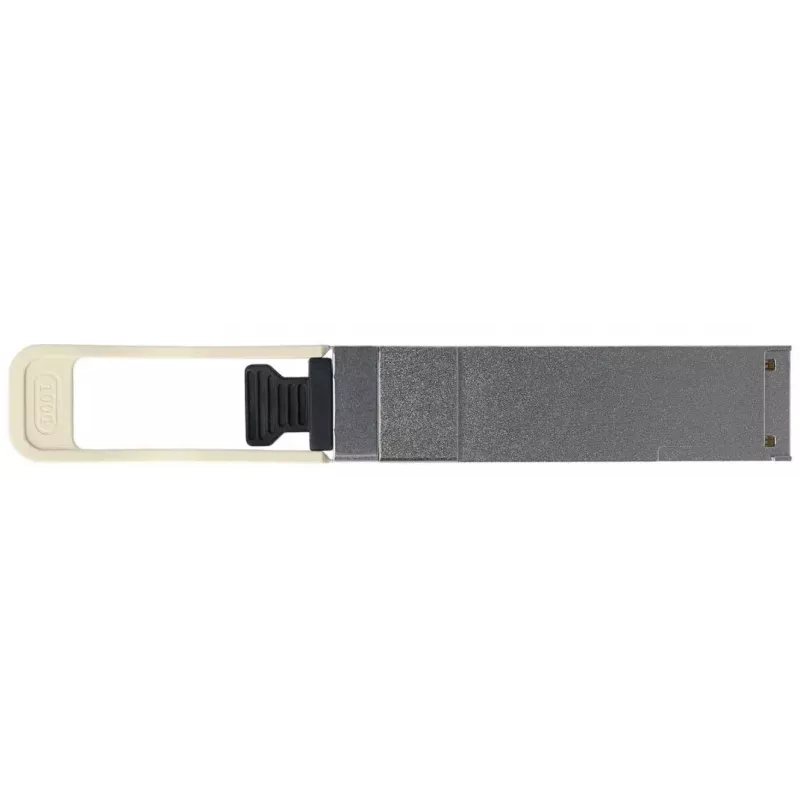

The BlueOptics 740-099582-BO QSFP28 MTP/MPO fiber optic transceiver module is designed for high-speed 100G data transmission over multi-mode fiber. The module uses a QSFP28 interface and an MTP/MPO connector, and its aluminium housing gives a compact, lightweight form factor with a product weight of approximately 40 g. It supports short-reach multimode optical links and is intended for integration into network equipment that accepts QSFP28 transceivers.

Advantages

The module provides a standardized QSFP28 connection and an MTP/MPO optical interface for parallel multi-fiber links, enabling transmission of aggregated 100G signals over multimode fiber. Its aluminium construction combines low weight and mechanical durability for rack-mounted and chassis-based network devices. The design follows MSA-compatible form factors to maximize interoperability with systems that support QSFP28 transceivers with MTP/MPO connectors.

Suitable for

• High-speed data center uplinks and switch-to-switch connections
• Server farm interconnects requiring 100G multi-mode links
• Short-reach aggregation links in enterprise networks
• Environments using MTP/MPO patching systems and fiber patch panels

Key specifications

• Interface type: QSFP28
• Optical connector: MTP/MPO (multi-fiber parallel)
• Optical medium: multimode fiber (short-reach applications)
• Housing material: aluminium
• Weight: 0.04 kg

How to use

Install the transceiver into a compatible QSFP28 slot on network switches, routers or other hardware following the vendor’s hot-plug and ESD handling procedures. Connect an MTP/MPO multimode fiber patch cord to the transceiver’s MTP/MPO port, ensuring proper fiber polarity and alignment. Confirm that the host device firmware and driver settings support QSFP28 transceivers and the intended 100G protocol before enabling the link. Perform link Bring-Up and verify optical power and signal status using the host diagnostics where available.

Recommendations

To achieve optimal performance, use certified multimode MTP/MPO patch cords and maintain clean connector endfaces. Verify that the target hardware supports QSFP28 MTP/MPO transceivers and enable any required digital diagnostic monitoring (DDM/DOM) support in the host device to monitor optical parameters and facilitate troubleshooting.
