Módulo transceptor de fibra óptica BlueOptics AOM-TQSFP-79EEPZ-AVG-BO 40000 Mbit/s QSFP

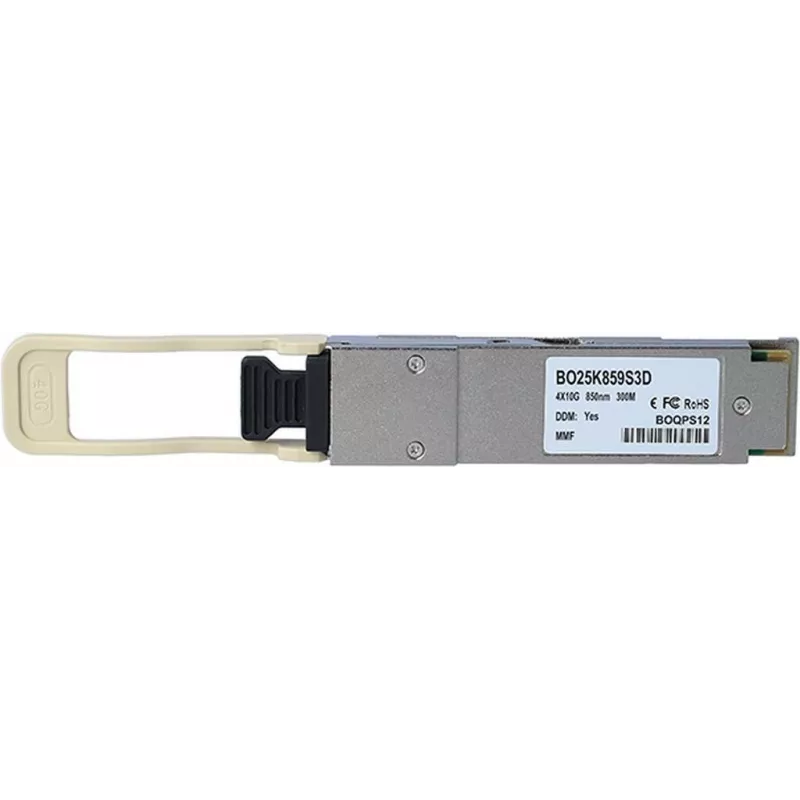

The BlueOptics AOM-TQSFP-79EEPZ-AVG-BO is a fiber optic transceiver module designed for high-speed data transfer at 40000 Mbit/s. It uses a QSFP interface and is housed in a durable metal casing with a silver finish, weighing approximately 0.04 kg. The module supports multimode fiber connections via an MPO/MTP connector and implements bidirectional optical transmission with 850 nm lasers for transmitter and receiver functions. It is intended for integration into network hardware that accepts QSFP transceivers and supports 40G optical links.

Advantages

The module provides 40 Gbit/s optical throughput in a compact QSFP form factor and is compatible with systems that support 40G QSFP transceivers. Its metal housing offers mechanical robustness and thermal conduction, while the MPO/MTP interface enables parallel multimode connections. The transceiver supports digital diagnostics monitoring (DDM/DOM) for remote readout of operational parameters such as supply voltage, optical power and temperature when the host hardware supports these features.

Suitable for

• 40G Ethernet aggregation links
• High-speed server-to-switch interconnects
• Storage area network uplinks and data center fabric
• Optical backbone links within campus or data center environments (multimode, short-reach)

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Optical wavelength: 850 nm (transmit and receive)
• Connector type: MPO/MTP (multimode parallel)
• Supported medium: multimode fiber
• Typical reach: short-reach multimode links (manufacturer guidance applicable)
• Product colour: Silver
• Weight: 0.04 kg

How to use

Insert the QSFP transceiver into a compatible QSFP slot on a switch, router, server NIC or other network device while the host is powered down or following the vendor's hot-swap guidance. Connect the MPO/MTP multimode patch cable to the module's connector and route the other end to the matching device or patch panel. Verify link status and speed through the host device management interface. If available and supported by the host, use the DDM/DOM registers to monitor supply voltage, laser bias, transmit/receive power and temperature for operational visibility.

Recommendations

For optimal performance, use certified multimode MPO/MTP patch cords and maintain proper fiber cleanliness. Ensure the host hardware firmware and drivers support 40G QSFP modules and DDM/DOM functions. Follow ESD handling precautions when installing or removing the transceiver.
