Módulo transceptor de red Lanview MO-C-S85123-3CLM fibra óptica 1000 Mbit/s SFP 850 nm

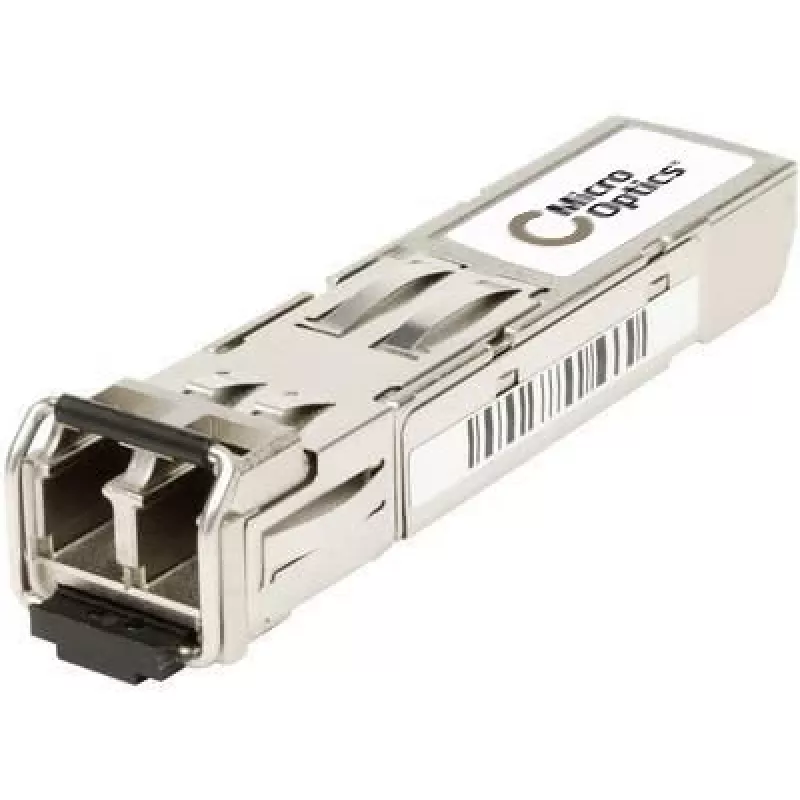

The Lanview MO-C-S85123-3CLM is a MicroOptics SFP fiber optic transceiver module designed for 1 Gbit/s links. It supports an 850 nm wavelength and follows MSA specifications to ensure interoperability with compatible switches and routers, including a range of Cisco equipment. The module has a compact form factor (13.4 mm width, 56.5 mm depth, 8.5 mm height) suitable for dense networking environments.

Advantages

The module provides a standard SFP interface with a maximum data transfer rate of 1000 Mbit/s and MSA certification for reliable interoperability. Its compact dimensions allow installation in space-constrained chassis, while the 850 nm wavelength supports multimode fiber connections commonly used in short-reach applications.

Suitable for

• 1 Gbit/s multimode fiber links
• Network switches and routers with SFP ports
• Short-reach campus and data center connections

Key specifications

• Brand: MicroOptics
• Model / MPN: MO-C-S85123-3CLM
• Interface type: SFP
• Maximum data transfer rate: 1000 Mbit/s
• Wavelength: 850 nm
• Form factor (W×D×H): 13.4 mm × 56.5 mm × 8.5 mm
• EAN: 5711045396571

How to use

Insert the SFP transceiver into an available SFP port on a compatible switch or router until it seats firmly. Connect a suitable multimode fiber cable terminated with the appropriate connector for 850 nm operation. Ensure the host device supports the module model or compatible SFPs; verify link status and configure network settings as required by your equipment.

Recommendations

Use multimode fiber for short-reach connections and confirm compatibility with your switch or router vendor documentation before deployment. Handle the transceiver by its housing, protect fiber endfaces from contamination, and store with dust caps when not in use.
