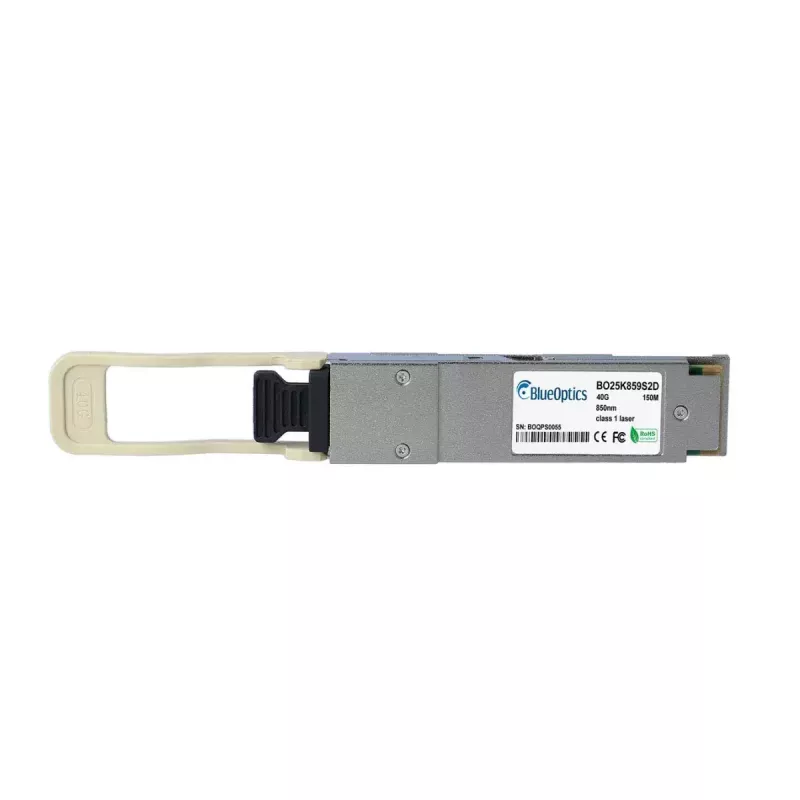

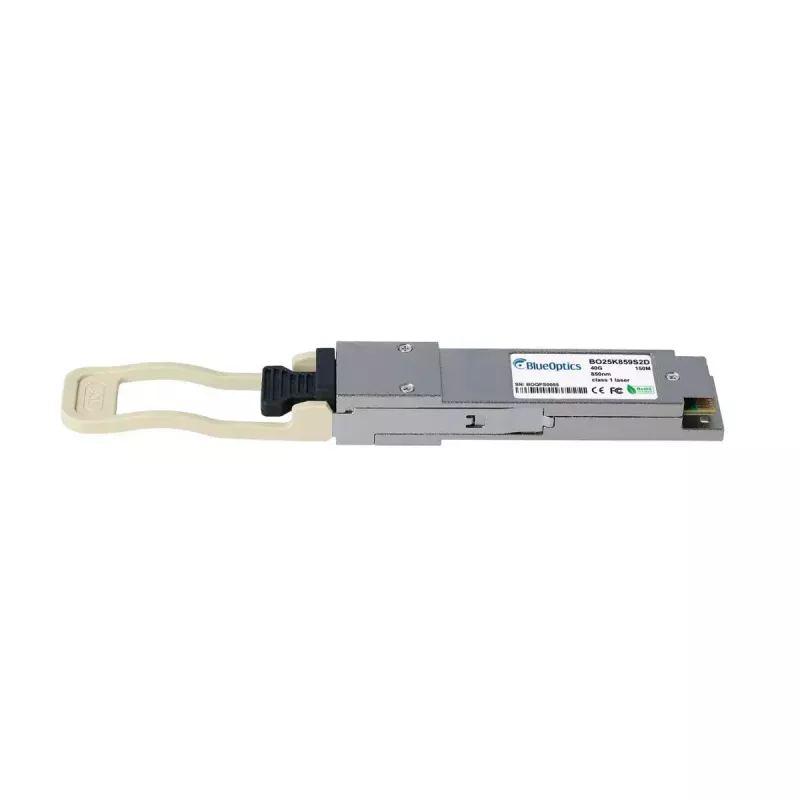

Módulo transceptor de fibra óptica BlueOptics IAC-QSFP-FOT-BO 40000 Mbit/s

The BlueOptics IAC-QSFP-FOT-BO is a fiber optic transceiver module designed for high-speed network connections. It supports a maximum data transfer rate of 40000 Mbit/s, uses a QSFP form factor and an MTP/MPO connector for multi-fiber multimode links. The module is compact and lightweight (approximately 20 g) and is intended for use in network equipment that accepts QSFP optical transceivers.

Advantages

This transceiver provides 40 Gbit/s optical connectivity in a standardized QSFP package with an MTP/MPO interface. Its multimode optical design with 850 nm transmit and receive wavelengths enables short-reach high-bandwidth links typical for data center and campus networks. The product’s small size and low weight simplify handling and installation in compatible ports, while adherence to common form-factor standards supports interoperability with equipment that accepts QSFP MTP/MPO modules.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP transceiver into a compatible QSFP slot on your switch, router or storage device following the host hardware manufacturer’s hot-plug and handling instructions. Connect an MTP/MPO multimode fiber patch cord to the module’s connector, ensuring correct fiber polarity and that the mating connector is clean and free of contamination. Verify that the host device recognizes the transceiver and that link status and optics diagnostics, if supported, indicate normal operation.

Recommendations

For optimal performance, use multimode fiber and MTP/MPO patch cords rated for 40G multimode transmission and maintain clean connector endfaces. Confirm that the network hardware supports QSFP modules and the intended 40G protocol (for example 40GBASE-SR4) before deployment. If available, enable digital diagnostic monitoring on the host device to monitor optical parameters and support troubleshooting.
