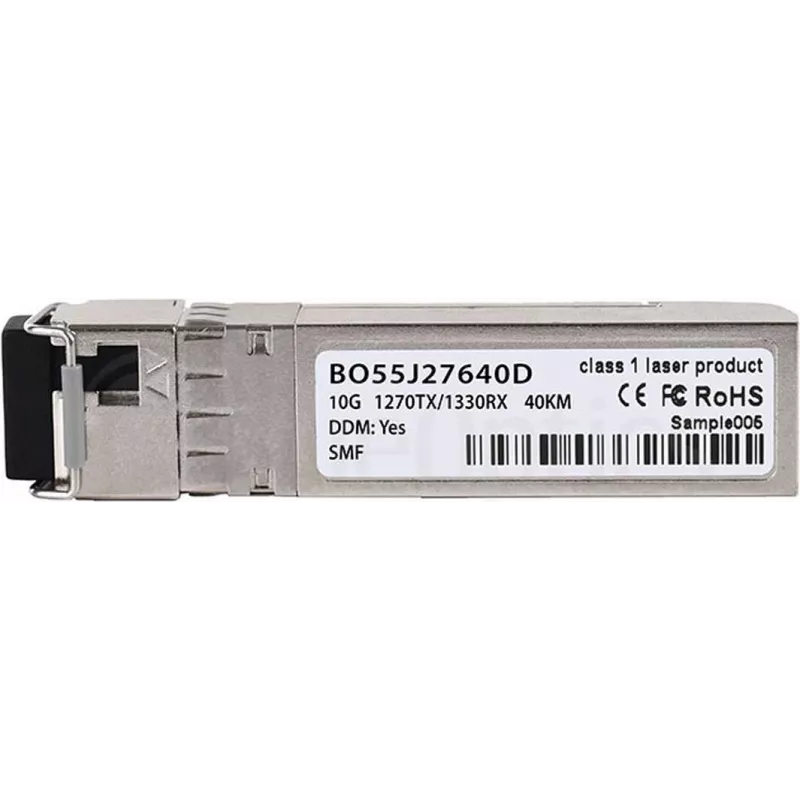

Módulo transceptor de fibra óptica BlueOptics JL739A-BO 10000 Mbit/s SFP+

The BlueOptics JL739A-BO 10000 Mbit/s SFP+ is a fiber optic transceiver module designed for 10 Gbit/s links in standard SFP+ ports. The module follows industry MSA form-factor specifications and offers LC simplex connectivity for single-fiber transmission. It supports 10GBASE-BX-U operation with a separate transmitter and receiver wavelength pair (transmit 1270 nm / receive 1330 nm) suitable for point-to-point fiber links and is compatible with common networking hardware that accepts SFP+ transceivers.

Advantages

The JL739A-BO combines a compact SFP+ form factor with a high data transfer rate of 10000 Mbit/s and a low weight of 20 g, making it space-efficient in dense equipment environments. Compliance with RoHS, FCC and CE ensures adherence to common regulatory and safety standards. A high MTBF value of 3,000,000 hours indicates a design aimed at long-term stable operation in network infrastructures.

Suitable for

• 10 Gbit/s uplinks between switches and routers
• Server-to-switch connections and storage systems requiring SFP+ ports
• Point-to-point fiber links using LC simplex single-fiber runs
• Network equipment platforms that accept MSA-compliant SFP+ transceivers

Key specifications

• Interface type: SFP+
• Max. data transfer rate: 10000 Mbit/s
• Form factor: SFP+ (MSA compliant)
• Connector: LC simplex (single-fiber)
• Transmit wavelength: 1270 nm
• Receive wavelength: 1330 nm
• Product colour: Silver
• Weight: 0.02 kg
• MTBF: 3,000,000 hours
• Regulatory compliance: RoHS, FCC, CE

How to use

Install the BlueOptics JL739A-BO into an available SFP+ port on compatible network equipment until it seats securely; no additional tools are required for insertion. Connect an LC simplex single-fiber cable ensuring the correct orientation for transmit and receive ends according to the labeled wavelengths. Configure the device or switch port for 10G operation if autonegotiation is not available, and verify link status and diagnostics through the host system.

Recommendations

Use this transceiver in equipment that supports MSA-compliant SFP+ modules and verify compatibility with the host platform. Keep connector endfaces clean and protected during handling to maintain optical performance. For stable long-distance single-fiber links, match the transceiver wavelengths with the corresponding remote module and follow the optical power budget recommendations of your network design.
