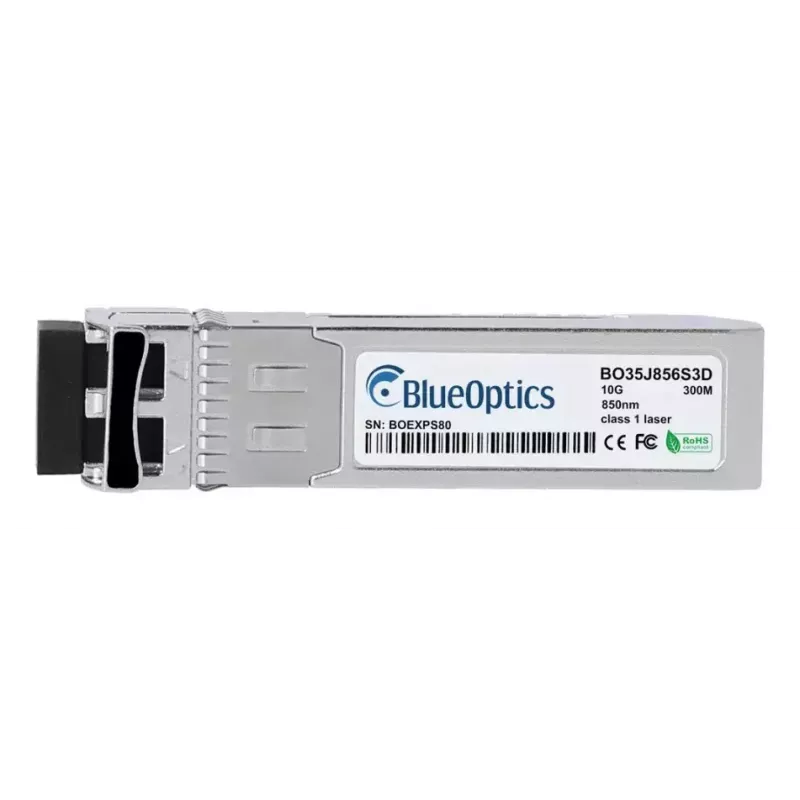

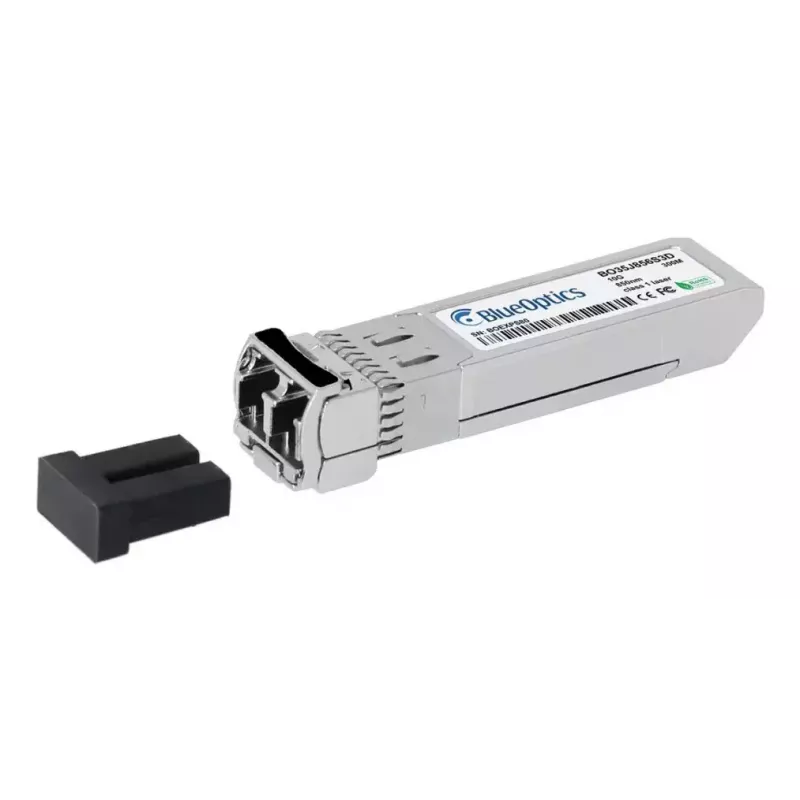

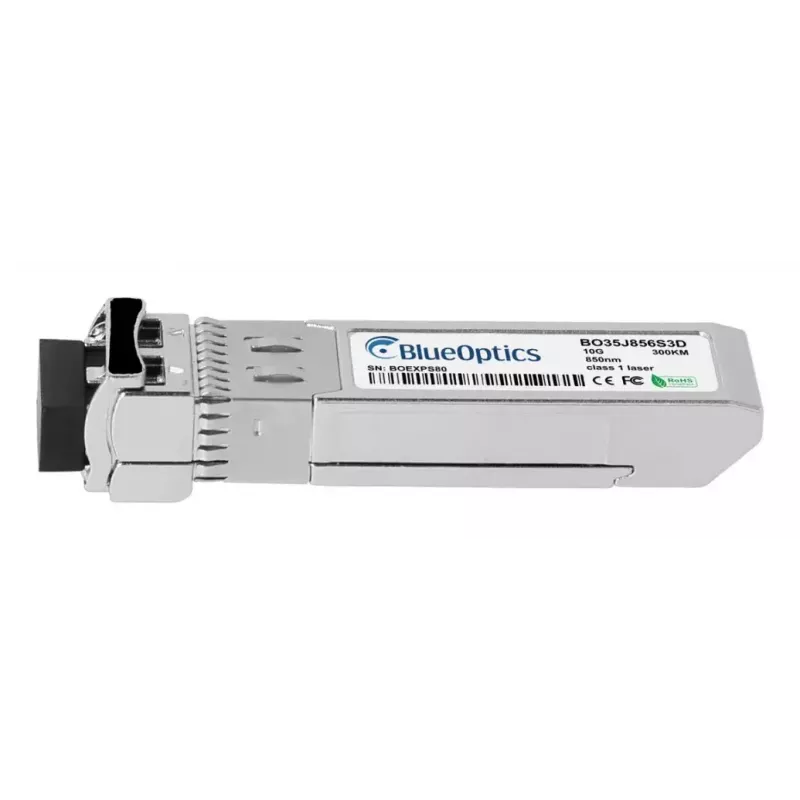

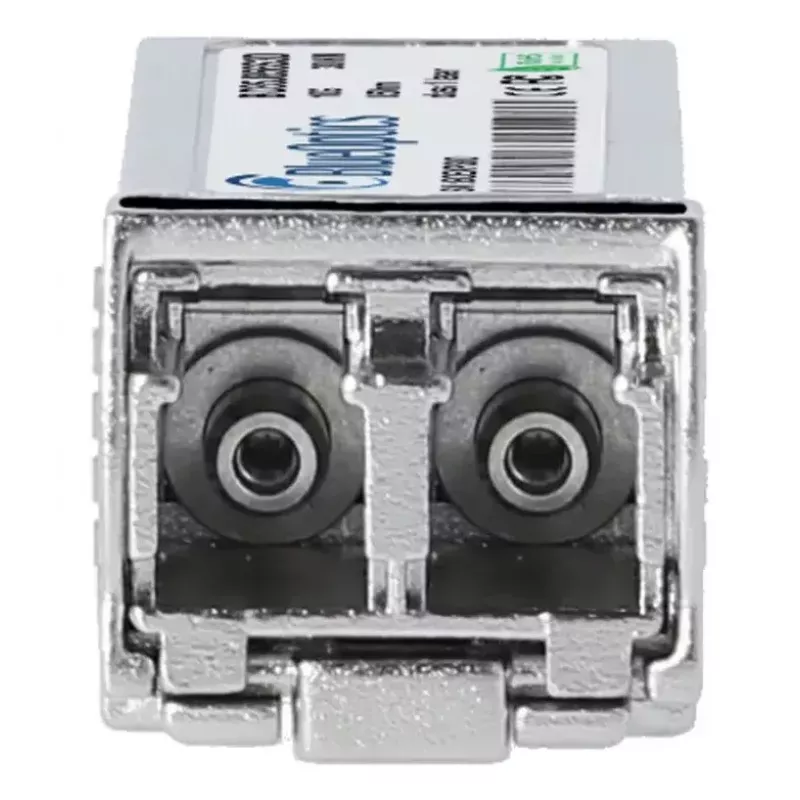

Módulo transceptor de fibra óptica BlueOptics M-SFP-10-SR/LC 10000 Mbit/s SFP+

The BlueOptics M-SFP-10-SR/LC 10000 Mbit/s SFP+ is a compact fiber optic transceiver module designed for high-speed multimode connections. It supports 10 Gbit/s data rates over LC duplex multimode fiber using 850 nm VCSEL optics and follows MSA SFP+ form-factor standards. The module is CE, RoHS and FCC compliant, weighs approximately 20 g and is intended for use in common networking hardware that accepts SFP+ transceivers.

Advantages

The module provides a standardized SFP+ interface for 10GBASE-SR optical links, enabling simultaneous transmit and receive operation over LC duplex multimode fiber. It includes Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time information on supply voltage, laser current, transmit/receive power and temperature. Components are selected to meet MSA compatibility and to support extended service life and high availability in data center and enterprise environments.

Suitable for

Key specifications

How to use

Install the transceiver into an SFP+ slot of a compatible switch, router or server until it clicks into place, then connect LC duplex multimode patch cables to the transmit (TX) and receive (RX) ports. Ensure the host device supports 10GBASE-SR operation and, if required, DDM/DOM reporting is enabled in the management interface to monitor optical parameters. Handle the module and fiber connectors by the housing and avoid touching the optics; use protective dust caps when ports are not connected.

Recommendations

Verify device compatibility and firmware requirements with the hardware vendor prior to installation. Use multimode fiber with appropriate attenuation and patch cords rated for 10 Gbit/s; clean connectors before mating to maintain link quality. For active monitoring, enable DDM/DOM only on platforms that support SFF-8472 to access real-time diagnostic data.
