Módulo transceptor de fibra óptica BlueOptics RDH10272/16-BO 100000 Mbit/s QSFP28

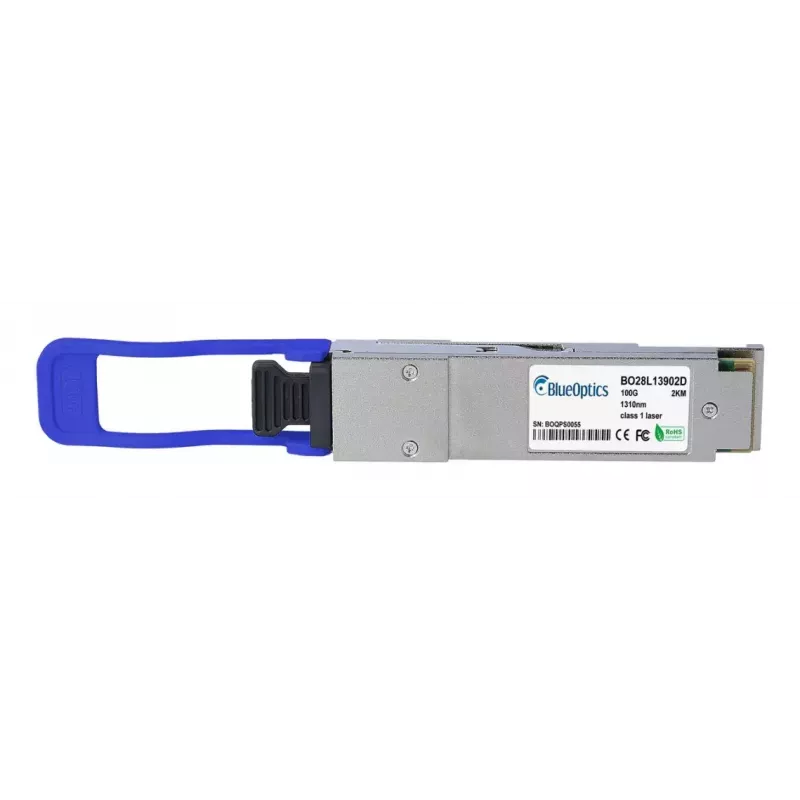

The BlueOptics RDH10272/16-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100 Gbit/s) optical links. It uses an MPO/MTP connection and conforms to MSA standards, offering duplex transmit and receive functions with CWDM for multimode fiber transmission. The module is silver, weighs approximately 0.04 kg and is CE, FCC and RoHS compliant. With an MTBF of 3,000,000 hours, it is intended for high-availability networking applications and is tested for compatibility with common hardware platforms that support the 100GBASE-PSM4 QSFP28 form factor.

Advantages

The transceiver provides high-speed 100 Gbit/s throughput with MPO/MTP connectivity and CWDM-enabled transmit/receive channels, enabling compact multi-fiber connections. Built to MSA standards and using selected components, it offers broad platform compatibility and consistent digital diagnostics support for remote monitoring. The module’s compliance certifications and long MTBF contribute to predictable operation and reduced maintenance needs in data center and carrier environments.

Suitable for

Key specifications

How to use

Install the BlueOptics RDH10272/16-BO into a compatible QSFP28 port on switches, routers or other networking devices following the host device documentation for hot-pluggable transceivers. Connect an MPO/MTP fiber patch cable to the module’s MPO/MTP interface, ensuring correct polarity and secure connections. Verify that the host platform supports 100GBASE-PSM4 and, where required, enable or verify Digital Diagnostics Monitoring (DDM/DOM) support to monitor real-time parameters such as optical power, supply voltage and temperature. Use compatible patch panels or direct fiber connections as appropriate for link length and topology.

Recommendations

For reliable operation, pair the transceiver with MPO/MTP multi-fiber patch cables and systems that support the 100GBASE-PSM4 specification. Confirm host compatibility and DDM support before deployment. Maintain clean fiber connectors and follow standard fiber handling procedures to preserve optical performance and lifetime.
