Módulo transceptor de fibra óptica BlueOptics SFP-BX1550-E-ZZBD01F-BO LC aluminio 20g

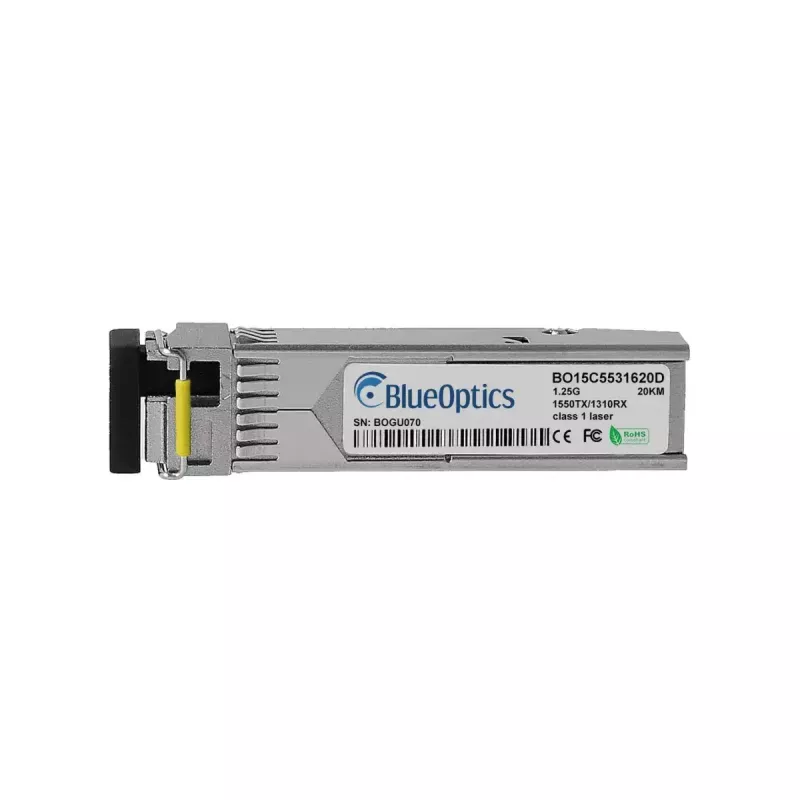

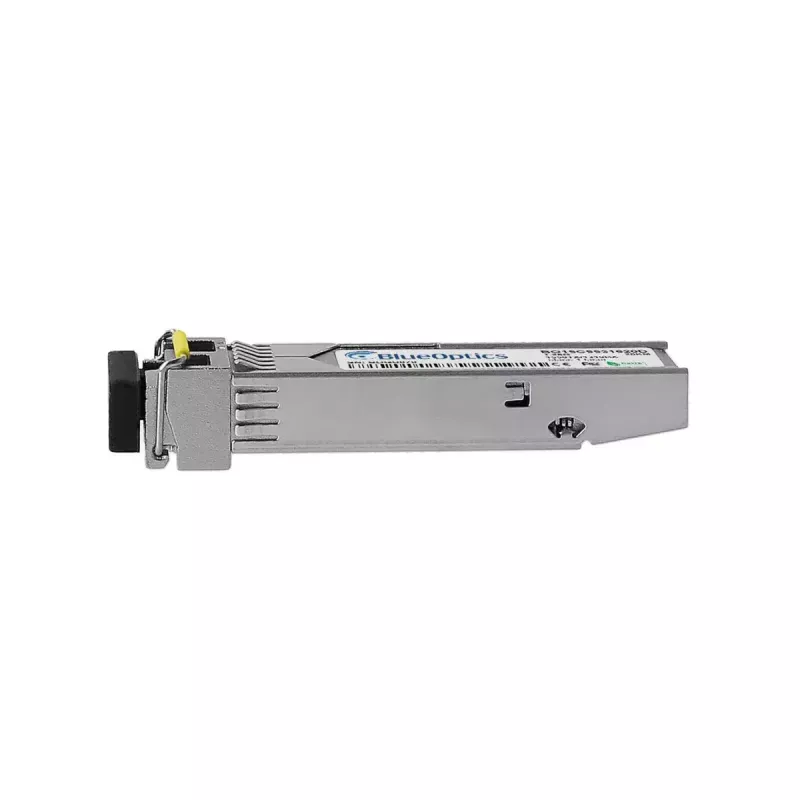

The BlueOptics SFP-BX1550-E-ZZBD01F-BO LC Aluminium 20g is a single-mode fiber optic transceiver module with an SFP interface and LC connector intended for high-speed optical links. It implements a bidirectional 1000BASE-BX-D signaling scheme with separate wavelengths for transmit and receive, designed to support standard Ethernet and related high-speed applications over single-mode fiber. The module is compact and lightweight, with an aluminium housing and a low mass suitable for dense networking environments.

Advantages

This transceiver follows MSA-compliant SFP mechanical and electrical standards to provide interoperability with compatible networking equipment that supports the corresponding 1000BASE-BX-D profile. It supports bidirectional single-fiber operation using distinct transmit and receive wavelengths and is supplied in a lightweight aluminium enclosure for straightforward installation. Modules from this line undergo compatibility testing and are manufactured using industry-grade optoelectronic components to deliver stable optical performance and extended service life.

Suitable for

Key specifications

How to use

Insert the SFP module into a compatible SFP port on the network device until it latches; ensure the device is powered and configured to accept third-party SFP modules or the corresponding 1000BASE-BX-D profile. Connect an LC simplex single-mode patch cable between transceivers, taking care to match the correct transmit and receive ends when establishing a single-fiber bidirectional link. Verify link status through the host device LEDs or management interface and, if available, enable digital diagnostic monitoring (DDM/DOM) features on supported hardware to monitor optical parameters in real time.

Recommendations

Handle the LC connector and transceiver faceplate with care to avoid contamination; use dust caps when the module is not connected. Confirm that the receiving device supports 1000BASE-BX-D operation and, where applicable, enable any vendor-specific settings required for third-party transceivers. For optimal link performance, use single-mode fiber and appropriate patch cables, and perform optical power and loss measurements during installation.
