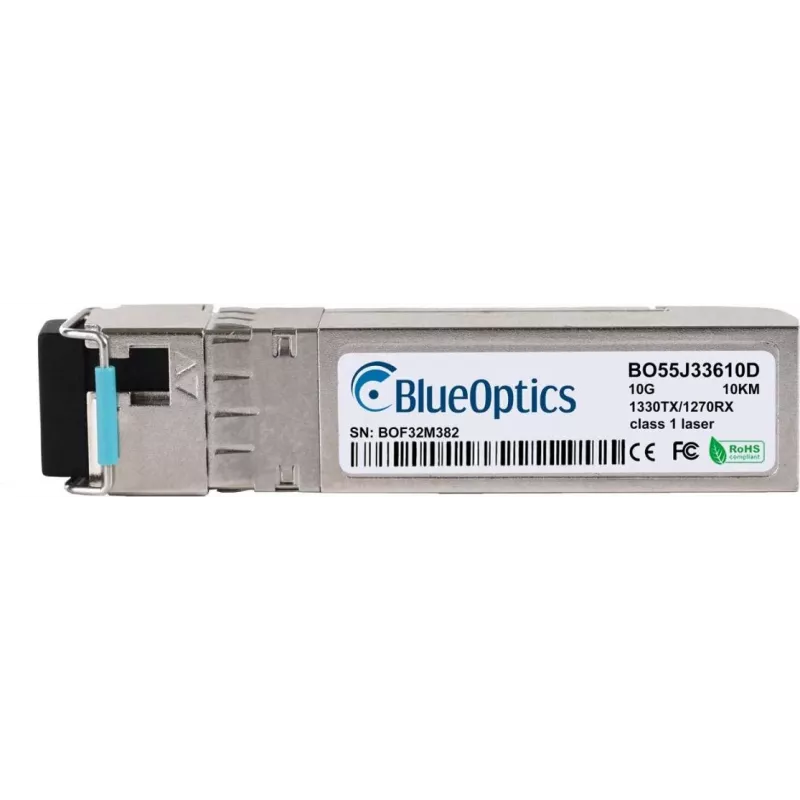

Módulo transceptor de fibra óptica BlueOptics SFP-XG-LX-SM1330-BIDI-BO

BlueOptics compatible H3C SFP-XG-LX-SM1330-BIDI 10GBASE-BX-D SFP+ is a single-mode, bidirectional 10 Gbps transceiver with LC simplex connector (MSA-compliant). It transmits at 1270 nm and receives at 1330 nm, supporting data links up to 10 km. The module is suitable for use in H3C platforms and other hardware that accept the original H3C SFP-XG-LX-SM1330-BIDI 10GBASE-BX-D SFP+, and supports Ethernet, Fibre Channel over Ethernet and SDH/SONET applications at up to 10 Gbps.

Advantages

The BlueOptics H3C SFP-XG-LX-SM1330-BIDI compatible transceiver is manufactured to MSA standards and tested for compatibility with corresponding H3C hardware and software requirements. It uses high-quality components such as proven lasers and integrated circuits from established suppliers, which contributes to long operational life and reliable performance. The module also provides digital diagnostics (DDM/DOM) for real-time monitoring of voltage, bias current, output power, received power and temperature.

Key specifications

How to use

Install the transceiver into the SFP+ slot of a compatible H3C device or other supported hardware following the vendor’s hot-swap procedures. Connect an LC simplex single-mode fiber patch cord to the module, ensuring correct orientation for bidirectional operation (one fiber carries transmit and receive on different wavelengths). Verify that the host device supports DDM/DOM if you intend to monitor diagnostics. After physical connection, check link status and configure network settings as required by your equipment.

Recommendations

Use quality single-mode LC simplex patch cords and, where possible, patch panels or direct transceiver-to-transceiver connections to achieve optimal range and signal quality. Confirm device compatibility with the original H3C SFP-XG-LX-SM1330-BIDI 10GBASE-BX-D specification and request a sample or test unit before wide deployment to validate interoperability in your environment.
