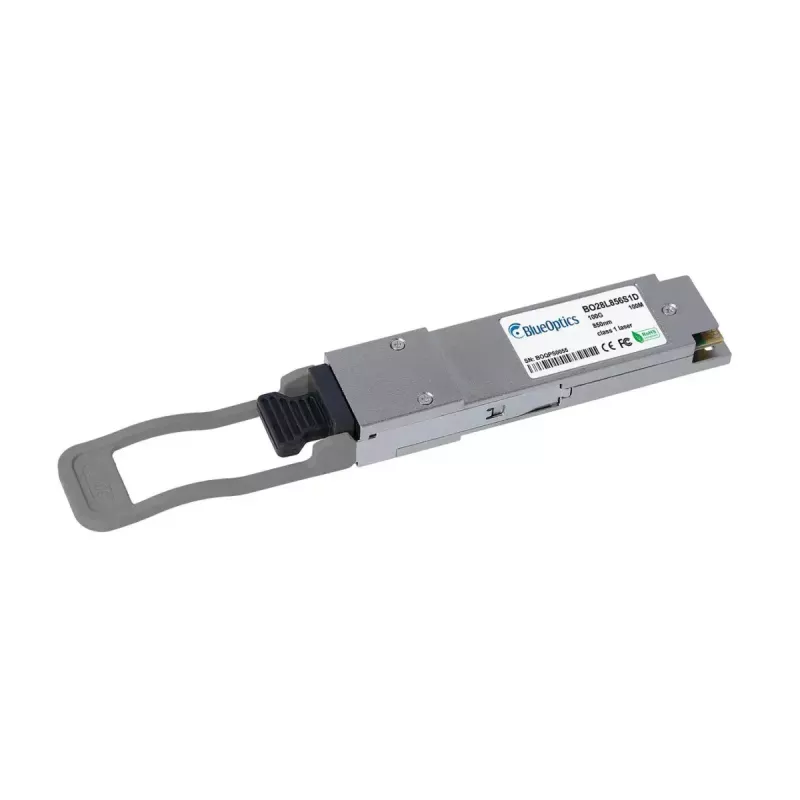

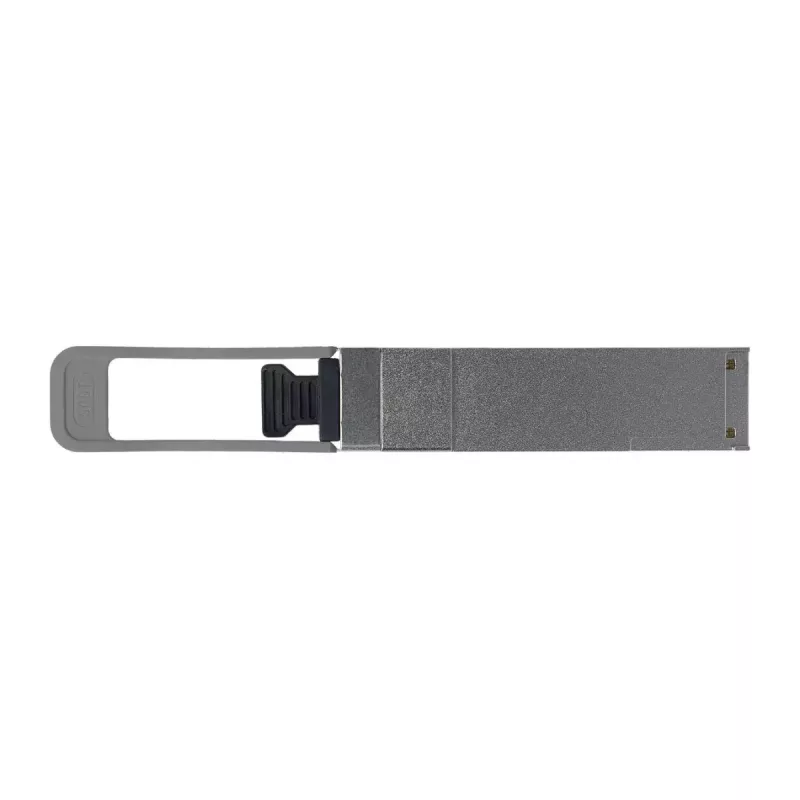

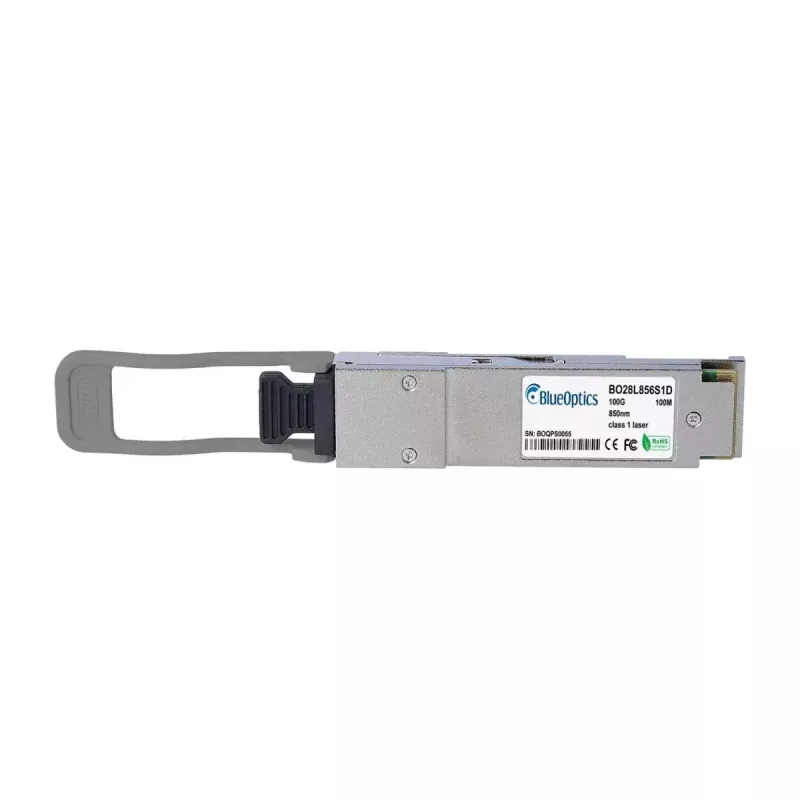

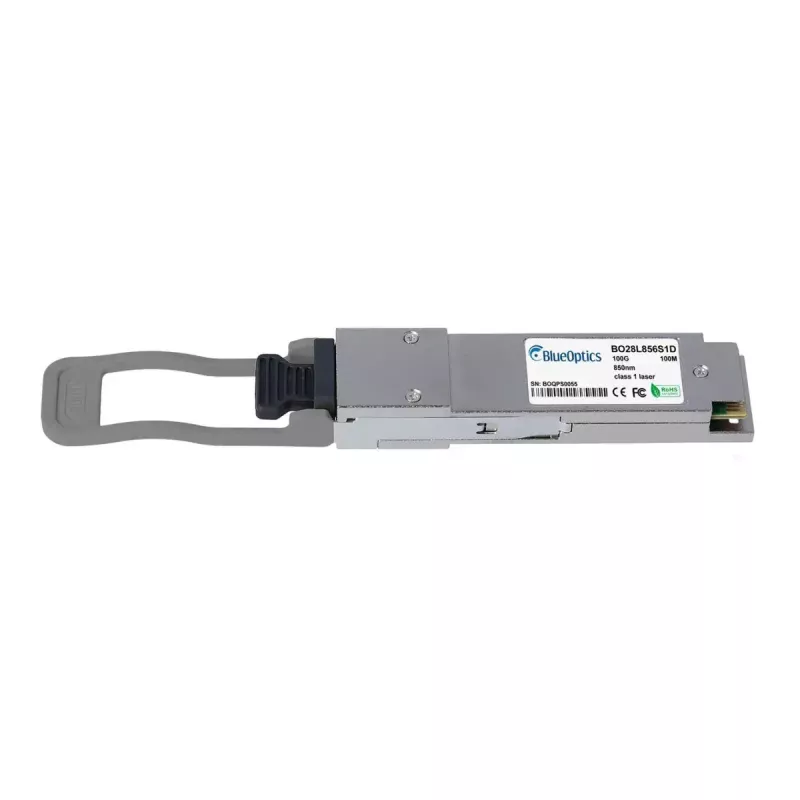

Módulo transceptor QSFP28 BlueOptics QSFP28-BIDI-100G-SR2-HU-BO conector de fibra óptica LC

The BlueOptics QSFP28-BIDI-100G-SR2-HU-BO is a 100 Gigabit Ethernet fiber optic transceiver module with a QSFP28 form factor and LC duplex connector. Designed for multimode fiber links, it supports 100GBASE-SR2 signaling with a maximum transfer distance of up to 100 m and a compact, lightweight aluminium housing of approximately 40 g. The module implements bidirectional optical transmission using separate transmit and receive wavelengths and follows MSA-compliant QSFP28 specifications to ensure interoperability with compatible networking equipment.

Advantages

This QSFP28 transceiver provides high-density 100 Gb/s connectivity in a compact QSFP28 package, enabling efficient use of switch and router ports. It offers reduced electromagnetic interference inherent to fiber links, integrated digital diagnostics for real-time monitoring, and is manufactured using quality components to support long operational life and high availability in data center and enterprise network environments.

Suitable for

Key specifications

How to use

Insert the QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network device following the vendor's hot-swap procedure. Use LC duplex multimode fiber patch cords to connect to the remote transceiver, ensuring correct polarity for bidirectional operation. Verify link status and use the module's digital diagnostics interface (if supported by the host) to monitor supply voltage, laser bias current, transmit/receive power and temperature. Ensure the host device firmware or driver supports third-party QSFP28 modules if required.

Recommendations

For optimal performance, use high-quality multimode fiber and LC patch cords, maintain clean connector end-faces, and verify that the host hardware supports DDM/DOM to take advantage of real-time diagnostics. Match fiber type (OM3/OM4) and cable plan to achieve the specified 100 m reach and follow equipment vendor guidelines for compatibility and firmware settings.
