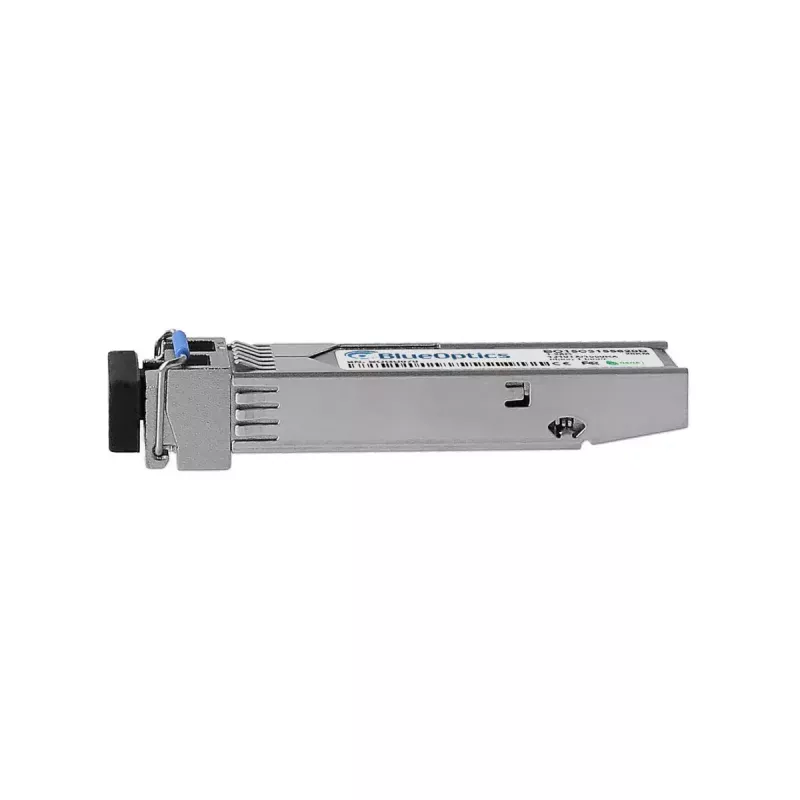

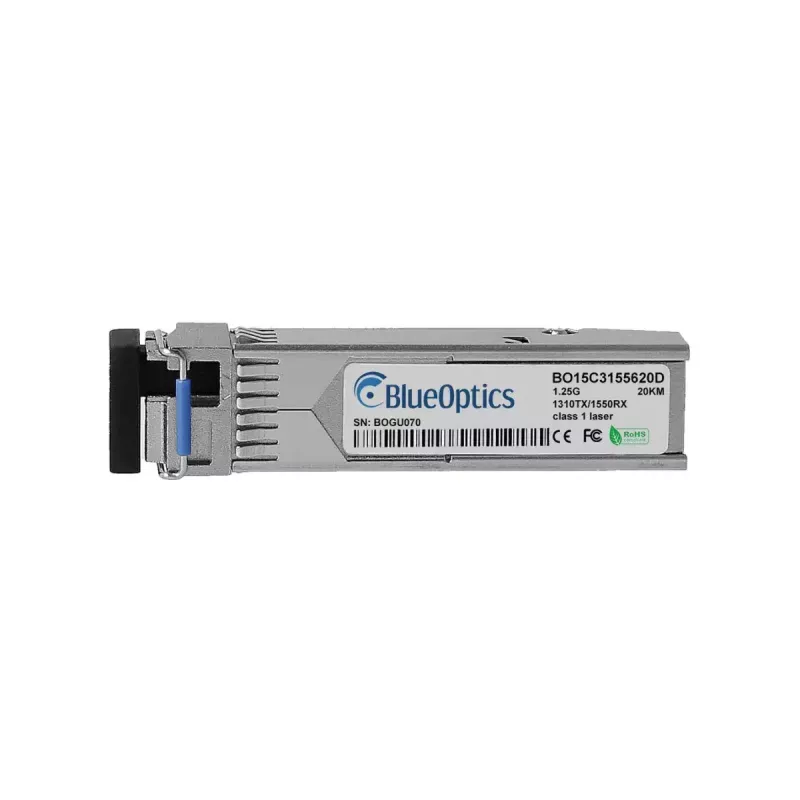

Módulo transceptor SFP BlueOptics 100-01666-BO 1250 Mbit/s fibra óptica

The BlueOptics 100-01666-BO is an SFP fiber optic transceiver module designed for network links with a maximum data transfer rate of 1250 Mbit/s. Housed in a compact silver SFP form factor and weighing just 20 g, this module provides a standard-compliant interface for inserting into compatible SFP ports. The unit is designed for long service life with an MTBF of 1,000,000 hours and conforms to CE, FCC and RoHS directives.

Advantages

The module's SFP form factor offers hot-pluggable insertion and straightforward interoperability with network switches, routers and media converters that support standard SFP optics. A 1250 Mbit/s maximum throughput makes it suitable for common fiber links and legacy Gigabit-compatible environments. Its low weight and compact dimensions simplify handling and installation, while regulatory compliance ensures compatibility with safety and environmental requirements.

Suitable for

• Short- and medium-distance fiber optic uplinks and links
• Switch-to-switch and switch-to-router connections with SFP ports
• Replacement or expansion of existing SFP-based network ports
• Integration into media converters and fiber patch panels supporting SFP

Key specifications

• Form factor: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Product colour: Silver
• Weight: 0.02 kg
• Mean Time Between Failures (MTBF): 1,000,000 hours
• Compliance: CE, FCC, RoHS

How to use

Ensure the host device supports standard SFP modules and the required data rate. With the host port powered, insert the BlueOptics SFP module into an empty SFP slot until it locks into place. Connect the appropriate fiber optic patch cable to the module's transceiver interface, observing correct connector type and polarity. Verify link status on the host device and configure network settings as required. To remove, power down the port if recommended by the device manufacturer, release the latch and carefully extract the module.

Recommendations

Use compatible single-mode or multimode fiber and connectors as specified by system documentation; avoid bending or stressing fiber near the connector and keep dust caps on when the module is not connected. For reliable operation, ensure the host equipment firmware supports SFP optics and follow the manufacturer's guidance for hot-plugging and handling.
