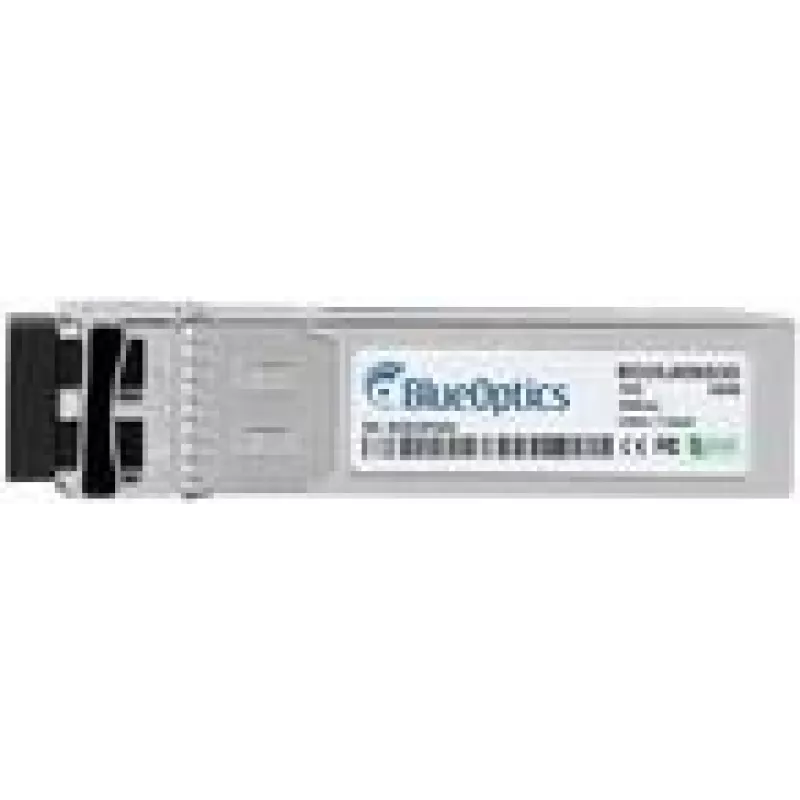

Módulo transceptor SFP BlueOptics 10G-USR-SFP100M-BO 10000 Mbit/s

The BlueOptics 10G-USR-SFP100M-BO is an SFP+ fiber optic transceiver module designed for 10 Gigabit Ethernet connections. With a maximum data transfer rate of 10000 Mbit/s and support for single‑mode or multimode links up to 300 m depending on cabling and optics, this compact silver module fits standard SFP+ slots and provides a low-mass (0.02 kg) option for upgrading network ports to high-speed fiber. The module uses an LC (UPC) fiber connector and offers a rated MTBF of 1,000,000 hours for reliability in continuous operation.

Advantages

This SFP transceiver delivers 10 Gigabit Ethernet performance in an SFP+ form factor, enabling high-speed uplinks and server connections while conserving slot space. Its compact design and low weight simplify installation in switches, routers and media converters. The LC (UPC) connector and silver finish ensure compatibility with common fiber cabling and visual identification in mixed hardware environments. The specified MTBF supports extended operational lifetimes in data center and enterprise networks.

Suitable for

• Upgrading switch or router ports to 10 Gigabit Ethernet over fiber
• Connecting servers or storage to high-speed fiber networks
• Fiber uplinks between network racks or data center equipment within short-reach links (up to 300 m)
• Use in media converters, SFP+ capable NICs and optical modules for network infrastructure

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Maximum transfer distance: up to 300 m (depends on fiber type and transceiver pairing)
• Form factor: SFP+
• Interface type: 10 Gigabit Ethernet
• Fiber connector: LC (UPC)
• Product colour: Silver
• Weight: 0.02 kg
• Rated MTBF: 1,000,000 hours

How to use

Install the BlueOptics SFP+ transceiver into a compatible SFP+ slot on your switch, router or media converter until it seats securely. Connect LC fiber patch cables to the module, observing correct transmit/receive orientation and ensuring clean connectors to minimize loss. After physical installation, verify link status on the host device and configure interface settings such as speed, duplex and any vendor-specific parameters if required. Follow hardware vendor guidance for hot-swap operation where supported.

Recommendations

For reliable performance, use high-quality LC (UPC) patch cables and keep connector endfaces clean. Verify compatibility with the host device's SFP+ slot and firmware; test links after installation and monitor error counters. For runs approaching the maximum distance, confirm fiber type and attenuation to ensure sufficient margin for the 10G link.
