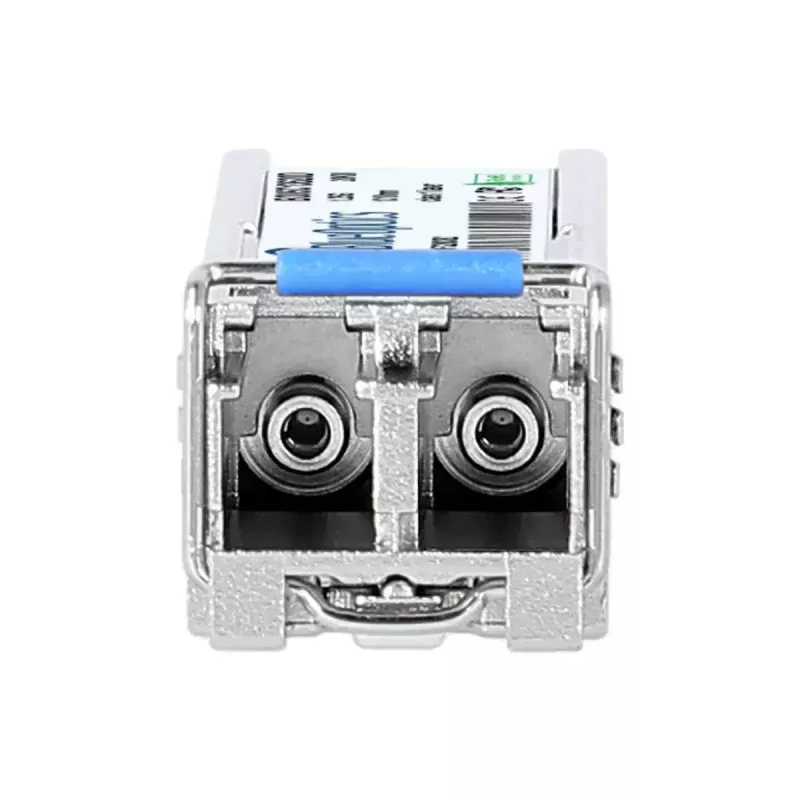

Módulo transceptor SFP BlueOptics 1AB187280029-BO 1250 Mbit/s fibra óptica

The BlueOptics 1AB187280029-BO SFP transceiver module is designed for fiber optic network links requiring a compact, hot-pluggable interface. Supporting up to 1250 Mbit/s data throughput, this SFP module uses an LC (UPC) fiber connector and fits standard SFP ports. Its small metal housing in silver color and low weight make it suitable for use in switches, media converters and other networking equipment where space and compatibility matter. The module is specified with a maximum transfer distance of 20,000 m and an input voltage of 2 V, and offers a mean time between failures (MTBF) of 1,000,000 hours for continuous operation.

Advantages

The module provides reliable fiber connectivity in a compact SFP form factor compatible with 1.25 Gigabit Ethernet interfaces. Low weight and a metal housing contribute to easy installation and mechanical stability. An LC (UPC) connector ensures a commonly used termination type for single-mode fiber links, and the specified MTBF supports long-term deployment in network infrastructures. With a maximum reach of 20 km, the transceiver covers common access and distribution span requirements.

Suitable for

• Point-to-point fiber links between switches and routers
• Network equipment requiring hot-pluggable SFP modules
• Media converters and small form-factor networking devices
• Single-mode fiber runs up to 20 km

Key specifications

• Maximum data transfer rate: 1250 Mbit/s
• Interface type: 1.25 Gigabit Ethernet (SFP form factor)
• Fiber connector: LC (UPC)
• Maximum transfer distance: 20,000 m
• Operating input voltage: 2 V
• Dimensions (W×D×H): 13.9 mm × 58.4 mm × 12.6 mm
• Weight: 0.03 kg
• Product color: Silver
• Reliability (MTBF): 1,000,000 hours

How to use

Install the BlueOptics SFP transceiver by inserting it into an empty SFP port on compatible network equipment until it latches. Connect a single-mode fiber cable with LC (UPC) connectors to the module’s port, ensuring proper end-face cleanliness and correct polarity. Power the hosting device and verify link status through the device’s management interface or indicator LEDs. For removal, unlatch and pull the module straight out of the port while the host device is powered down or following the manufacturer’s hot-swap procedure.

Recommendations

Use this SFP transceiver with compatible single-mode fiber cabling and equipment that supports 1.25 Gigabit Ethernet SFP modules. Clean connectors before mating, avoid excessive bending of the fiber, and ensure the module is handled in static-safe conditions. Verify compatibility with your device firmware and consult equipment documentation for supported vendor modules if required.
