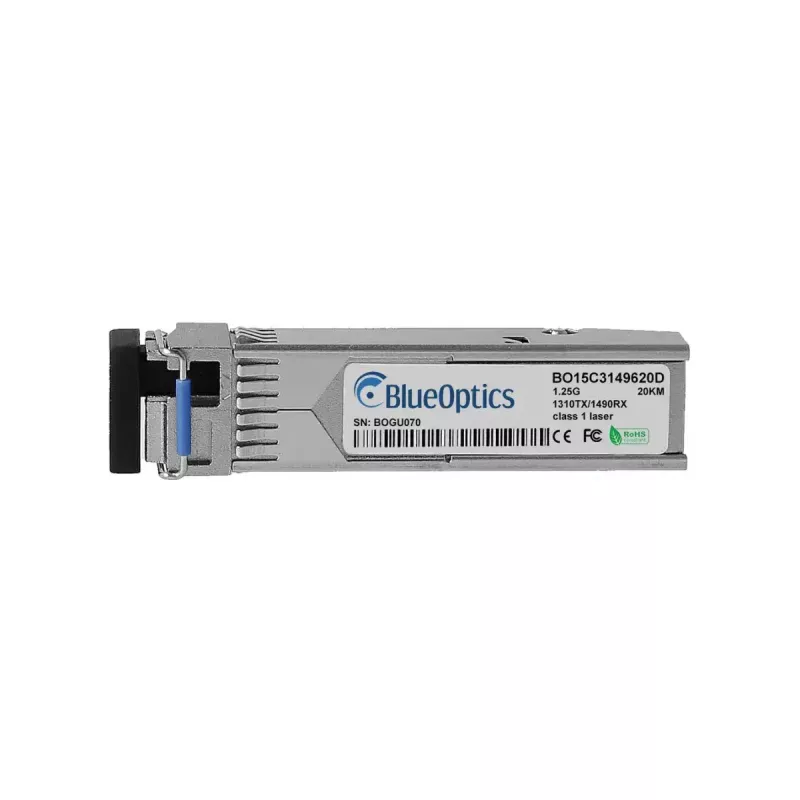

Módulo transceptor SFP BlueOptics 2315285-BO 1250 Mbit/s fibra óptica

The BlueOptics 2315285-BO is an SFP fiber optic transceiver module designed for use in networking equipment that supports 1.25 Gigabit Ethernet. The module supports a maximum data transfer rate of 1250 Mbit/s and a single-fibre maximum transfer distance of up to 20,000 m, enabling long-reach optical links. The compact SFP form factor and LC fiber optic connector make it compatible with a wide range of switches, routers and media converters. The module is finished in silver and has a lightweight construction at approximately 20 g, with an MTBF (mean time between failures) rated at 1,000,000 hours to support continuous operation.

Advantages

The BlueOptics SFP module provides a standardized SFP form factor that simplifies installation in compatible equipment and reduces inventory complexity. Its LC connector and support for 1.25 Gigabit Ethernet ensure straightforward integration into fiber networks. The long maximum transfer distance supports applications requiring extended reach without intermediate repeaters or amplifiers. With a rated MTBF of 1,000,000 hours and a lightweight, compact design, the module is suitable for dense rack environments and minimizes physical space and weight constraints.

Suitable for

• Long-reach fiber links between network sites or buildings
• Upgrading switches and media converters to support 1.25 Gigabit Ethernet
• Server room and data center fiber uplinks requiring SFP modules
• Replacing or expanding LC-terminated fiber connections in LAN and MAN environments

Key specifications

• Form factor: SFP
• Maximum data transfer rate: 1250 Mbit/s
• Maximum transfer distance: 20,000 m
• Ethernet interface type: 1.25 Gigabit Ethernet
• Fiber optic connector: LC
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Power down the host device or follow hot-swap procedures specified by the equipment manufacturer before inserting the SFP module into an available SFP cage. Align the module carefully and push it into the slot until it seats and the retention mechanism engages. Connect LC-terminated fiber patch cables to the module's LC connector, ensuring correct transmit/receive orientation and using appropriate single-mode or multimode fiber as required by the network design. Verify link status through the host device interface and monitor for proper negotiation at 1.25 Gbps where supported.

Recommendations

Use clean, undamaged LC fiber connectors and follow industry-standard fiber handling practices to maintain signal quality. Verify compatibility with the host device for SFP-supported data rates and optical link budgets, and consult fiber specifications when planning links approaching the maximum transfer distance.
