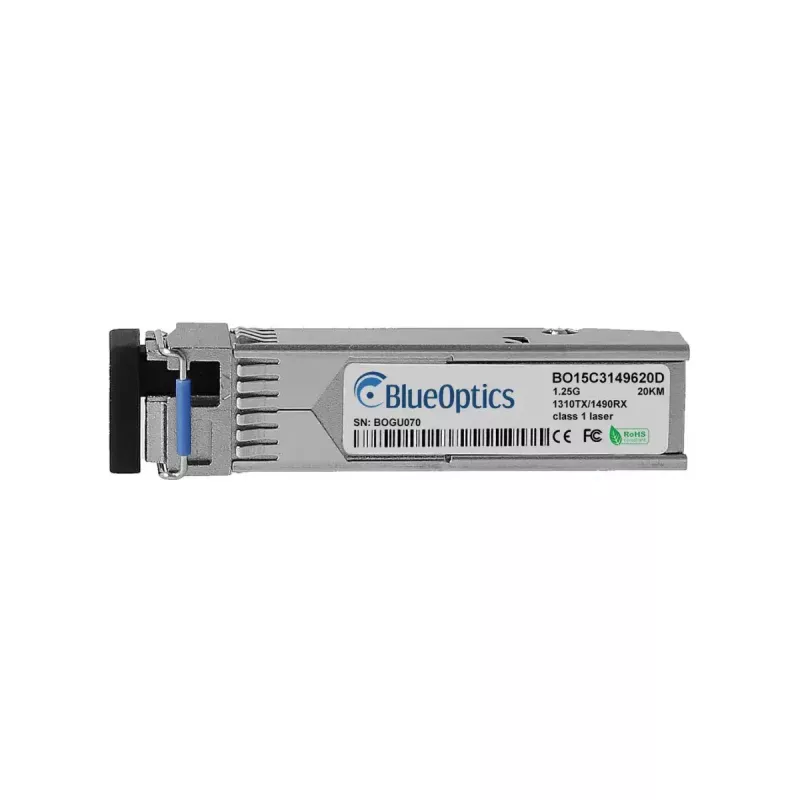

Módulo transceptor SFP BlueOptics AA1419069-E6-BO 1250 Mbit/s fibra óptica

The BlueOptics AA1419069-E6-BO is a fiber optic SFP transceiver module designed for single-port network equipment that requires a compact, hot-pluggable optical interface. Supporting a maximum data transfer rate of 1250 Mbit/s and supplied in a silver SFP form factor, this module provides a standard-compliant optical connection for switches, routers and media converters. It has a reported mean time between failures (MTBF) of 1,000,000 hours and meets CE, FCC and RoHS regulatory requirements.

Advantages

The module combines a small SFP form factor with fiber optic transmission to offer low-latency, electrically isolated links suitable for short- to medium-range optical runs. Its hot-pluggable design allows insertion and removal without powering down the host device, and the low 20 g weight simplifies handling and installation. Compliance with CE, FCC and RoHS ensures the component meets common safety, emissions and environmental standards.

Suitable for

• Single-port uplinks on switches and routers
• Fiber connections between network closets and patch panels
• Media converters converting copper to fiber links
• Small office and enterprise access networks requiring 1250 Mbit/s optical links

Key specifications

• Form factor: SFP
• Maximum data transfer rate: 1250 Mbit/s
• Product colour: Silver
• Weight: 0.02 kg
• MTBF: 1,000,000 hours
• Standards compliance: CE, FCC, RoHS

How to use

Ensure the host device supports SFP fiber transceivers and that the firmware allows the intended module type. With the host powered on or off according to the device manual, align the SFP module with the SFP cage and insert it until the latch engages. Connect the appropriate fiber optic cable to the module’s optical interface, observing proper connector type and polarity. Monitor the host device’s link/activity indicators and configuration interface to verify the link is established at the expected data rate.

Recommendations

Store and handle the transceiver in a clean, dust-free environment; use dust caps on unused optical ports and avoid touching the fiber connector endface. For reliable operation, match optical connector types and use compatible fiber cabling. Follow the host manufacturer’s guidance for supported modules and firmware compatibility.
