Módulo transceptor SFP BlueOptics AT-SPBD20-13-EXT-BO 1250 Mbit/s

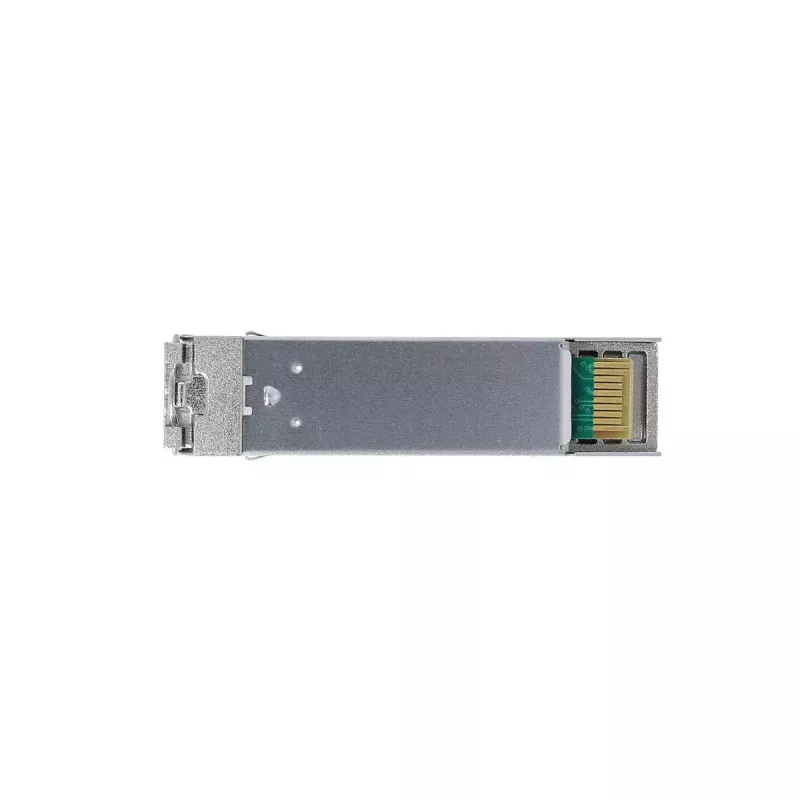

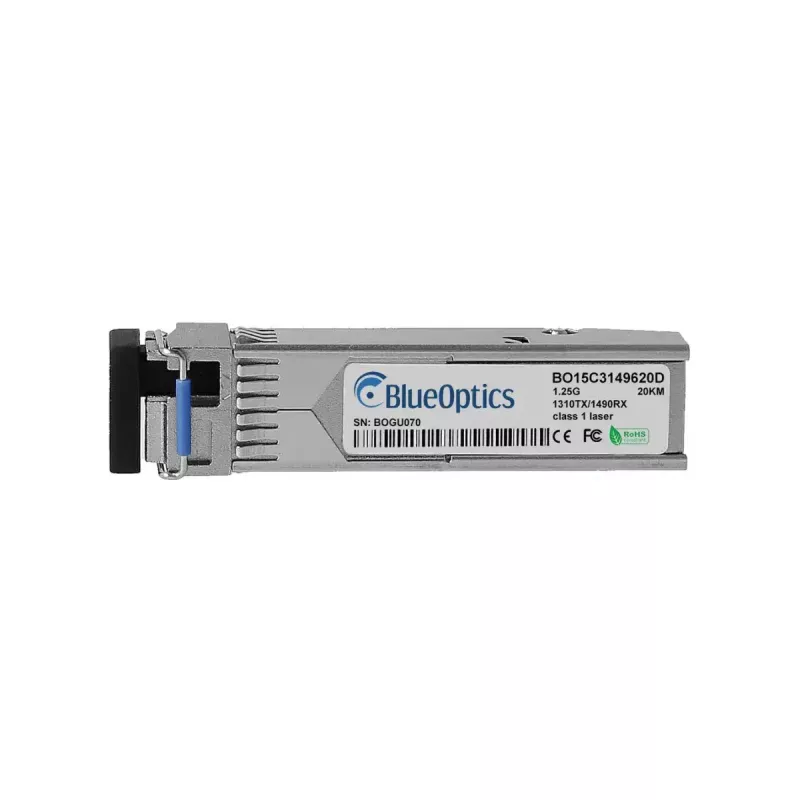

The BlueOptics AT-SPBD20-13-EXT-BO 1250 Mbit/s SFP transceiver module is designed for single‑channel fiber optic links in compact SFP form factor. It supports a maximum data transfer rate of 1250 Mbit/s and is equipped with an LC (UPC) fiber connector. The module is finished in silver, weighs approximately 20 g and offers a high mean time between failures (MTBF) suitable for continuous network operation. Its small size and standard SFP interface make it compatible with a wide range of switches, routers and media converters that accept SFP transceivers.

Advantages

The module provides a consistent 1250 Mbit/s link speed over multimode or singlemode fiber depending on the specific optical specifications and supports transmission distances up to 20,000 m. Its compact SFP housing simplifies installation in stacked or space-constrained equipment while the LC (UPC) connector ensures reliable physical connection. With an MTBF of 1,000,000 hours, the transceiver is designed for dependable long-term operation and minimal maintenance.

Suitable for

Key specifications

How to use

Power down or follow hot‑swap procedures of the host device, align the SFP transceiver with the SFP slot and insert it until it clicks into place. Connect the LC (UPC) fiber cable to the transceiver, making sure connectors are clean and free of dust. Configure the host device's interface settings as required for 1.25 Gbit/s operation and verify link status and diagnostics via the switch or router management interface. If applicable, observe any vendor compatibility settings or firmware requirements for third‑party transceivers.

Recommendations

Before insertion, always inspect and clean fiber connectors with appropriate cleaning tools to prevent signal loss. When planning links, verify fiber type and link budget to ensure reliable operation up to 20 km. Store unused transceivers and dust caps in anti‑static packaging and avoid exposure to extreme temperatures or humidity during installation.
