Módulo transceptor SFP BlueOptics H-BR20-SFP+D-BO 10000 Mbit/s

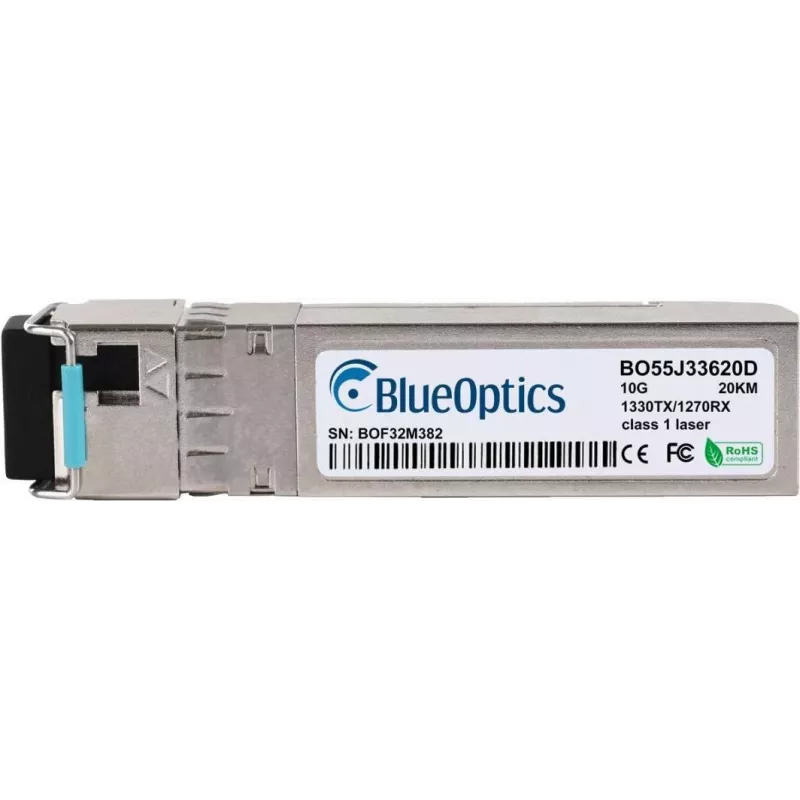

The BlueOptics H-BR20-SFP+D-BO is a 10 Gbit/s SFP+ fiber optic transceiver module designed for high-speed optical data transmission. Housed in a metal casing and operating at 3.3 V, the module provides LC Simplex connectivity and supports 10GBASE-BX-D single-fiber bidirectional (WDM) operation with a transmitter wavelength of 1330 nm and a receiver wavelength of 1270 nm. The module is compatible with MSA standards and is suitable for insertion in common network hardware platforms that accept SFP+ modules.

Advantages

The transceiver offers a compact SFP+ form factor with a metal housing for mechanical stability and heat dissipation, a 10 000 Mbit/s data rate for low-latency, high-throughput links, and lightweight construction (approx. 20 g). It supports Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time monitoring of supply voltage, laser current, optical transmit/receive power and temperature. Components are selected to meet MSA interoperability and to provide long operational life and high availability.

Suitable for

Key specifications

How to use

Insert the transceiver into a compatible SFP+ slot on your network device while the device is powered according to the manufacturer's guidelines. Connect an LC Simplex single-fiber patch cable matching the module's WDM orientation to establish a link to the remote transceiver. Ensure that the remote end uses the complementary BX direction (one end set to 1330 nm transmit / 1270 nm receive, the other end reversed) for correct bidirectional operation. Verify link status and, if supported by your hardware, read DDM/DOM parameters to confirm proper optical power levels and temperature.

Recommendations

Use compatible LC Simplex fiber patch cables and confirm that the host device supports SFP+ modules and DDM/DOM features. Follow ESD handling practices when installing the module and avoid bending the fiber beyond the recommended minimum radius. For long-term reliability, operate within the voltage and temperature ranges specified by your network equipment vendor and periodically check diagnostic parameters to detect degradations early.
