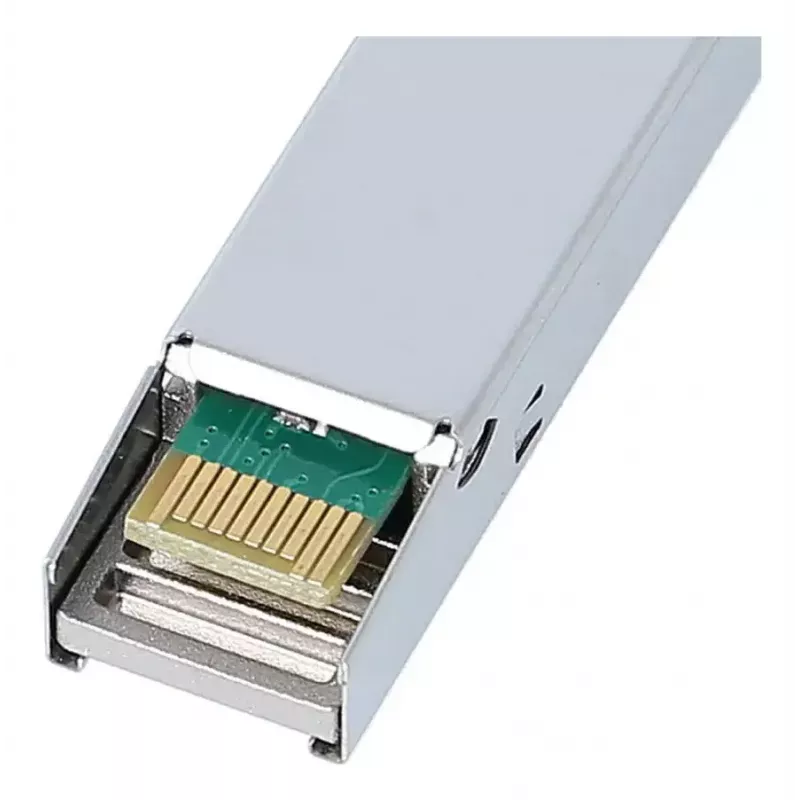

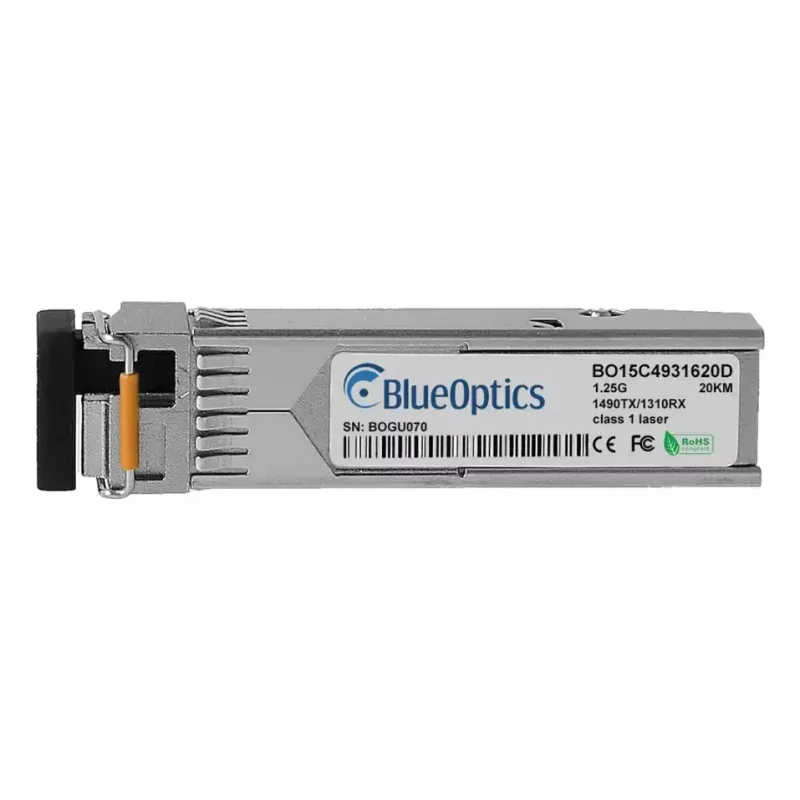

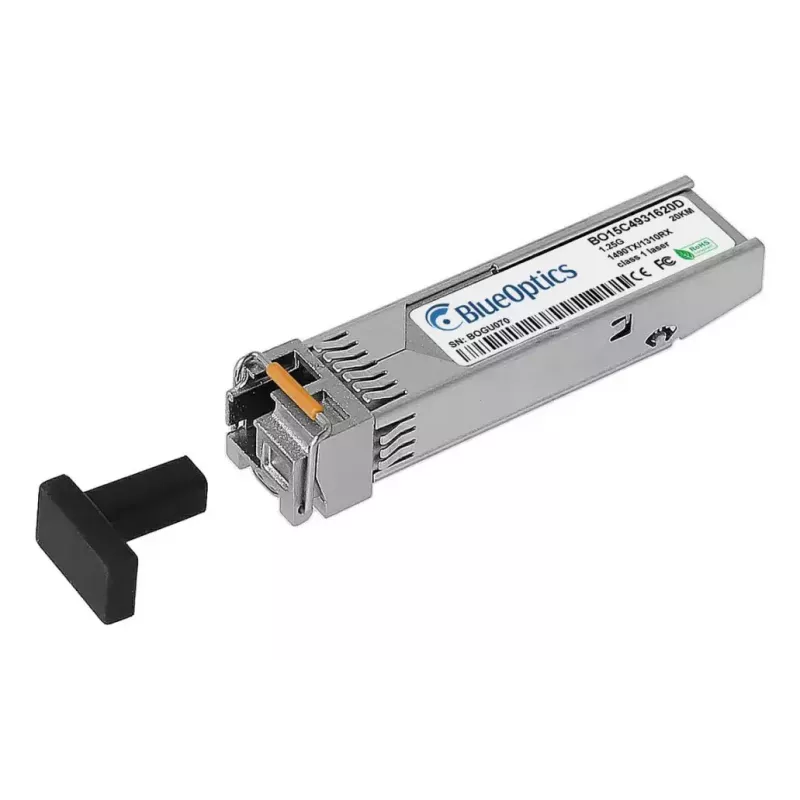

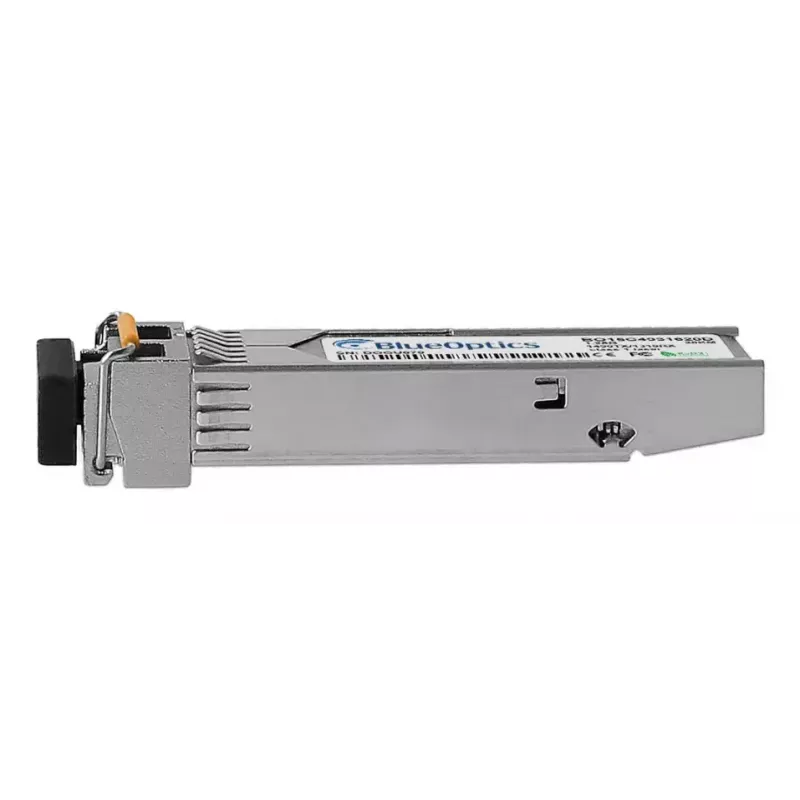

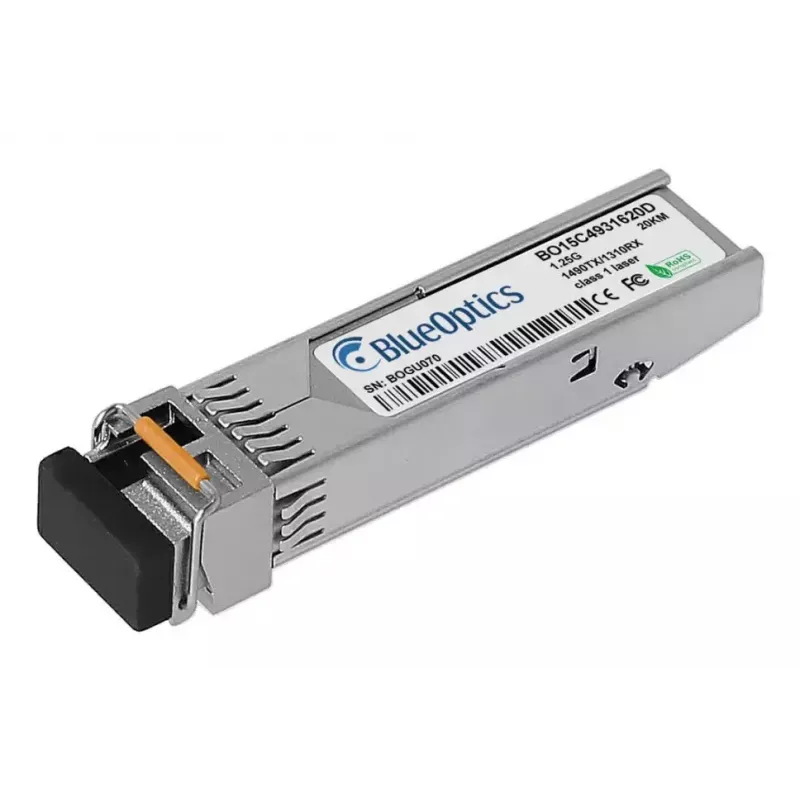

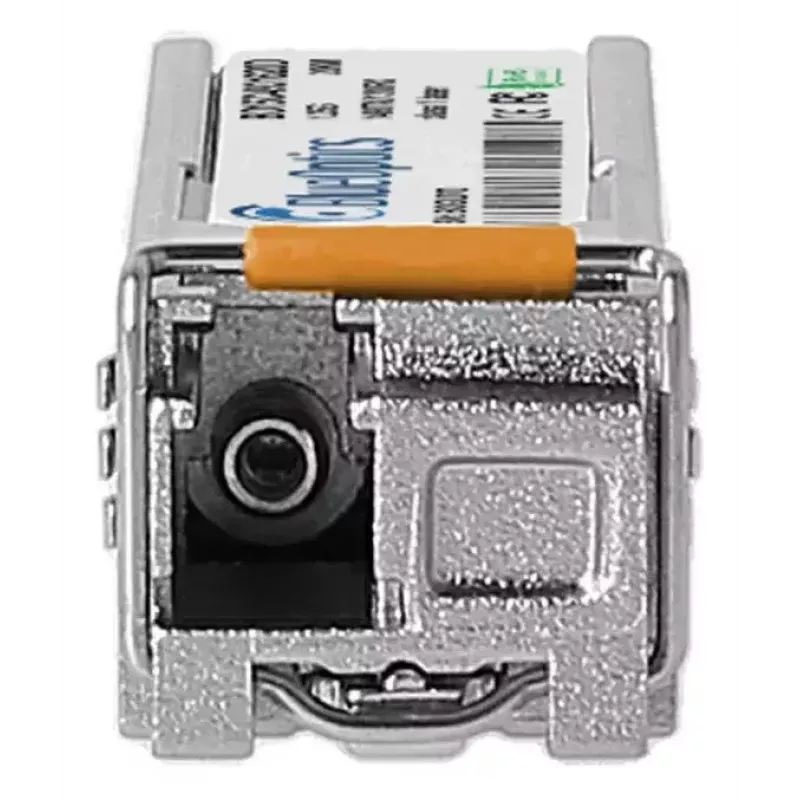

Módulo transceptor SFP BlueOptics H-BX10-SFP/I-D-BO 1250 Mbit/s

The BlueOptics H-BX10-SFP/I-D-BO is a single-mode SFP transceiver module designed for optical data links with a maximum transfer rate of 1250 Mbit/s. It uses LC simplex connectivity and a metal housing, and supports 1000BASE-BX-D operation with separate transmitter and receiver wavelengths suitable for long-distance single-mode fiber links. The module is compatible with MSA-compliant SFP ports and follows CE, RoHS and FCC conformity. Its compact SFP form factor and 20 g weight make it suitable for installation in switches, routers and other networking equipment that accept standard SFP transceivers.

Advantages

The module provides reliable single-mode fiber transmission up to typical 20 km range using 1310 nm transmit and 1490 nm receive wavelengths and supports Ethernet, Fibre Channel over Ethernet and SDH/SONET protocols at up to 1.25 Gbit/s. Built to MSA dimensions with a metal housing, it offers mechanical compatibility and electromagnetic shielding. Digital Diagnostic Monitoring (DDM/DOM) is supported when the host device provides the interface, enabling real-time monitoring of supply voltage, temperature, laser bias current and optical power for simplified maintenance and troubleshooting.

Suitable for

Key specifications

How to use

Insert the transceiver module into a compatible SFP slot following the host device manufacturer’s hot-swap instructions. Connect a single-mode LC simplex patch cable between this transceiver and the corresponding remote transceiver, observing correct transmit/receive orientation. Configure the host interface according to network requirements and verify link status via the device management interface. If DDM/DOM is required, enable and check diagnostics through the host system to monitor optical power, temperature and other parameters.

Recommendations

Use quality single-mode fiber and appropriate LC patch cords to achieve the specified reach. Verify that the target hardware supports the 1000BASE-BX-D profile and DDM if diagnostics are needed. Avoid exposing the optical interface to dust and always cap unused connectors. For critical links, perform a link test and monitor DDM values to ensure sufficient optical budget and stable operation.
