Cable de red DeLOCK M12 A-codificado 8 polos macho a macho PUR (TPU) 5 m

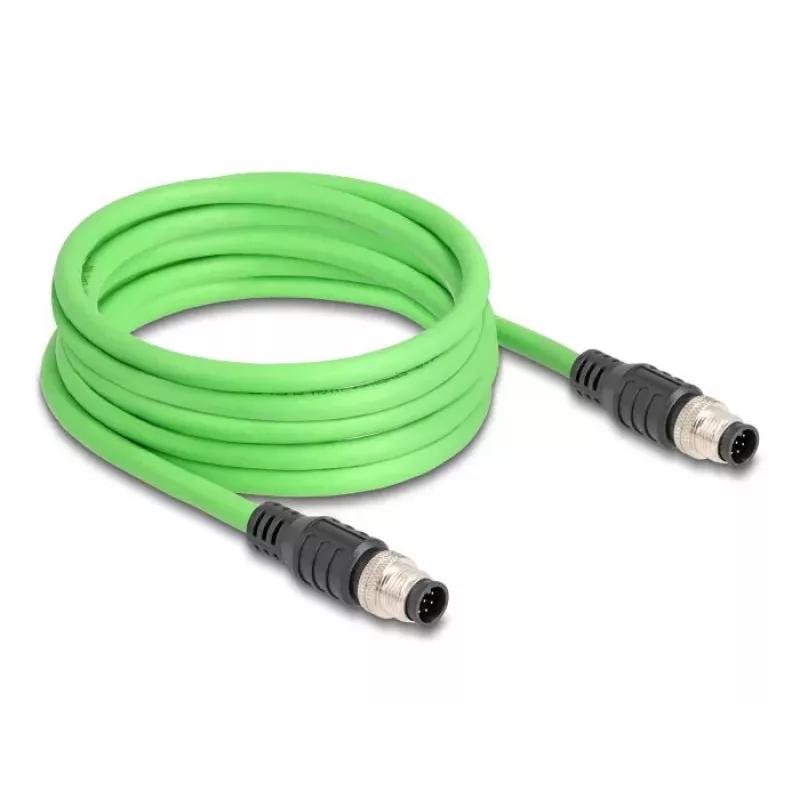

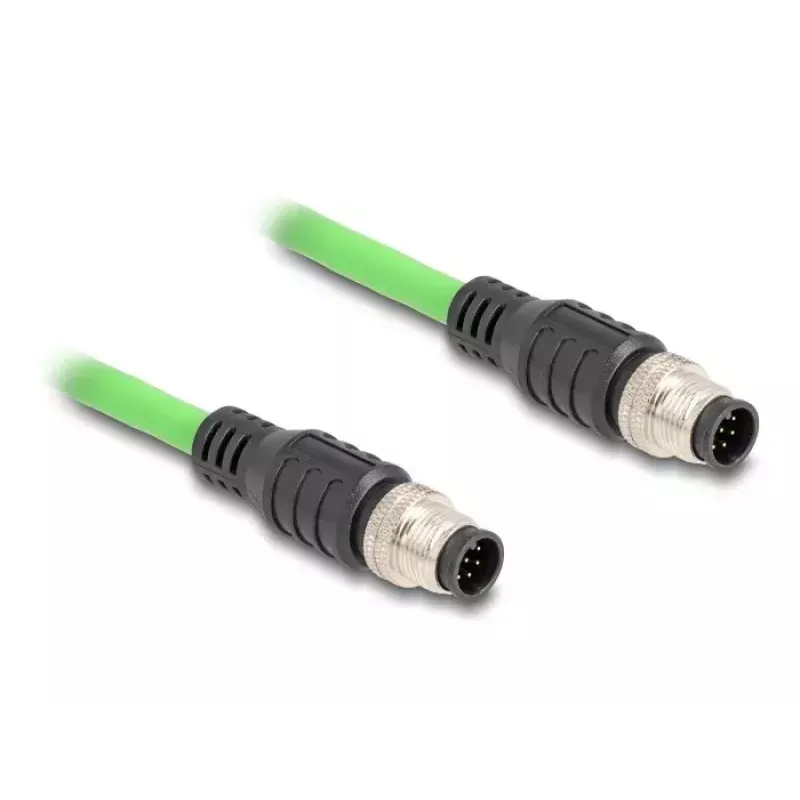

The Network Cable DeLOCK M12 Cable A-coded 8 pin male to male PUR (TPU) 5 m is an industrial Ethernet cable for connecting devices with M12 A-coded connectors. It features eight pins, a male-to-male configuration and a 5 m length. The cable sheath is made of polyurethane (PUR/TPU) and the product is suitable for demanding industrial environments.

Advantages

The cable supports up to 10 million bending cycles, making it suitable for continuous motion applications such as drag chains. The PUR (TPU) jacket provides oil and UV resistance and increased abrasion resistance. The A-coded M12 8-pin male-to-male configuration ensures compatibility with standard M12 industrial Ethernet ports and reliable signal transmission.

Suitable for

• Machine control and automation systems
• Industrial Ethernet connections with M12 A-coded 8-pin ports
• Drag chains and dynamic cable runs
• Environments requiring oil- and UV-resistant cabling

Key specifications

• Brand: DELOCK
• Model / MPN: 80414
• EAN: 4043619804146
• Cable length: 5 m

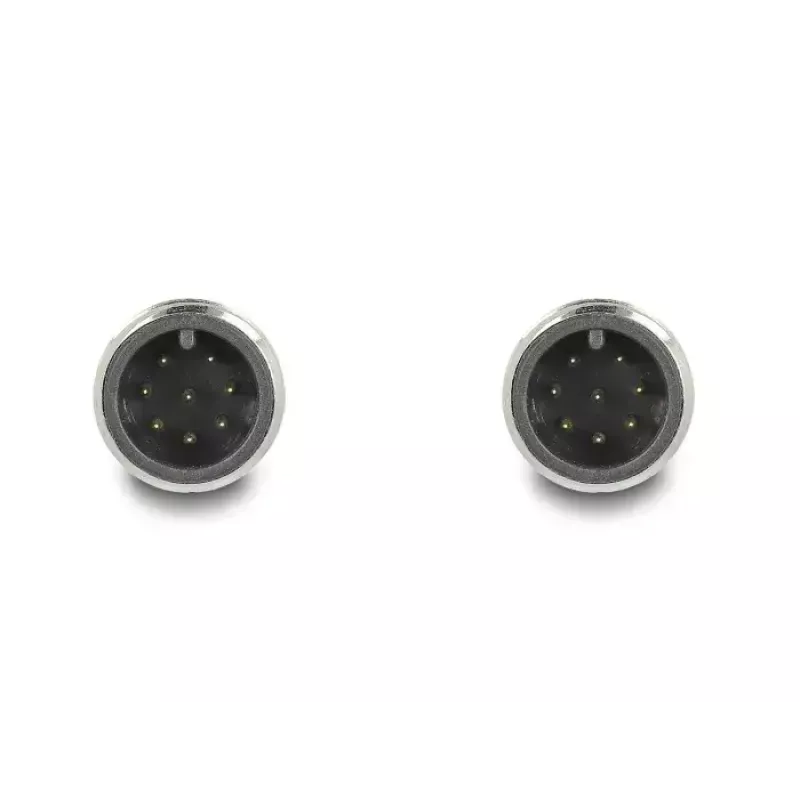

• Connector: M12 A-coded 8 pin, male to male
• Jacket material: PUR (TPU), oil- and UV-resistant
• Drag chain suitability: up to 10 million bending cycles
• Application: Industrial Ethernet

How to use

Connect one M12 A-coded male connector to the corresponding M12 A-coded 8-pin female port on a device and connect the other male end to the corresponding port on the second device. Route the cable according to installation requirements, avoiding sharp edges and excessive torsion. For drag chain installation, ensure the cable bend radius and mounting arrangement meet the application's mechanical specifications.

Recommendations

Use the cable within specified environmental limits and secure connectors to prevent strain. Inspect the jacket periodically for wear when used in continuous motion or harsh environments; replace if damage is detected.
