Módulo transceptor SFP BlueOptics NX-7500-SFPPL-SX-BO 10000 Mbit/s

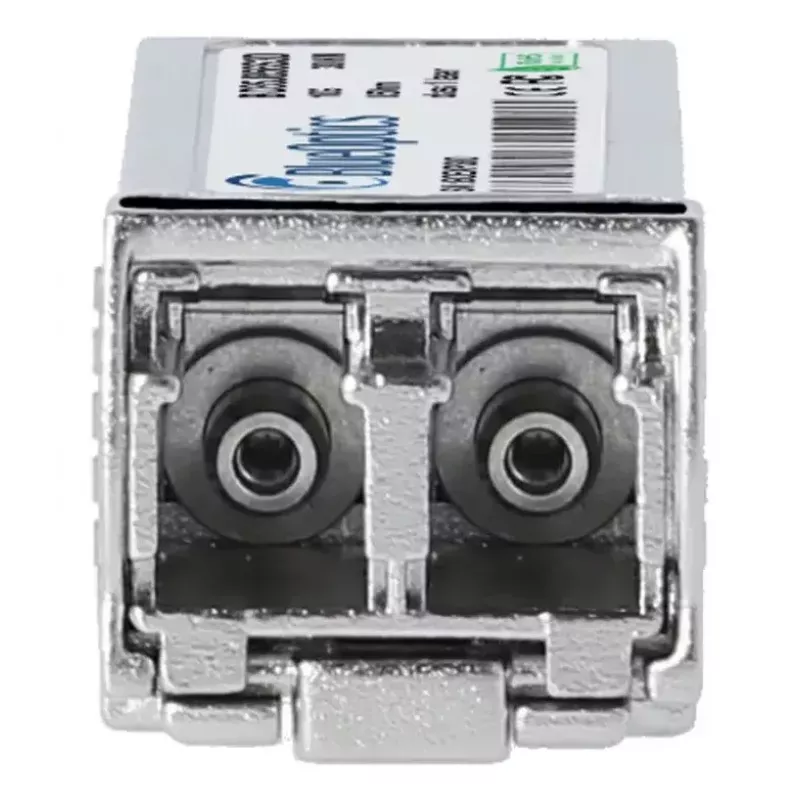

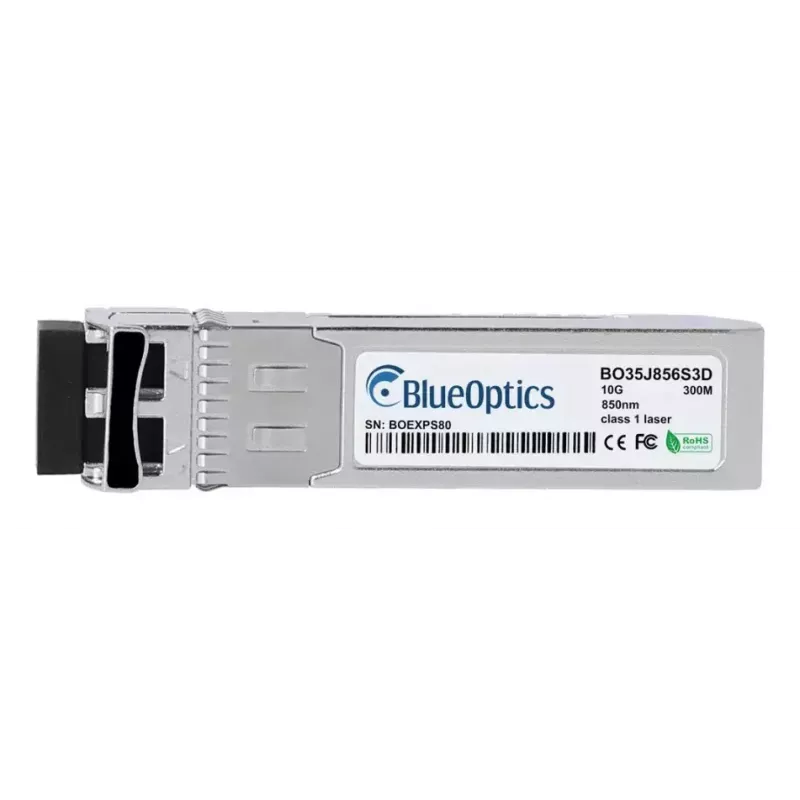

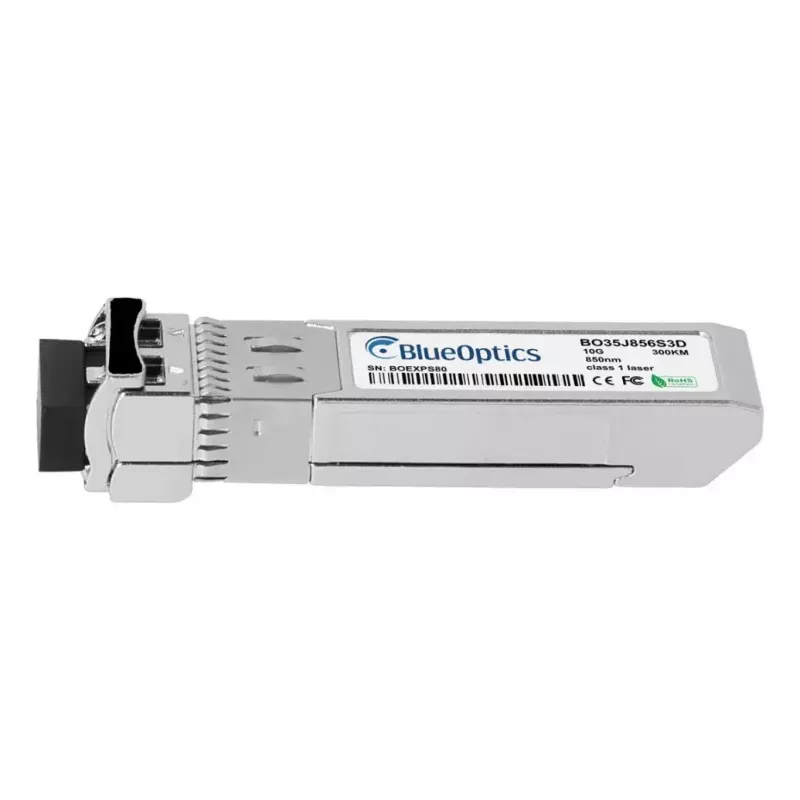

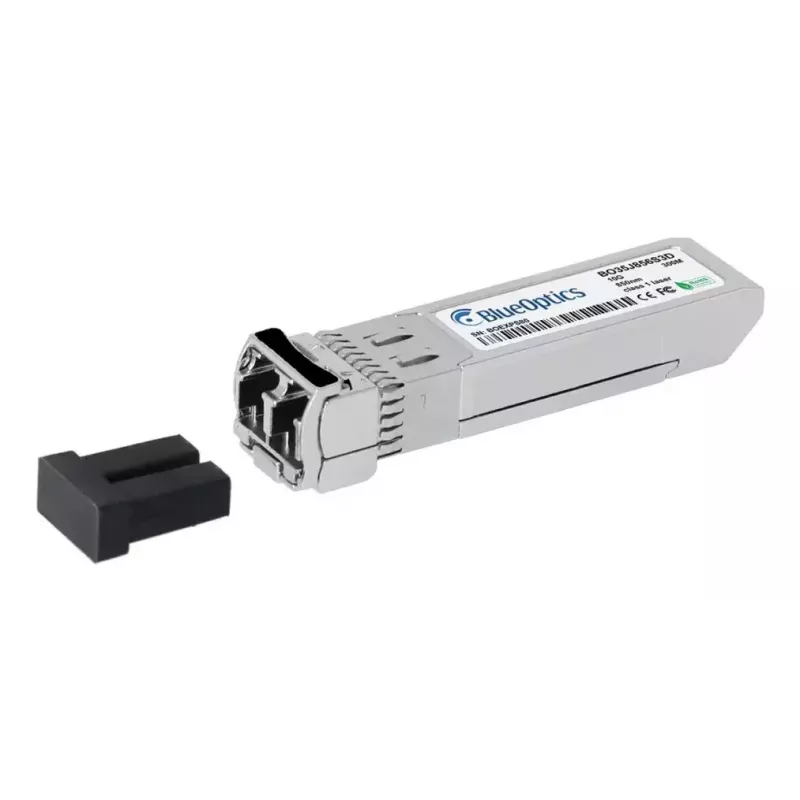

The BlueOptics NX-7500-SFPPL-SX-BO is an SFP+ transceiver module engineered for high-speed multimode fiber links. It supports a maximum data transfer rate of 10000 Mbit/s and uses an LC Duplex connector in SFP+ form factor. The module operates with 850 nm transmit and receive wavelengths for 10GBASE-SR class short-range optical transmission and is housed in a silver-coloured casing. It is compliant with CE, RoHS and FCC standards and designed for reliable insertion into common networking hardware that accepts MSA-compliant SFP+ transceivers.

Advantages

This module provides 10 Gbit/s optical connectivity in a compact SFP+ form factor, enabling high-density port deployments and easy hot-swap replacement. Built to MSA standards, it is compatible with a wide range of switches, routers and storage devices that support 10GBASE-SR SFP+ optics. The transceiver includes digital diagnostics (DDM/DOM) support for remote monitoring of parameters such as supply voltage, laser bias current, optical transmit/receive power and temperature when the host device supports these features. Use of quality optical and IC components contributes to extended service life and stable operation.

Suitable for

Key specifications

How to use

Insert the transceiver into a compatible SFP+ port on a switch, router or other network device while the device is powered according to the host manufacturer’s instructions. Connect an LC Duplex multimode fiber patch cable to the transceiver’s LC port, observing correct transmit/receive orientation. Ensure the host device is configured for a 10GBASE-SR optical interface and that any required firmware or software settings allow operation of third-party SFP+ modules if applicable. If DDM/DOM monitoring is required, enable the diagnostic interface in the host system and verify readouts for voltage, bias current, optical power and temperature.

Recommendations

Use high-quality OM3/OM4 multimode fiber and LC Duplex patch cables for optimal reach and signal margin, and verify compatibility with the host device. Avoid bending fiber beyond recommended bend radii and follow proper ESD precautions when handling the transceiver. For environments requiring long-term availability, monitor DDM/DOM values periodically and replace modules showing abnormal parameters.
