Módulo transceptor SFP BlueOptics SFP-10G-LRM-UQ-BO fibra óptica SFP+ 220 m

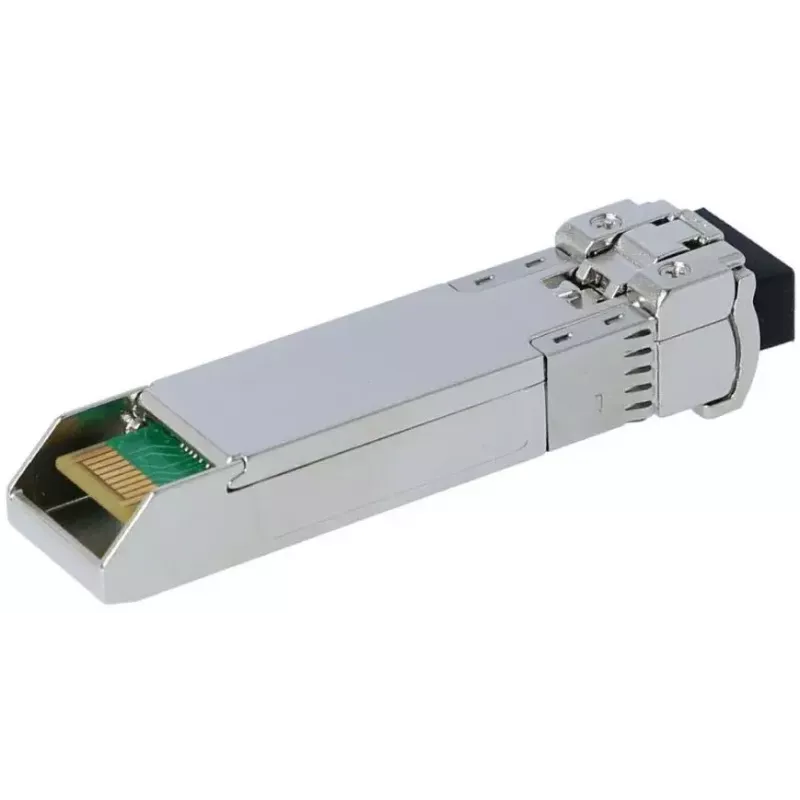

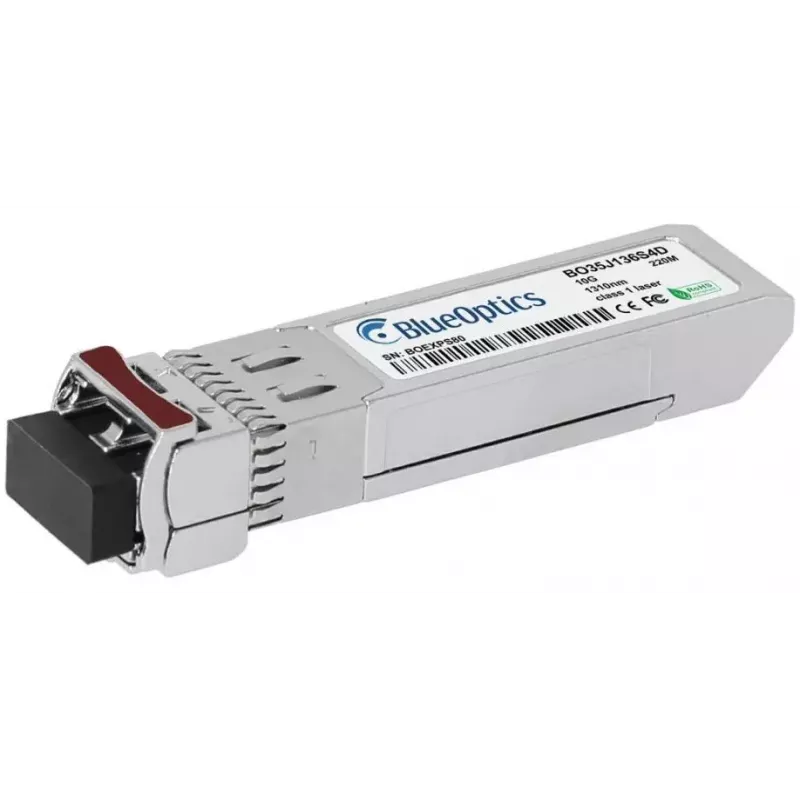

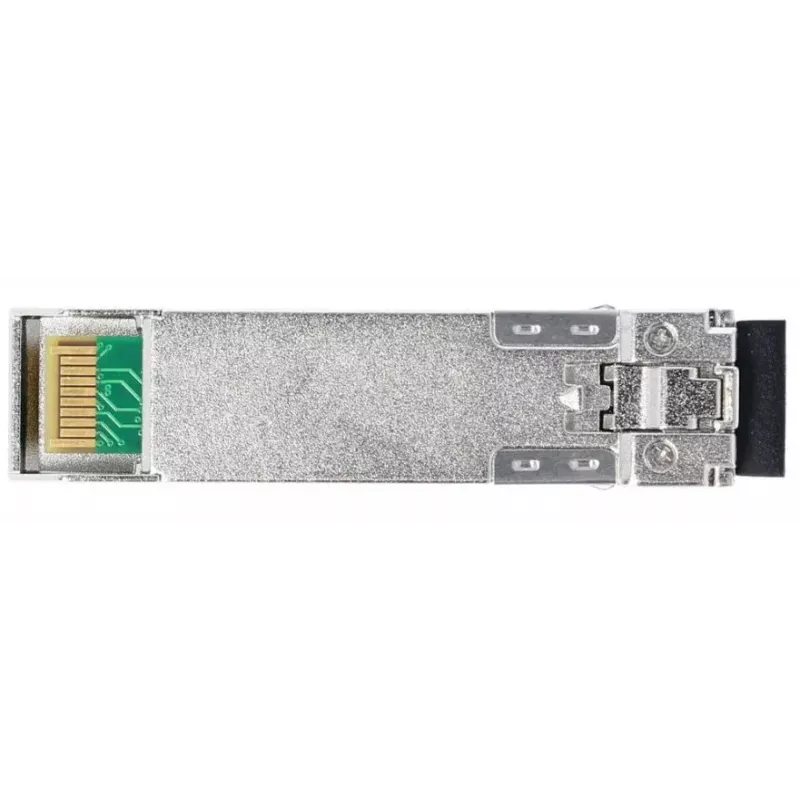

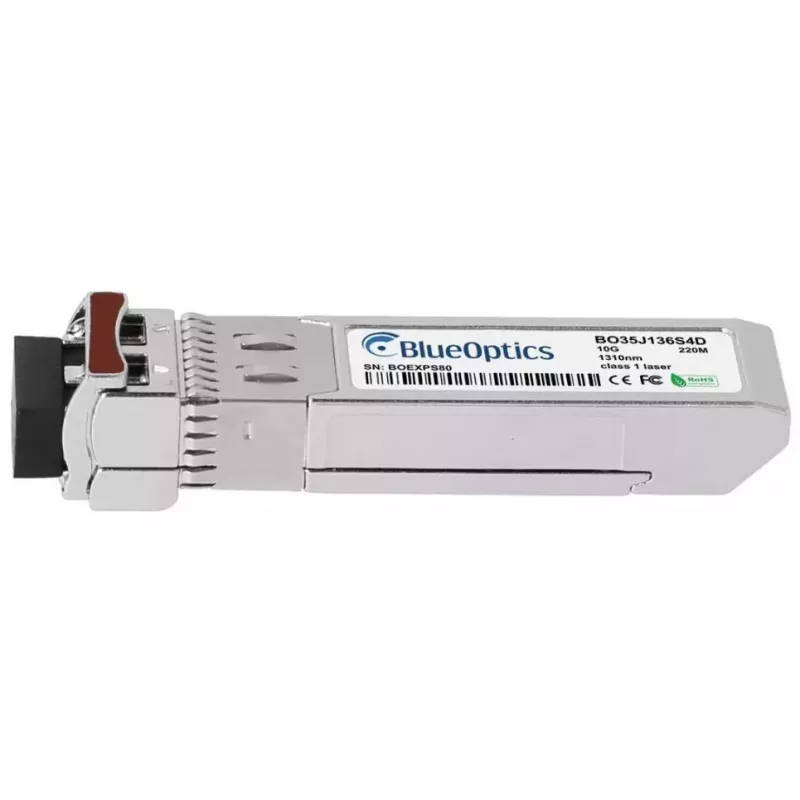

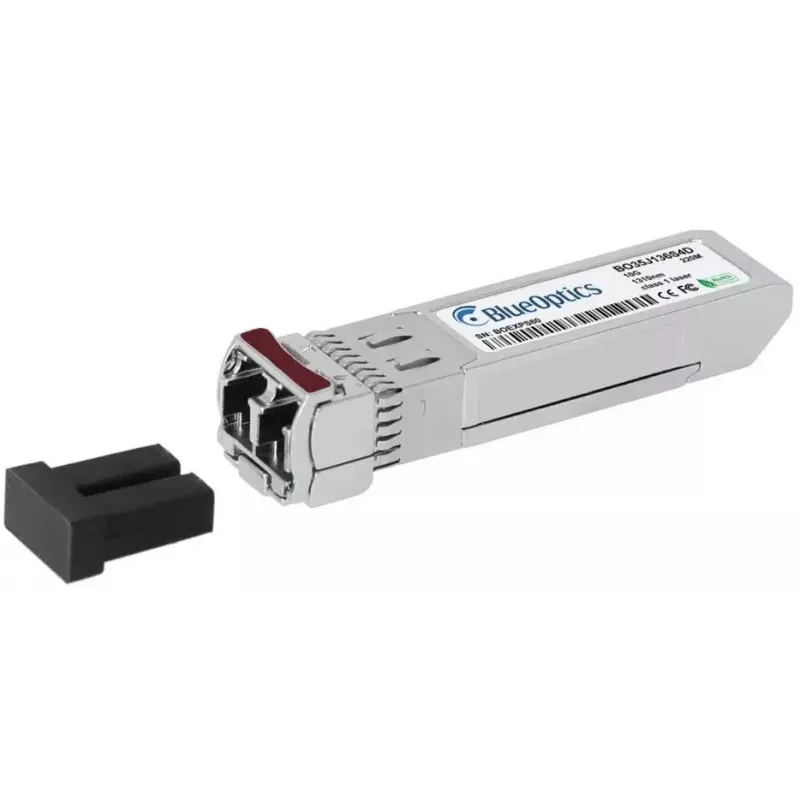

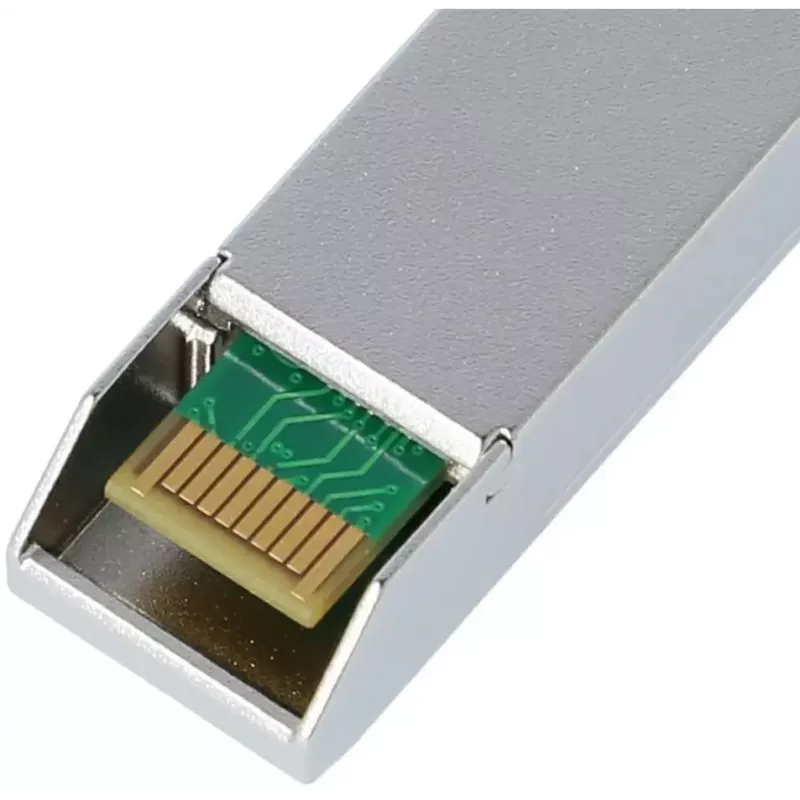

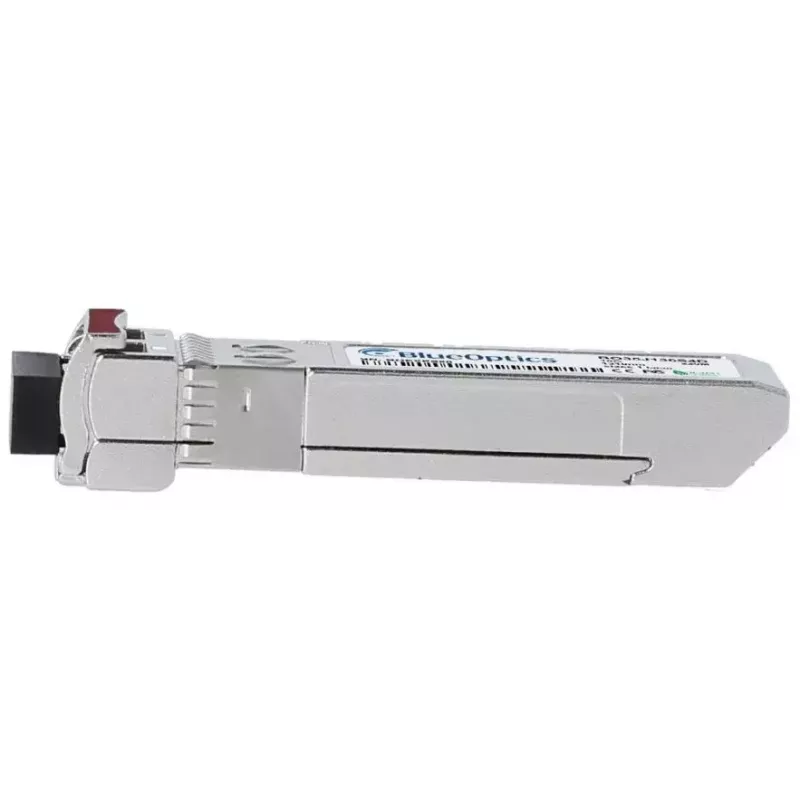

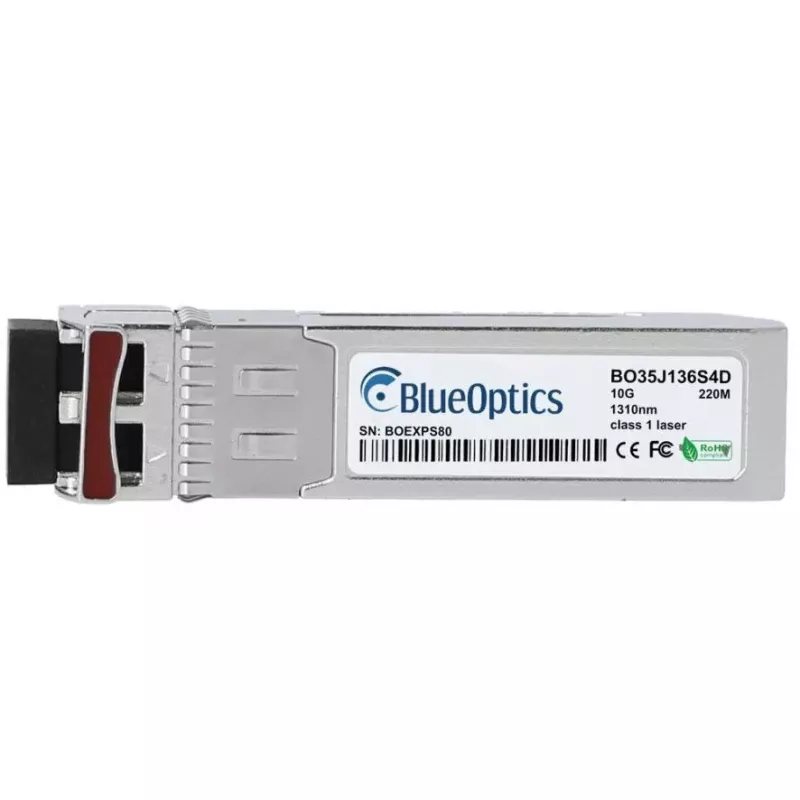

The BlueOptics SFP-10G-LRM-UQ-BO is a fiber optic SFP+ transceiver module designed for 10G data transfer over multimode fiber. The module supports transmission and reception at 1310 nm and a maximum reach of up to 220 meters. Constructed with an aluminium housing and weighing approximately 20 g, this SFP+ unit uses an LC duplex connector and complies with MSA mechanical and electrical specifications, making it suitable for integration into compatible networking hardware.

Advantages

The module offers compatibility with devices that accept 10GBASE-LRM SFP+ transceivers and supports common protocols such as Ethernet and Fibre Channel over Ethernet at up to 10 Gbit/s. Built to MSA standards, the transceiver employs high-quality optical and electronic components to provide stable signal transmission, extended operational lifetime and reduced maintenance requirements. It also supports digital diagnostics (DDM/DOM) for remote monitoring of parameters like supply voltage, laser bias current, optical output and input power, and temperature when the host hardware exposes these functions.

Suitable for

• 10 Gbps links in data center switch-to-switch or switch-to-server connections over multimode fiber
• Aggregation and distribution links in campus and enterprise networks
• Storage networking and Fibre Channel over Ethernet (FCoE) connections
• Short-reach fiber runs such as patch panel to switch or within equipment racks up to 220 m

Key specifications

• Form factor: SFP+ (10G)
• Wavelength: 1310 nm (TX and RX)
• Maximum reach: up to 220 meters over multimode fiber

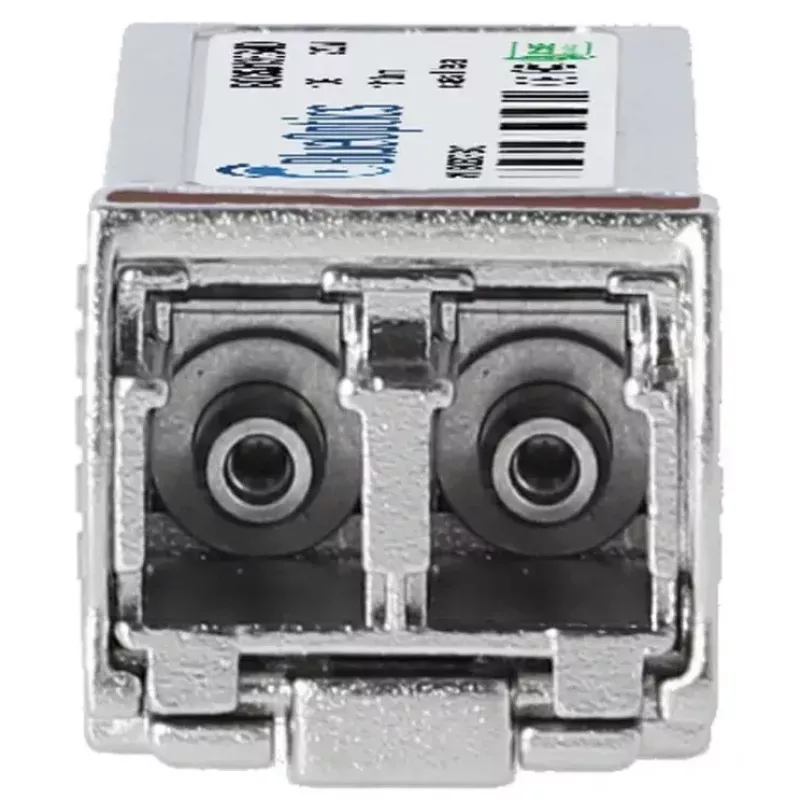

• Connector: LC duplex
• Housing material: aluminium
• Weight: approx. 0.02 kg
• Supported protocols: 10G Ethernet, FCoE, SDH/SONET-compatible high-speed links
• Digital diagnostics: DDM/DOM (if supported by host hardware)

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on the switch, router or storage device until it latches. Connect LC duplex multimode fiber patch cords following correct polarity and ensure fiber connectors and ports are clean before mating. Configure the host device as required for a 10GBASE-LRM link; the transceiver will operate at 1310 nm and negotiate link parameters with the remote transceiver. If available, enable or query DDM/DOM through the host management interface to monitor operational parameters.

Recommendations

For best performance, use high-quality multimode fiber and LC duplex patch cords, maintain clean connectors, and verify host device compatibility with 10GBASE-LRM SFP+ modules. If remote monitoring is needed, confirm that the host platform supports DDM/DOM to access diagnostic data.
