Módulo transceptor SFP BlueOptics SFP-P-6BDH-BO 10000 Mbit/s SFP+ 1270 nm

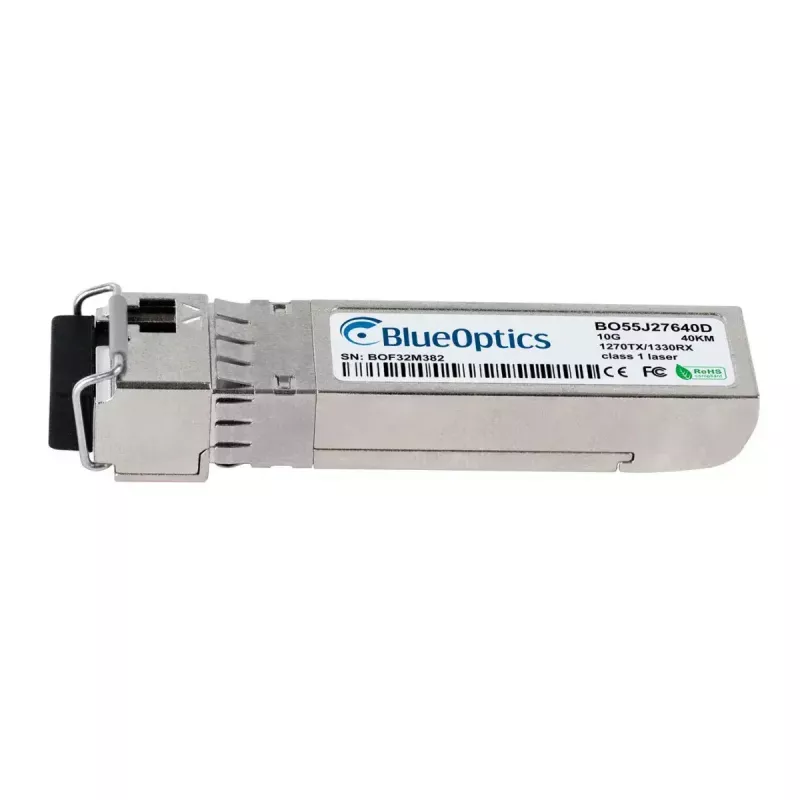

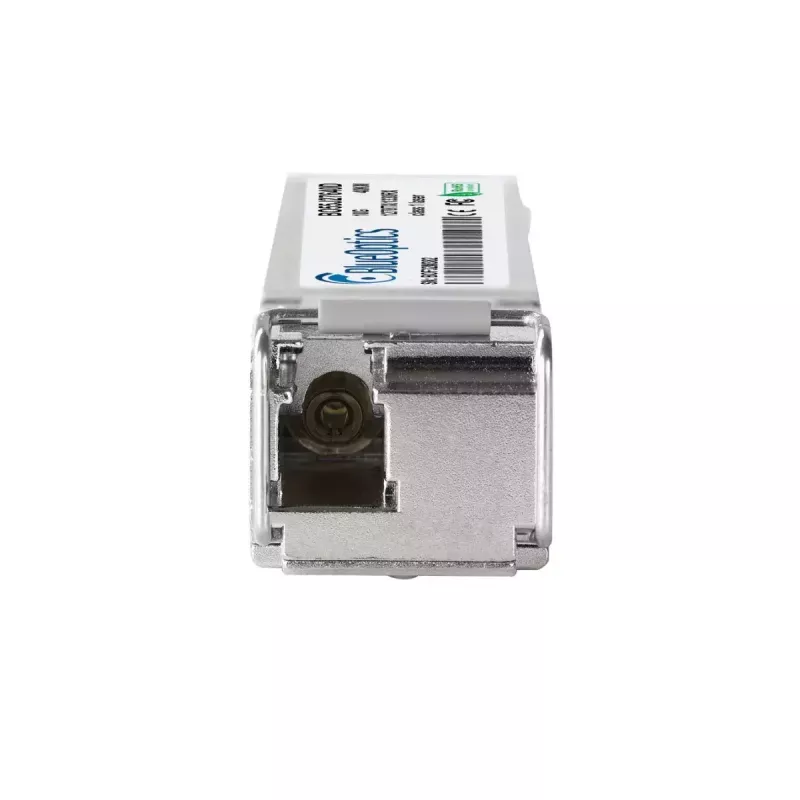

The BlueOptics SFP-P-6BDH-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s optical links. It supports a maximum data transfer rate of 10000 Mbit/s and operates with a 1270 nm wavelength for one direction of the bidirectional 10GBASE-BX-U link. The module uses an SFP+ interface with an LC simplex connector and is supplied as an individual silver-coloured unit weighing approximately 20 g. It is CE, FCC and RoHS certified and is compatible with RAD devices that accept the RAD SFP-P-6BDH 10GBASE-BX-U transceiver.

Advantages

The transceiver provides 10 Gbit/s performance in a compact SFP+ form factor, allowing integration into switches, routers and storage platforms that support SFP+ modules. Compliance with international safety and emissions standards (CE, FCC, RoHS) ensures predictable regulatory behaviour in professional environments. The module is built to MSA mechanical and electrical standards and is factory-tested for compatibility with devices that accept the corresponding RAD transceiver type.

Suitable for

• 10G Ethernet uplinks and interconnects in campus and data centre networks
• Fibre Channel over Ethernet (FCoE) and other high-speed storage networking links
• Long-reach single-mode fiber connections where bidirectional 10GBASE-BX-U operation is required
• Replacement or spare transceiver in network hardware compatible with RAD SFP-P-6BDH modules

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Operating wavelength (receive/transmit): 1270 nm (receiving side in BX-U configuration)
• Connector: LC simplex
• Form factor: SFP+ transceiver module
• Weight: approx. 0.02 kg
• Product colour: Silver
• Certifications: CE, FCC, RoHS

How to use

Install the BlueOptics SFP-P-6BDH-BO into any network device slot that supports SFP+ modules and explicitly allows RAD SFP-P-6BDH compatible transceivers. Connect an appropriate single-mode LC patch cable to the module and to the remote transceiver or patch panel, observing correct simplex polarity for bidirectional BX operation. Ensure the host device firmware or driver supports DDM/DOM if diagnostics are required. After insertion, verify link status and negotiated speed on the host device and perform functional tests to confirm end-to-end connectivity.

Recommendations

Use single-mode fiber and LC simplex patch cords rated for 10 Gbit/s and ensure both ends use matching BX wavelengths (one module transmitting at 1330 nm and receiving at 1270 nm, paired with the complementary module) to achieve proper bidirectional communication. Verify device compatibility and enable digital diagnostic monitoring only if supported by the host hardware.
