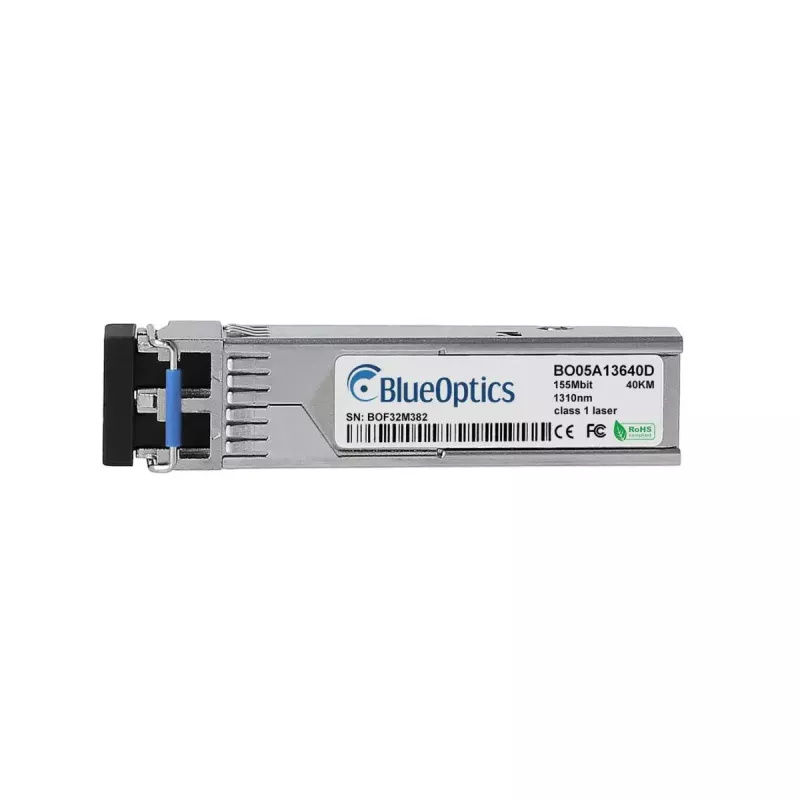

Módulo transceptor SFP BlueOptics SFP100SM30D-BO 155 Mbit/s 1310 nm

The BlueOptics SFP100SM30D-BO SFP transceiver module is a single-mode fiber optic module designed for 100BASE-LH applications with a maximum data transfer rate of 155 Mbit/s. It operates at a wavelength of 1310 nm, uses an LC duplex optical interface, and comes in a compact metal housing with a 3.3 V operating voltage. The module is lightweight and intended for straightforward installation into SFP-compatible network equipment that follows MSA standards.

Advantages

The transceiver provides single-mode optical transmission at 1310 nm suitable for distances up to long-reach 100BASE-LH links while maintaining a small form factor and low weight for easy handling and installation. Built to MSA form-factor standards, it offers broad interoperability with devices supporting standard SFP modules. The metal housing improves mechanical durability and helps thermal dissipation during operation.

Suitable for

• Upgrading switches, routers and storage interfaces to single-mode fiber
• 100BASE-LH / long-reach Ethernet links over single-mode fiber
• Point-to-point fiber connections using LC duplex connectors
• Environments requiring a compact, MSA-compliant SFP transceiver

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Wavelength: 1310 nm
• Optical fiber type: single-mode fiber (LC duplex connector)
• Operating voltage: 3.3 V
• Housing material: metal
• Colour: silver
• Weight: 0.003 kg

How to use

Insert the BlueOptics SFP100SM30D-BO into an empty SFP slot of a compatible switch, router or other network device while the device is powered down or following the vendor’s hot-swap instructions. Connect single-mode LC duplex patch cords to the module’s transmit and receive ports, ensuring correct fiber polarity. Verify link status via the host device and, if supported, enable or read digital diagnostics/DOM information to monitor operating parameters such as supply voltage and optical power.

Recommendations

Use certified single-mode LC duplex patch cords and ensure both connected devices support the 100BASE-LH specification and SFP MSA compatibility. Confirm that the host device supports any digital diagnostics/DOM features you require. Handle the transceiver carefully to avoid contamination of optical interfaces; keep dust caps in place when not connected.
