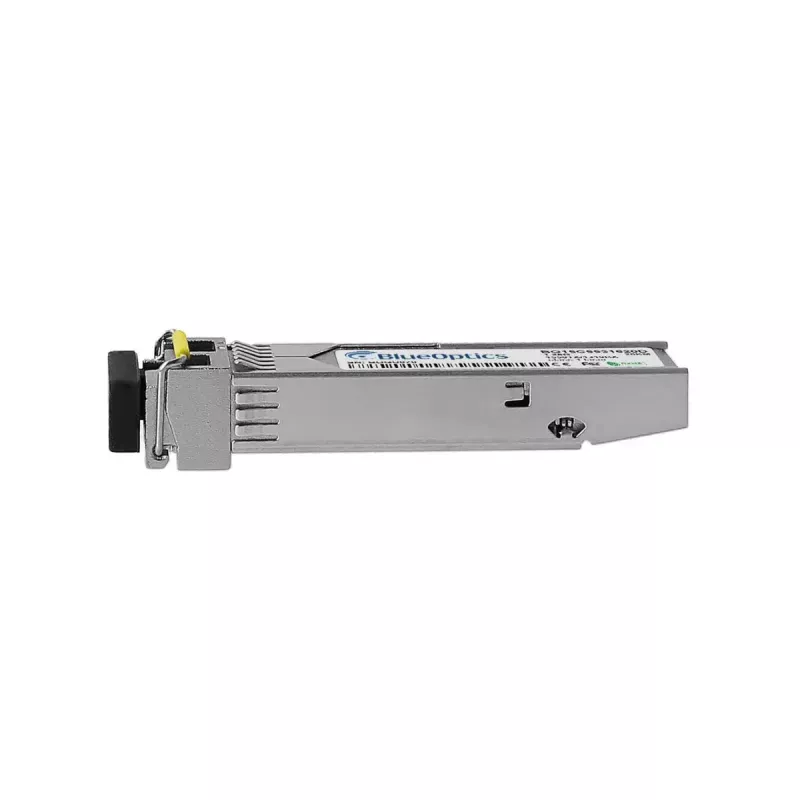

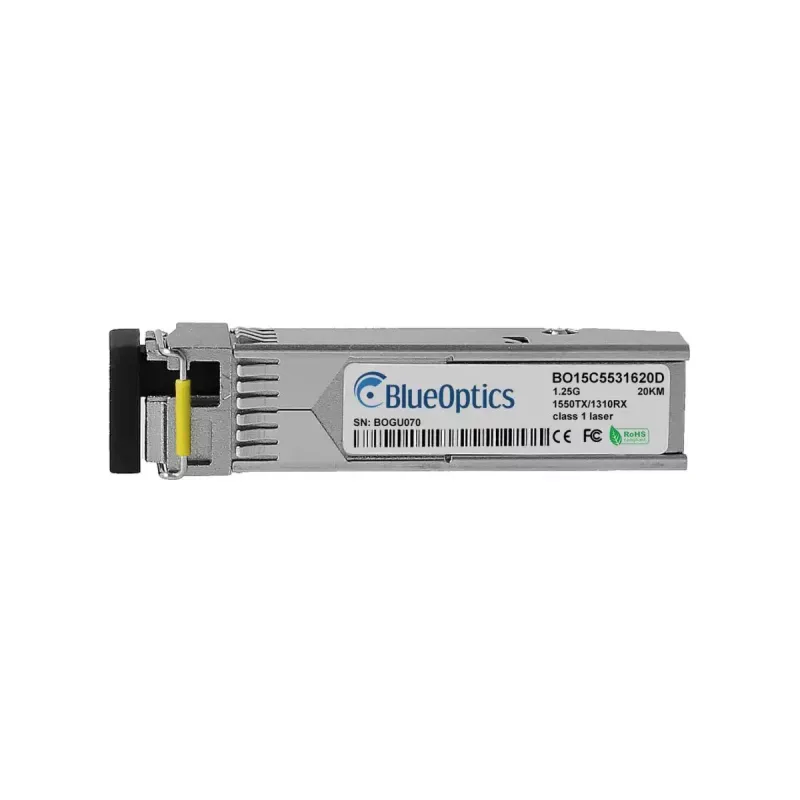

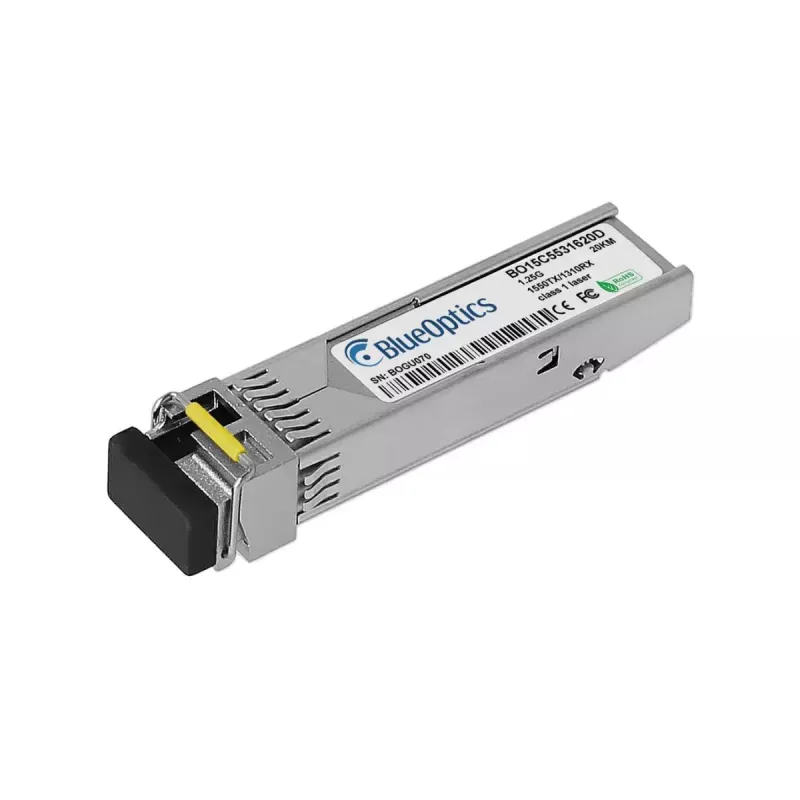

Módulo transceptor SFP BlueOptics SPL-53-GB-BX-CDFM-BO 1250 Mbit/s

The BlueOptics SPL-53-GB-BX-CDFM-BO 1250 Mbit/s SFP transceiver module is a compact fiber optic interface designed for small form-factor pluggable slots. Constructed with a metal housing and weighing approximately 2 g, the module provides a reliable physical connection for single-fibre or duplex fibre links while meeting RoHS environmental standards. It operates from a 3.3 V input and supports data transmission up to 1250 Mbit/s, making it suitable for various network equipment that accepts SFP interfaces.

Advantages

The metal housing offers mechanical robustness and thermal stability in dense rack environments. With a standardized SFP interface and a small form factor, the module is easy to install and replace without additional cabling changes. Compliance with RoHS ensures reduced hazardous substances, and the low weight helps minimize strain on device ports. The supported 1250 Mbit/s data rate is compatible with common fiber-based network standards for access and distribution layers.

Suitable for

• Replacing or upgrading SFP ports in switches and routers
• Short- to medium-distance fiber links in access networks
• Environments where RoHS compliance is required
• Applications needing a compact, metal-bodied SFP transceiver

Key specifications

• Interface type: SFP small form-factor pluggable
• Maximum data transfer rate: 1250 Mbit/s
• Operating voltage: 3.3 V input
• Material and finish: metal housing, silver colour
• Weight: 0.002 kg (approx. 2 g)
• Environmental compliance: RoHS

How to use

Insert the BlueOptics SFP transceiver into a compatible SFP slot on your switch, router, or media converter while the host device is powered according to the equipment manual. Secure a compatible fiber connector to the transceiver's optical interface, following the correct transmit/receive orientation for your link (single-fiber or duplex as applicable). After seating and connecting the fiber, verify link status and configuration through the host device; ensure the port speed and duplex settings match the intended 1250 Mbit/s operation if manual configuration is required.

Recommendations

Handle the optical connector caps carefully to avoid contamination. Clean fiber connectors before mating and follow manufacturer guidelines for maximum operating temperature and insertion/removal cycles to maintain reliable performance.
