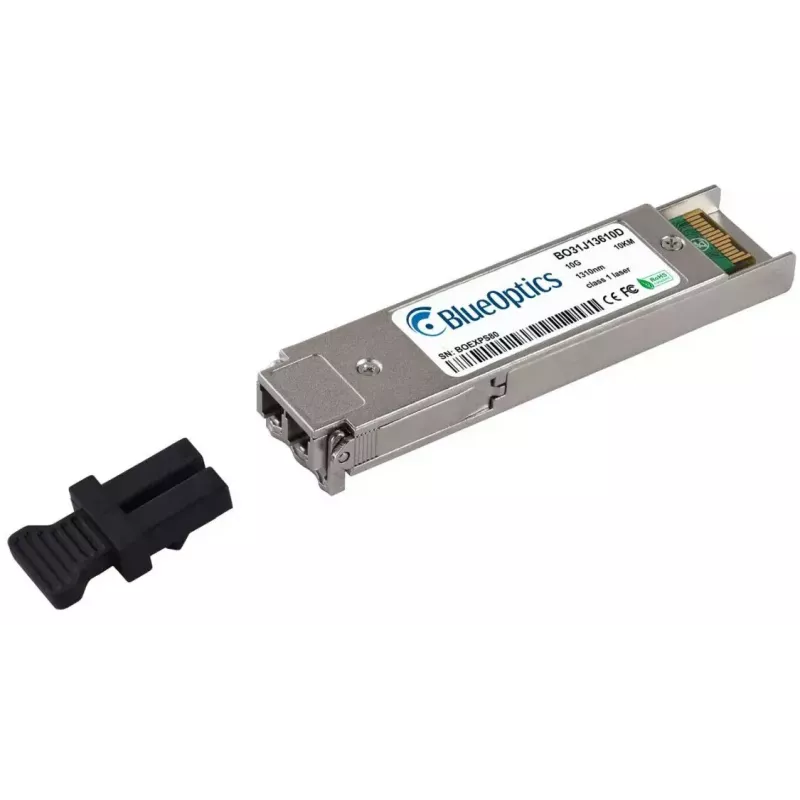

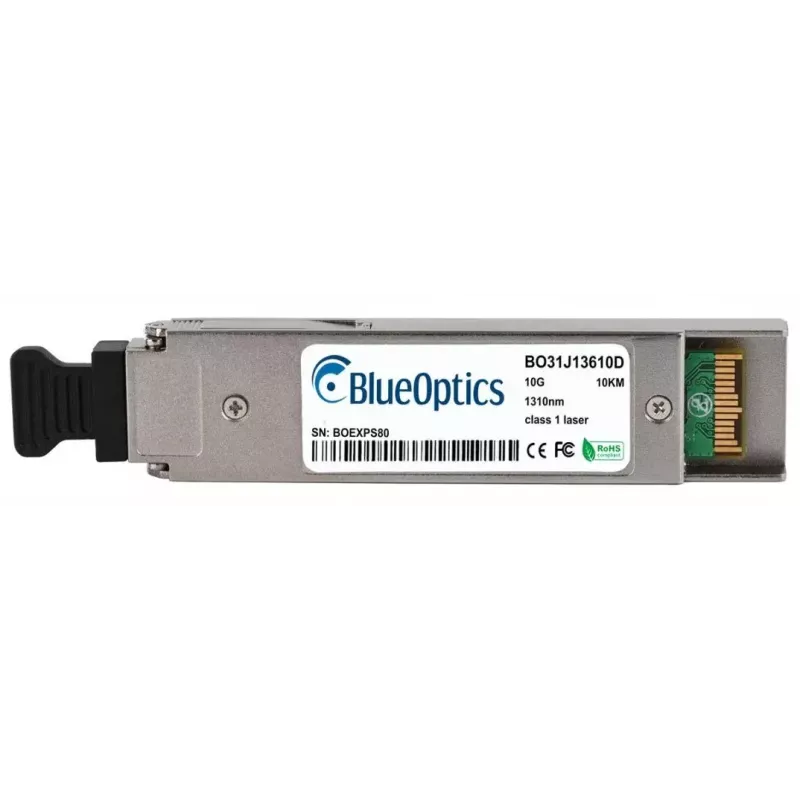

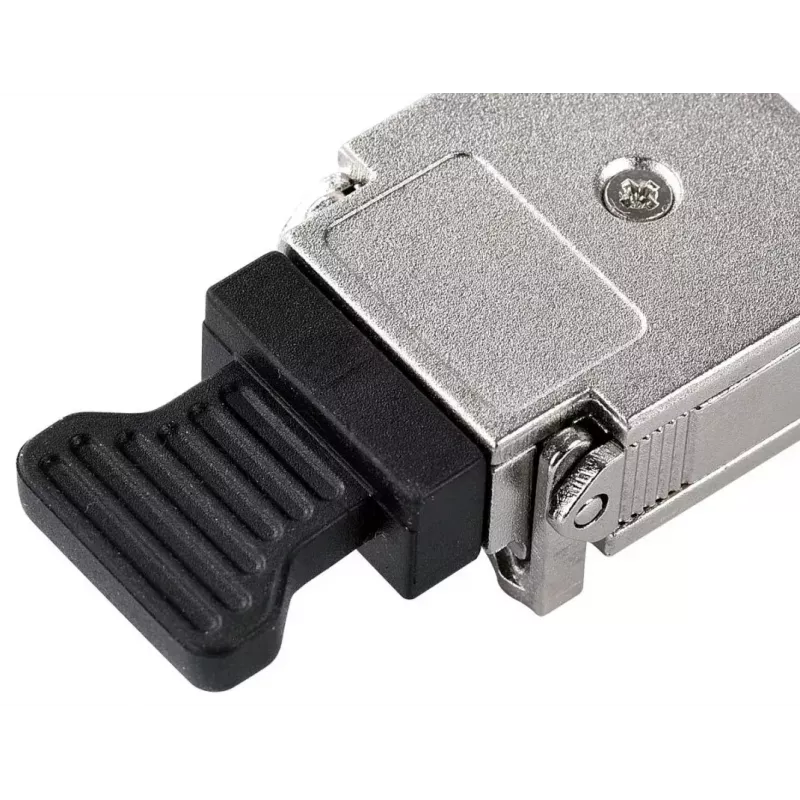

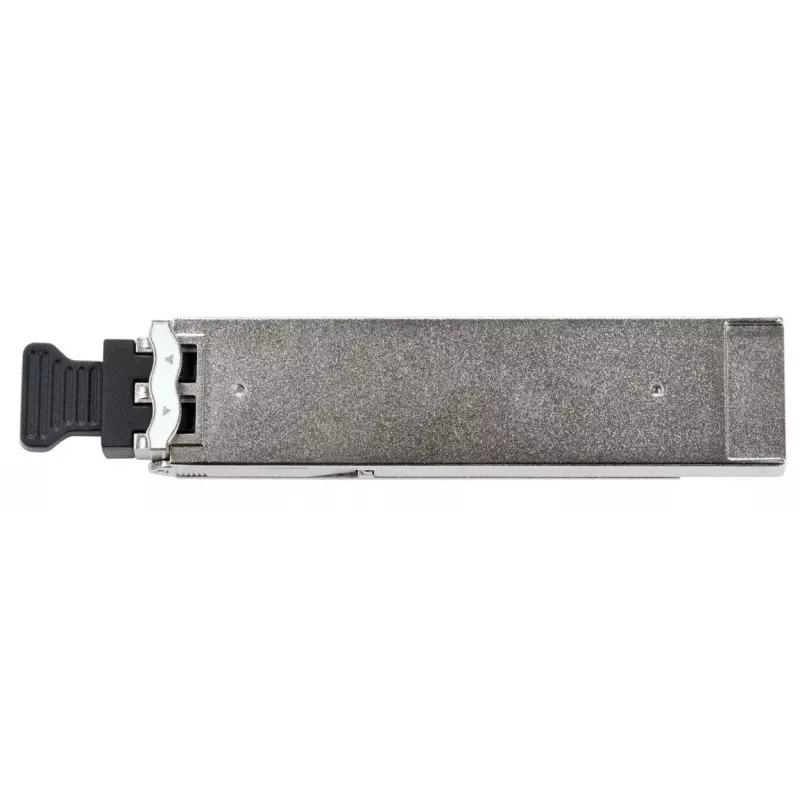

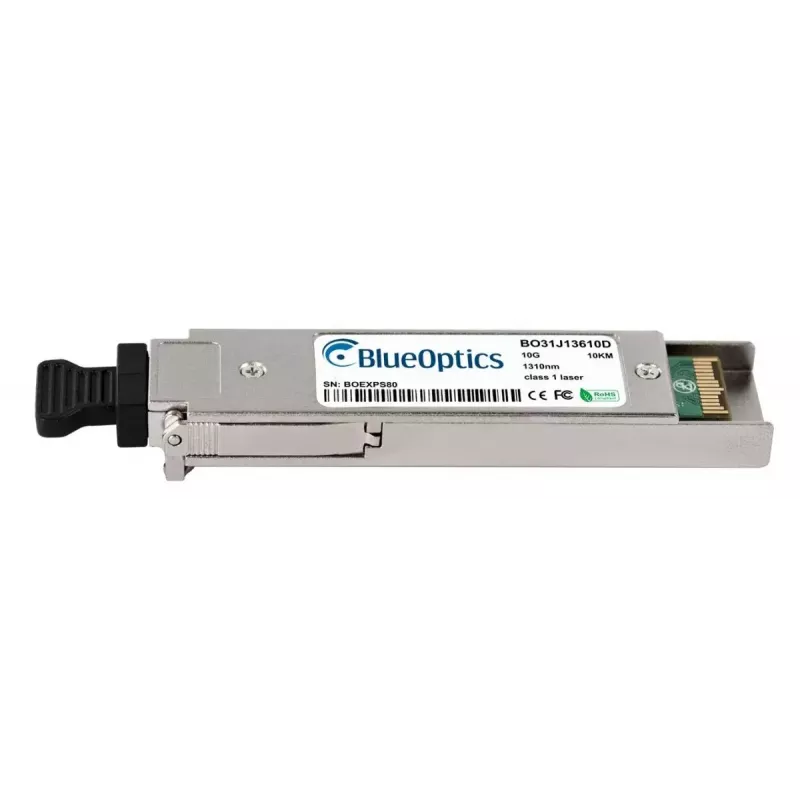

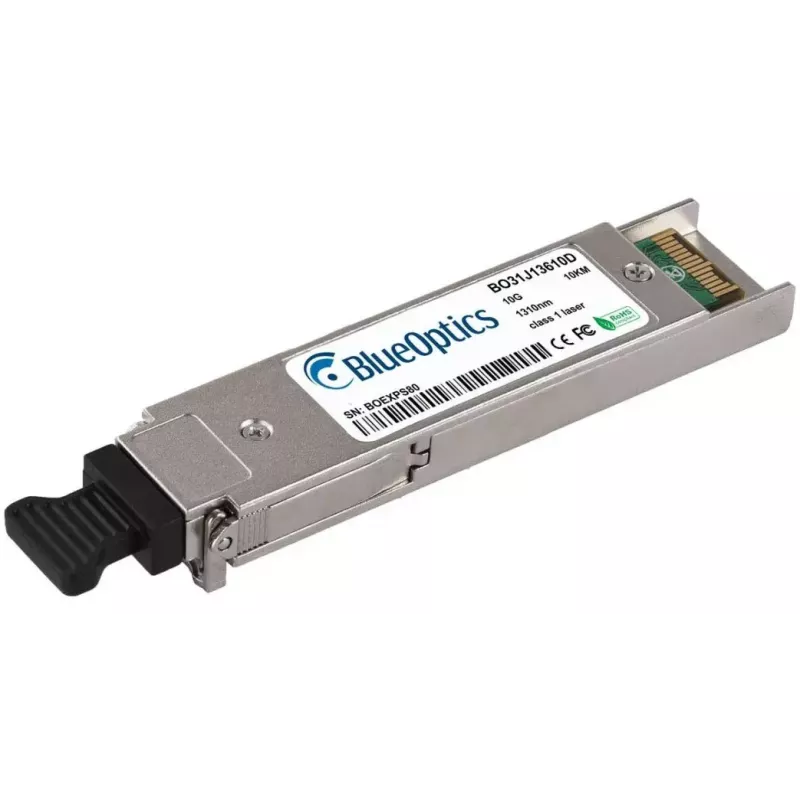

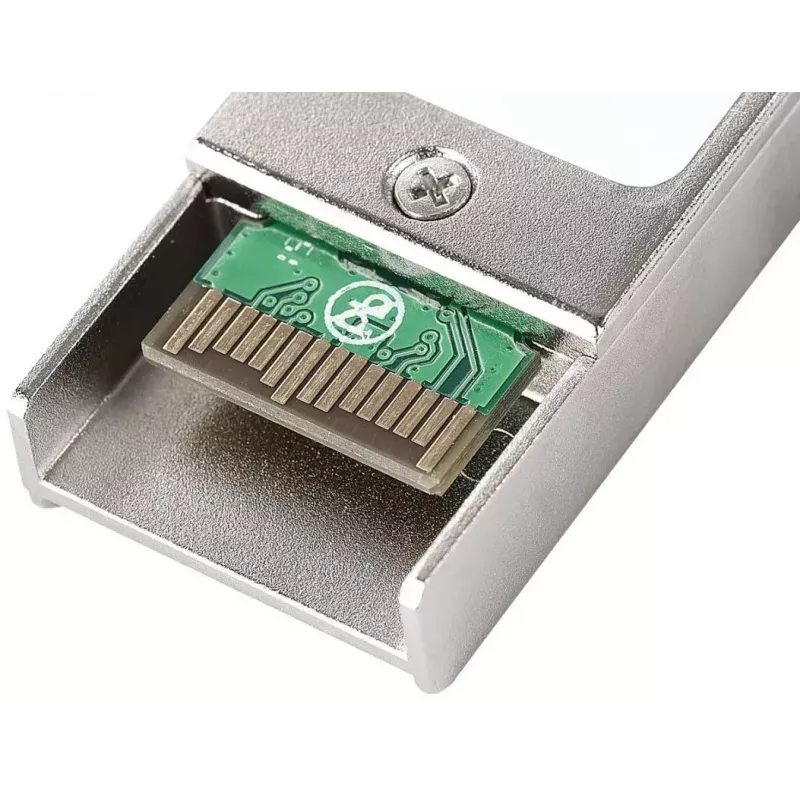

Módulo transceptor XFP BlueOptics V50017-U0724-K822-BO 10000 Mbit/s 1310 nm

The BlueOptics V50017-U0724-K822-BO XFP transceiver module is a single-mode fiber optic 10GBASE-LR device designed for high-speed network links. It supports a maximum data rate of 10000 Mbit/s at a wavelength of 1310 nm and uses an XFP interface with an LC duplex connector. The module is compact and lightweight, RoHS-compliant and intended for use in networking equipment that accepts XFP 10GBASE-LR optics. It provides bidirectional optical transmission over single-mode fiber and includes digital diagnostic monitoring capabilities when supported by the host hardware.

Advantages

The module combines a standardized XFP form factor with a 10GBASE-LR optical design to enable long-reach single-mode transmission up to typical LR distances. Its compact silver housing and 20 g weight reduce space and handling constraints in dense installations. Compliance with MSA interface standards ensures interoperability with equipment that supports 10G XFP optics. Built-in digital diagnostics (DDM/DOM) provide real-time monitoring of supply voltage, laser bias current, optical output and input power, and temperature when the host system supports those functions.

Suitable for

Key specifications

How to use

Install the XFP transceiver into a compatible transceiver slot on the network device following the equipment manufacturer's hot-swap and handling instructions. Connect LC duplex single-mode fiber patch cords to the transceiver, ensuring correct transmit/receive polarity. Verify that the host device port is configured for 10G operation and that any required firmware or software settings allow third-party XFP modules and DDM/DOM reporting if needed. After insertion, check link status and diagnostic parameters via the host management interface.

Recommendations

Use high-quality single-mode fiber and LC duplex patch cords to achieve the specified range and signal integrity. Ensure the hosting device supports 10GBASE-LR XFP modules and DDM/DOM if diagnostic monitoring is required. Avoid excessive bending or contamination of fiber connectors and follow ESD precautions when handling the transceiver.
