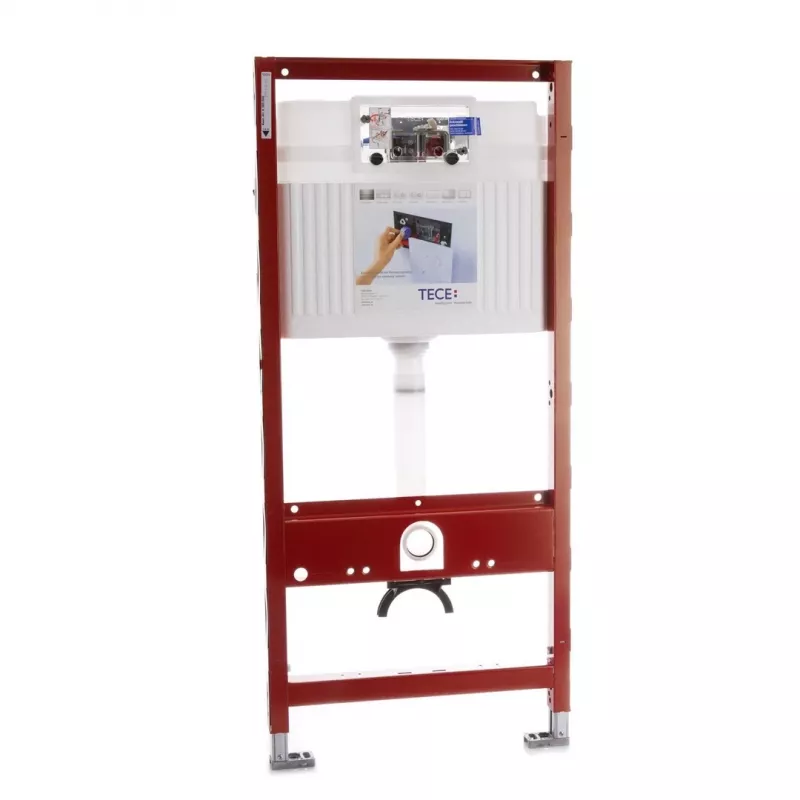

Módulo WC TECEprofil, altura 1120 mm

The TECEprofil WC Module with a height of 1120 mm is a robust and versatile solution for installing wall-hung toilets. Designed for professional use, this self-supporting steel frame integrates seamlessly with TECE Uni-Cisterns and offers dual flush technology for water efficiency. Ideal for new constructions and renovations, it provides adjustable installation depth and floor height compensation up to 200 mm.

Advantages

This WC module ensures reliable performance with a tested load capacity of 400 kg. The pre-assembled condensation-insulated cistern simplifies installation, while the included sound-decoupling elements minimize noise transmission. Compatible with all TECE flush plates, it offers flexibility in design and actuation.

Suitable for

• Wall-hung toilets in residential and commercial bathrooms
• New builds and renovation projects requiring a concealed cistern
• Installations where adjustable height and depth are needed

Key specifications

• Frame height: 1120 mm
• Frame width: 500 mm
• Adjustable installation depth: min. 130 mm
• Dual flush: 6/3 L (adjustable to 4.5/3 L)
• Water connection: R 1/2" with angle valve
• Waste connection: DN 90/100 adapter
• Load capacity: tested up to 400 kg
• Certification: CE, TÜV

Recommendations

For optimal performance, pair this module with a TECE flush plate and ensure proper installation by a qualified professional. The adjustable feet allow for precise floor height alignment.
