MOES WV-LZ-EU-BK-MS Actuador WLAN para válvulas de palanca, negro

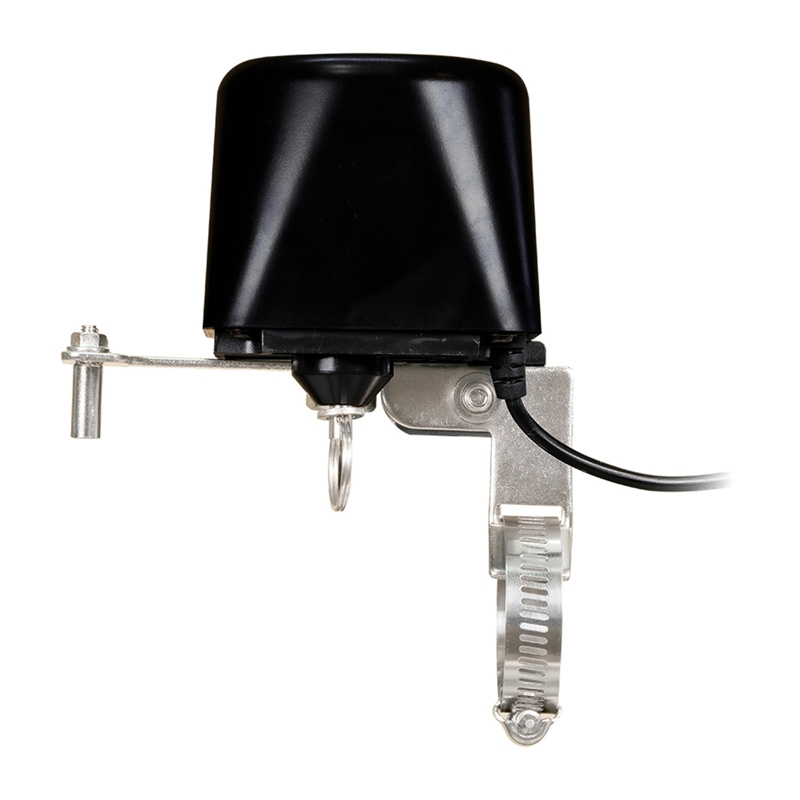

MOES WV-LZ-EU-BK-MS is a black motorized controller that operates the handle of an existing lever-type ball valve. Its bracket and clamp attach the actuator above the valve, allowing the motor arm to move the existing handle. The controller connects to a 2.4 GHz Wi-Fi network and the Smart Life app for remote operation, schedules, sharing and linked automation.

A 12 V / 1 A adapter powers the actuator. Opening or closing takes approximately 5–10 seconds, with the specified torque of 30–60 kgf·cm. The local button provides control without Wi-Fi; a pull-ring clutch allows manual movement when power is disconnected. Check space around the valve and align the actuator axis with the valve axis during installation. The package comprises the controller, power adapter, pipe clamp and instructions.
