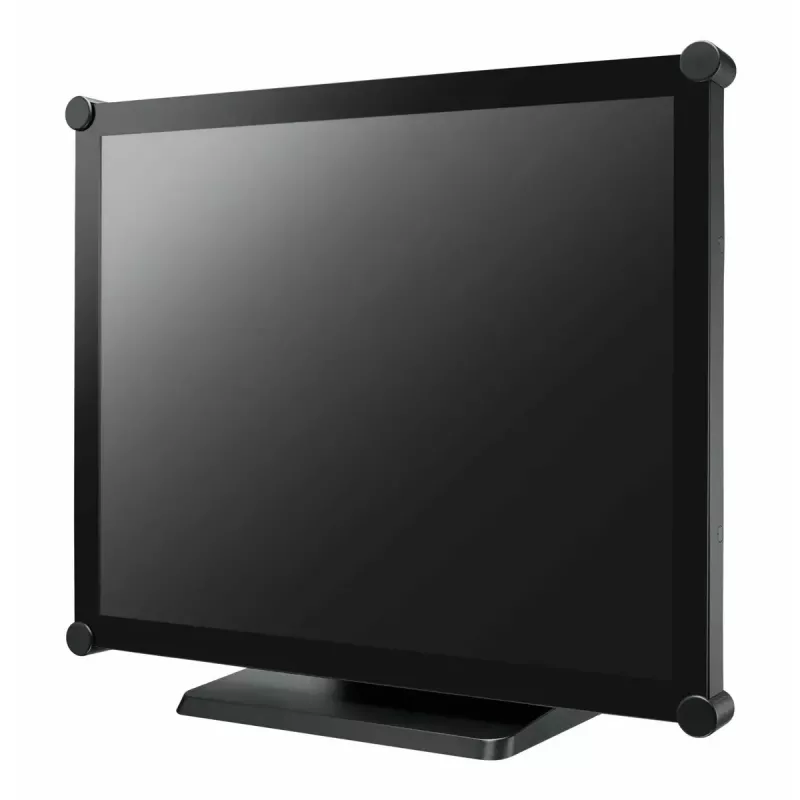

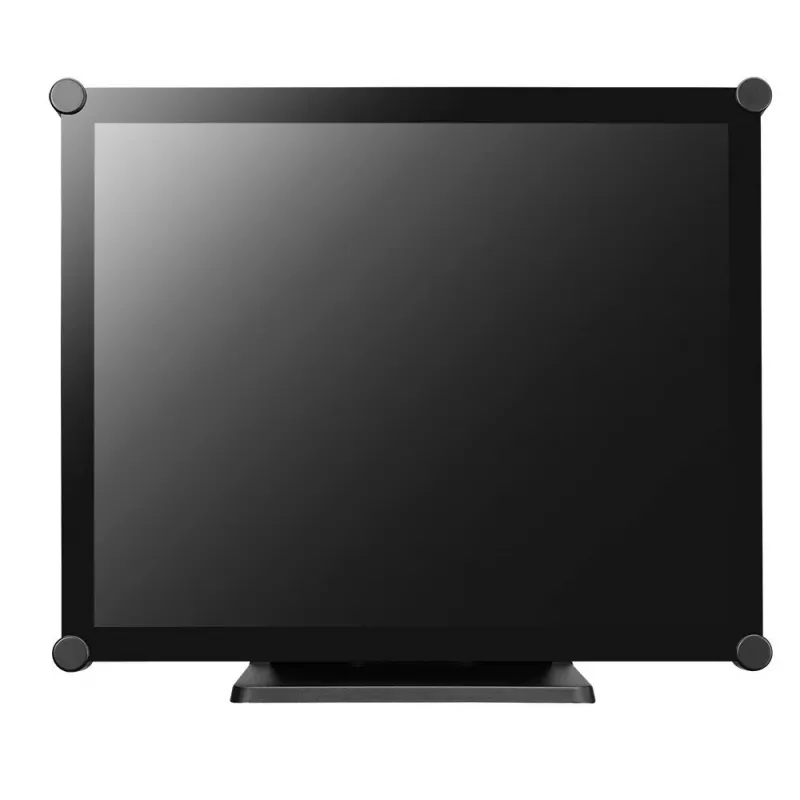

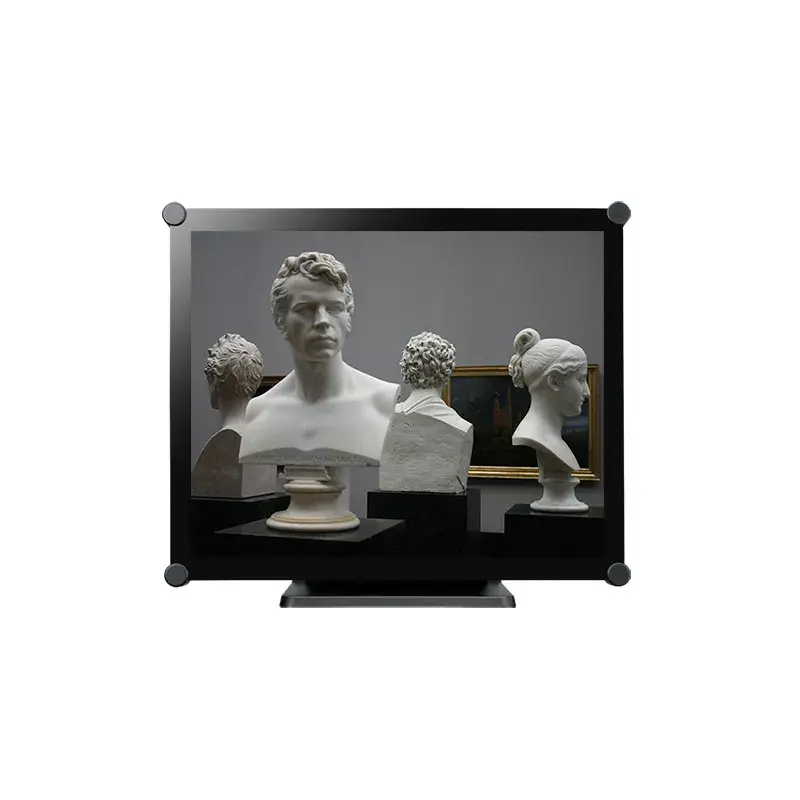

Monitor AG Neovo TX-1902 48,3 cm (19") 1280 x 1024 píxeles SXGA LCD táctil de sobremesa negro

AG Neovo TX-1902 19-inch touch screen monitor provides a smooth and responsive touch experience with 10-point projected capacitive (PCAP) multi-touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-1902 supports analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. The TX-1902 touch monitor is complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.

PREMIUM PCAP MULTI TOUCH SCREEN
Based on PCAP touch screen technology, the TX-1902 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.

CROSS-PLATFORM TOUCH CAPABILITY
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.

IP65 DUST AND WATER PROTECTION
The TX-1902 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1902 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.

CONSISTENT FORM FACTOR DESIGN
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, the TX-1902 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

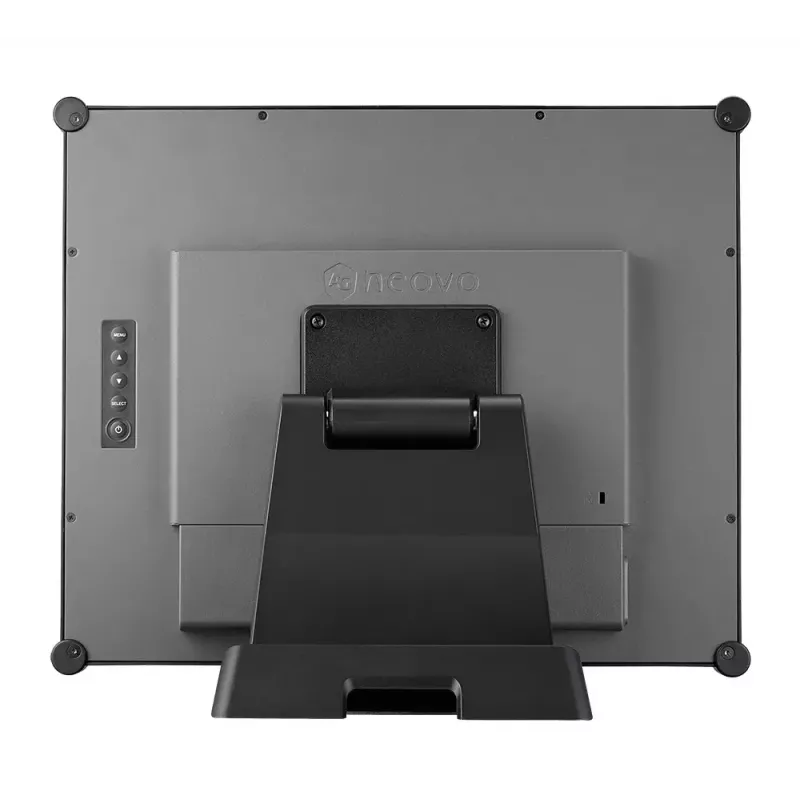

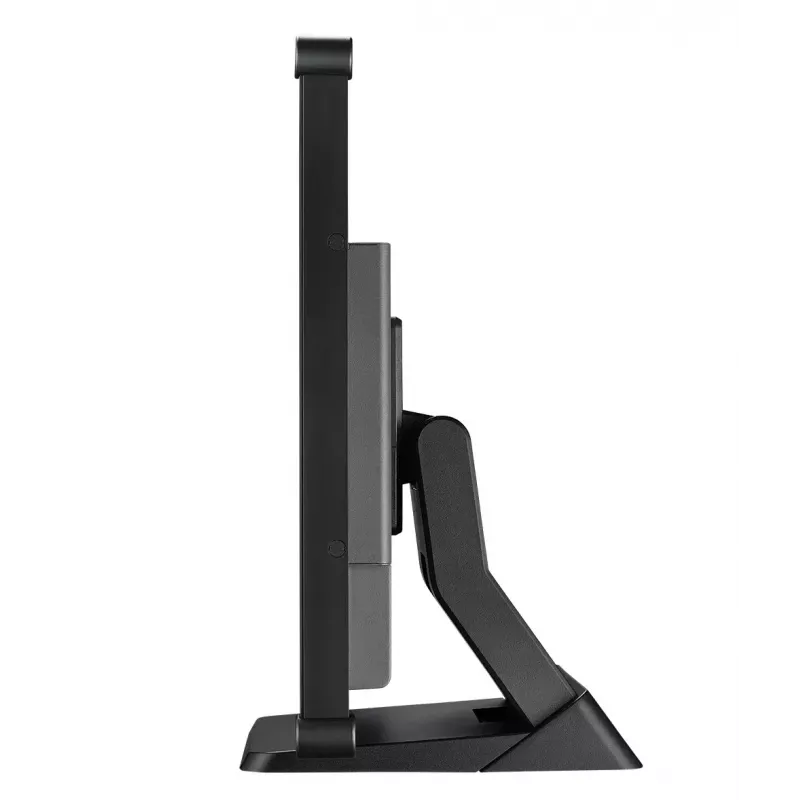

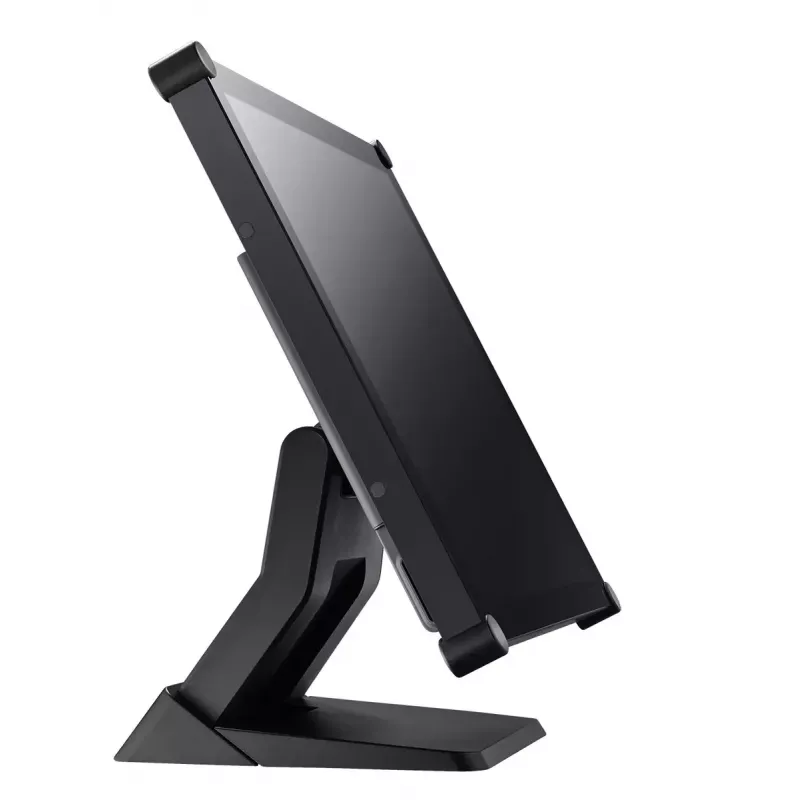

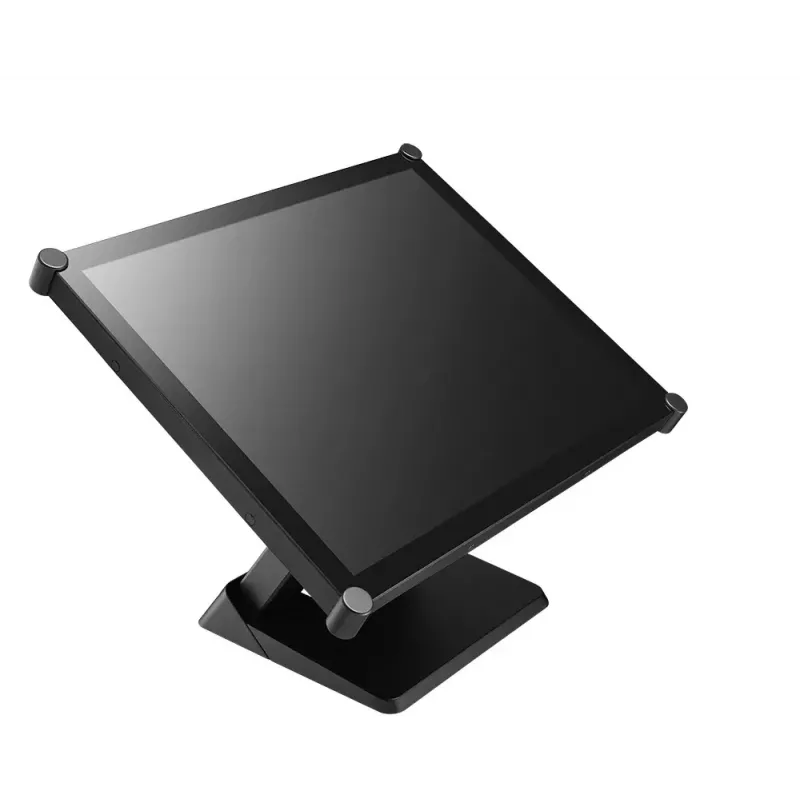

The TX-1902 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1902 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.

VERSATILE CONNECTIVITY

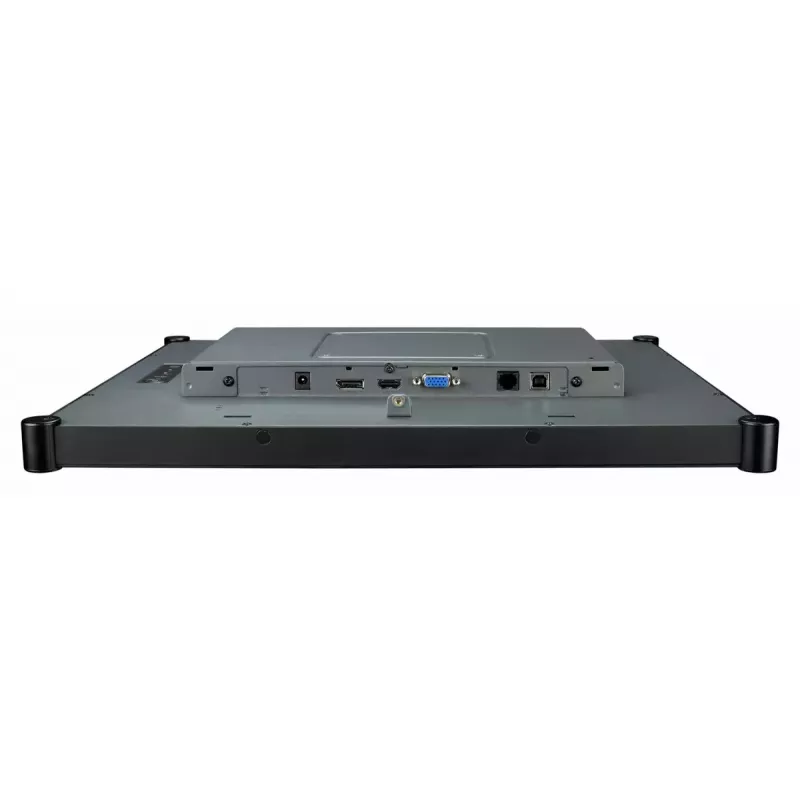

The TX-1902 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.

AG Neovo TX-1902. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

How to use

Place the TX-1902 on a stable tabletop surface or install it using a VESA-compatible mount or wall bracket. Connect a video source via DisplayPort, HDMI or VGA and attach the USB touch cable to a host computer to enable touch functionality. Adjust the tilt stand between -5° and 90° to obtain a comfortable viewing and interaction angle. For public installations, position the screen height and tilt to allow easy access for all users.

Recommendations

For continuous public or industrial use, verify that connected systems support the monitor's resolution and touch drivers. Clean the tempered glass surface with a soft, lint-free cloth and non-abrasive cleaner; avoid excessive liquid to maintain the IP65 seal. When replacing older AG Neovo touch monitors, check compatibility with existing VESA mounts to minimize installation changes.
