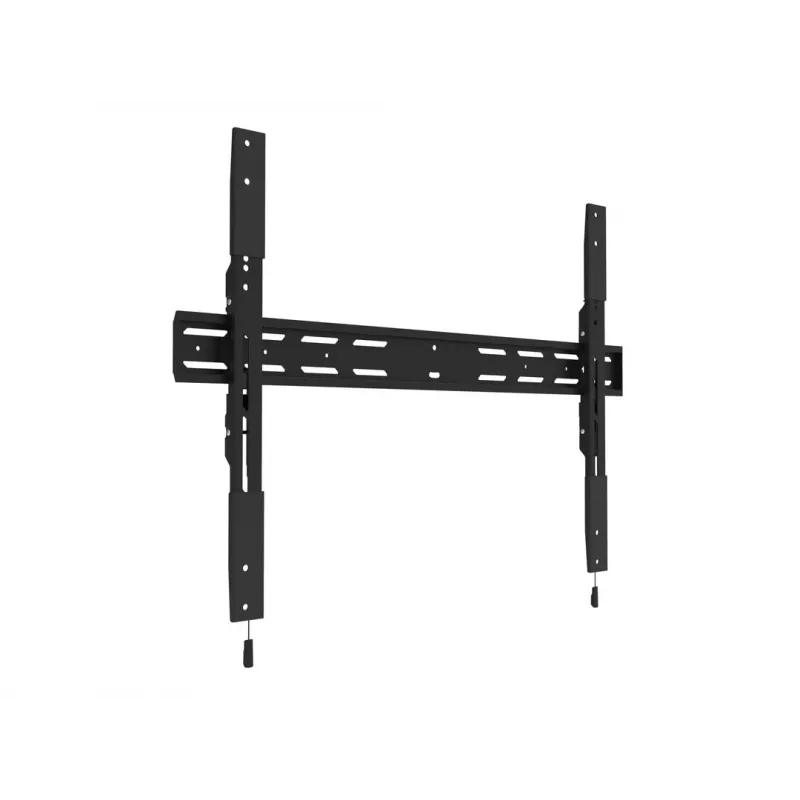

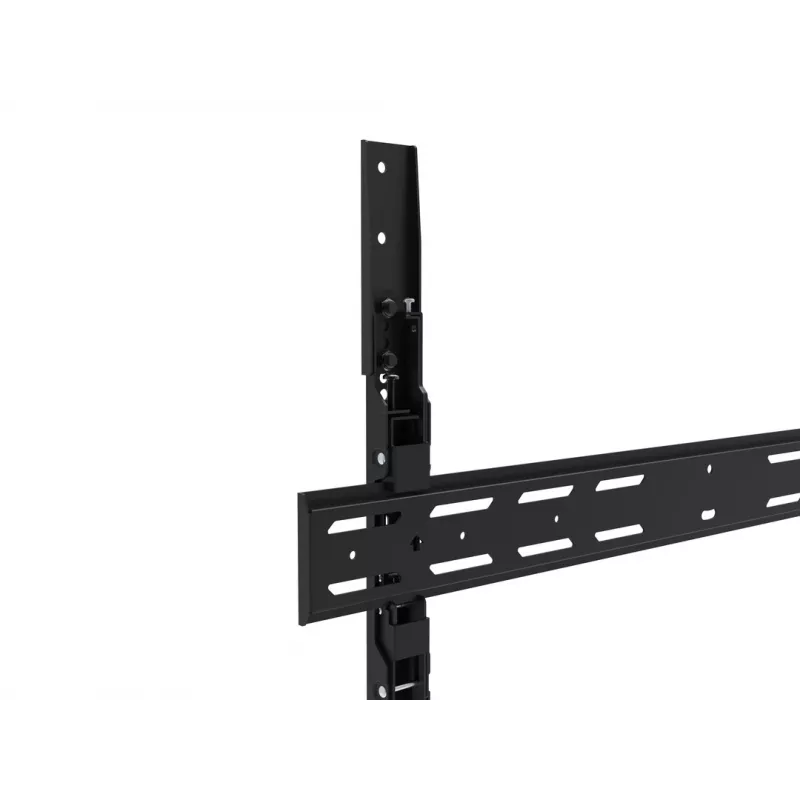

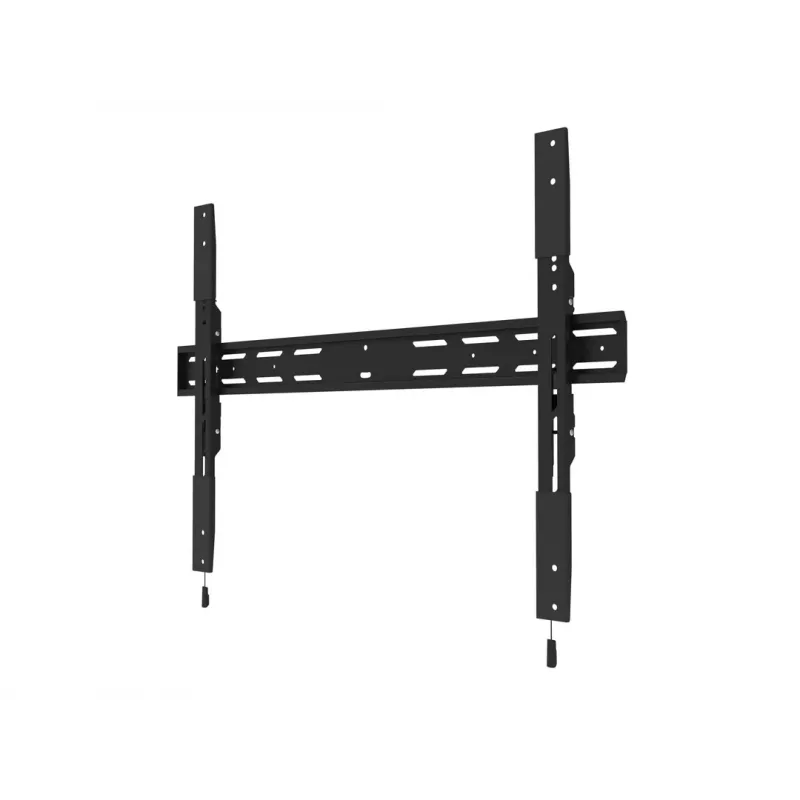

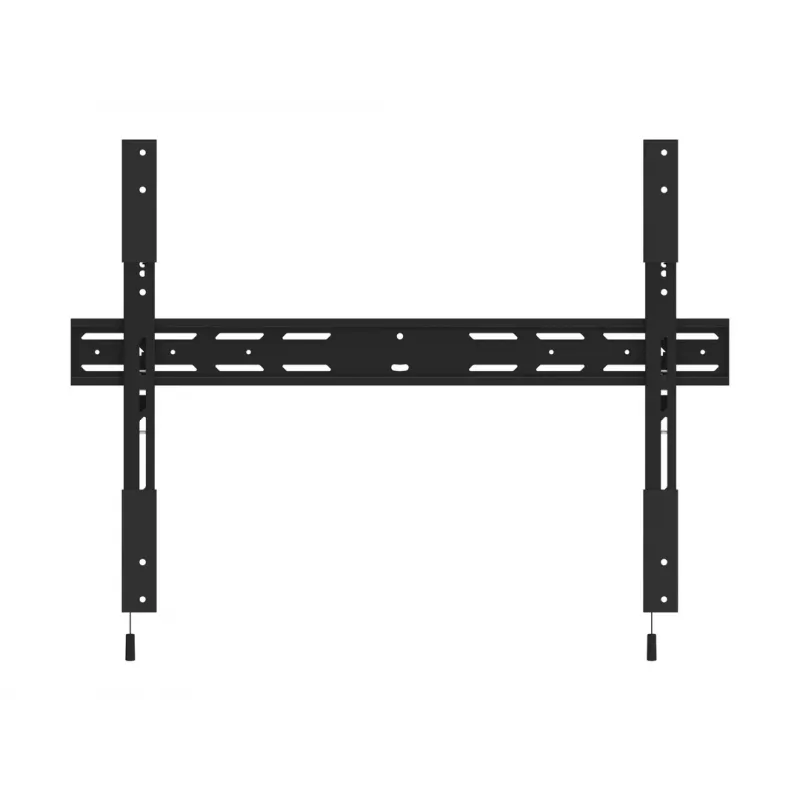

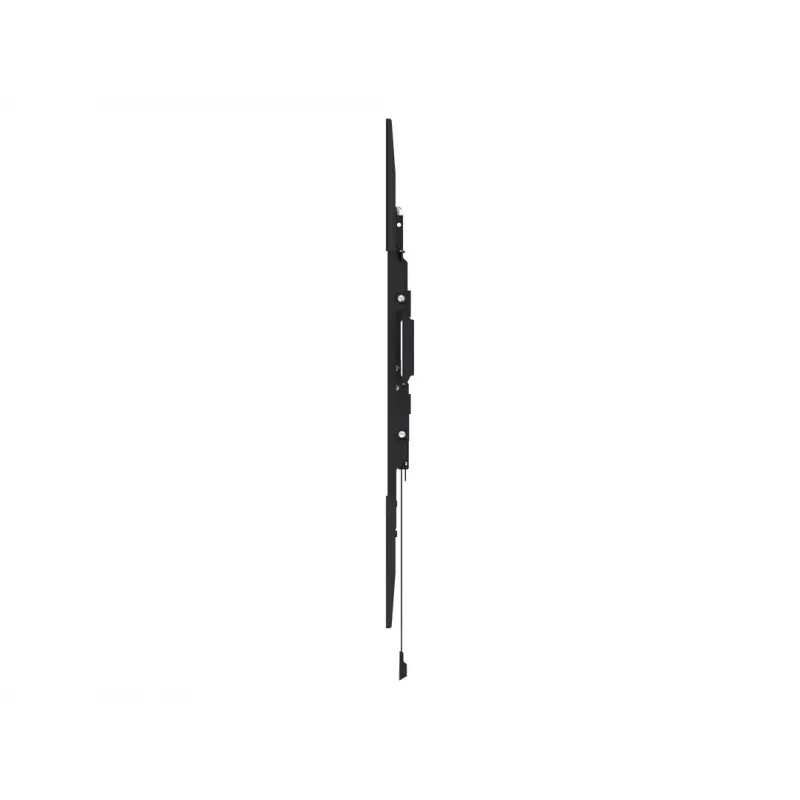

Multibrackets M Universal Wallmount Fixed X Large

The Multibrackets M Universal Wallmount Fixed X Large is a low-profile fixed wall mount for 42"–90" flat-panel TVs with a maximum load of 75 kg. Constructed from steel with a black finish, the mount supports VESA patterns from 100 x 100 mm up to 800 x 600 mm and sits just 35 mm from the wall. After installation the TV can be slid left or right along the wall plate to fine-tune its position.

Advantages

The flush design keeps the TV close to the wall for a discreet appearance while the solid steel construction provides durability and strength. The mount accommodates a wide range of VESA sizes and supports screens up to 90" and 75 kg. Quick release straps are hidden by a magnetic system and can be easily pulled down to unlock the TV for cable access or removal.

Suitable for

• 42" to 90" flat-panel TVs
• Installations requiring a low-profile, fixed wall mount
• Rooms where a slim, unobtrusive mounting solution is desired
• Displays using VESA patterns from 100 x 100 mm to 800 x 600 mm

Key specifications

• Maximum screen size: 90"
• Maximum weight capacity: 75 kg
• Supported VESA: 100 x 100 mm to 800 x 600 mm
• Distance to wall: 35 mm
• Product colour: Black
• Net weight: 3 kg

How to use

Mount the wall plate to a suitable wall following the included instructions and secure the TV to the mounting brackets using the correct VESA holes. Once the TV is attached, slide it left or right on the wall plate to achieve the desired horizontal position. To access cables or remove the TV, pull down the quick release straps hidden by the magnetic cover to unlock the brackets from the wall plate.

Recommendations

Ensure the wall and fixings can support the TV weight and follow manufacturer installation instructions; use appropriate anchors for drywall or masonry. Verify VESA compatibility and keep the magnetic covers and release straps accessible for maintenance.
