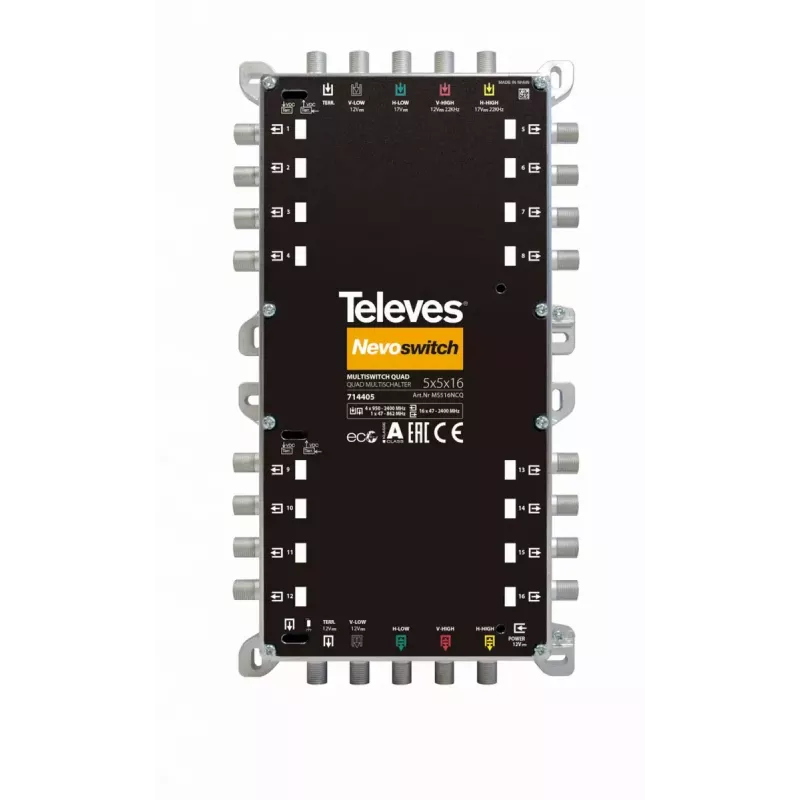

Multiswitch de satélite Televes 714405 5 entradas 16 salidas

Televes 714405 is a casc cable-compatible satellite multiswitch with five inputs (one terrestrial and four satellite polarities) and 16 user outputs. Designed for distributing satellite and terrestrial signals, this MS516NCQ model supports quad LNB configurations and can be installed either as a terminal device in a star topology or integrated into a cascade chain using a simple switch.

Advantages

The multiswitch supports a wide frequency range of 950–2400 MHz and handles input signal levels between 92 and 105 dBµV. With low current consumption (105 mA) and 16 independent outputs, it enables simultaneous signal distribution to multiple receivers while maintaining signal integrity for each output.

Suitable for

• Apartment buildings or homes requiring distribution of satellite and terrestrial signals to many receivers
• Installations using quad LNBs or quad-compatible satellite systems
• Cascaded distribution systems where multiple multiswitches are linked

Key specifications

• Brand: Televes
• Model / MPN: 714405 / MS516NCQ
• Inputs: 5 (1 terrestrial + 4 satellite polarities)
• Outputs: 16 user outputs
• Frequency range: 950–2400 MHz
• Input level range: 92–105 dBµV
• Current consumption: 105 mA
• EAN: 8424450172889

How to use

Connect the terrestrial antenna to the terrestrial input and the quad LNB outputs to the four satellite inputs. Provide power and signal routing according to your installation plan: use the device as a terminal in a star topology by connecting each output to a receiver, or join multiple multiswitches in cascade using the appropriate switch point. Ensure correct cable types and secure F-type connectors for all connections.

Recommendations

For optimal performance, keep feed cables as short as practical, use quality coaxial cables with proper shielding, and verify input signal levels fall within the specified 92–105 dBµV range. In cascaded setups, plan gain and attenuation to avoid signal overload or excessive loss.
