NEO TOOLS 75-140 Nivel láser 3D, 12 líneas verdes, 3 x 360°, recargable, con maletín de transporte, diana, fijación magnética, cargador

Experience a full 360° horizontal and dual vertical laser layout with the NEO TOOLS 75-140 — a 12-line green beam laser level that projects three complete planes for fast, accurate alignment across the entire room. With ±3 mm accuracy at 10 m and a working range up to 50 m with a detector, it’s built for demanding indoor and outdoor layout tasks.

Overview

The 75-140 combines a pendulum self-levelling system with bright green laser diodes (505–520 nm) to deliver crisp, highly visible lines. It automatically levels within ±3.5° and locks when out of range to prevent errors. A pulse mode extends compatibility with laser detectors (not included) for long-range outdoor use. The rechargeable Li-ion battery provides up to 6 hours of continuous operation, and the IP54 rating protects against dust and water splashes.

What stands out

• 12 laser lines: 3 × 360° planes (1 horizontal + 2 vertical) for complete room layout from a single setup.
• High-accuracy green beam: ±3 mm at 10 m, Class 2 laser, wavelength 505–520 nm.
• Self-levelling pendulum with ±3.5° range and manual lock for safe transport.
• Pulse mode for use with a laser detector, extending range up to 50 m.
• Rechargeable Li-ion battery with up to 6 hours runtime; charger included.
• IP54 dust and splash resistance for jobsite durability.
• Versatile mounting: 1/4" and 5/8" tripod threads plus included magnetic wall bracket.

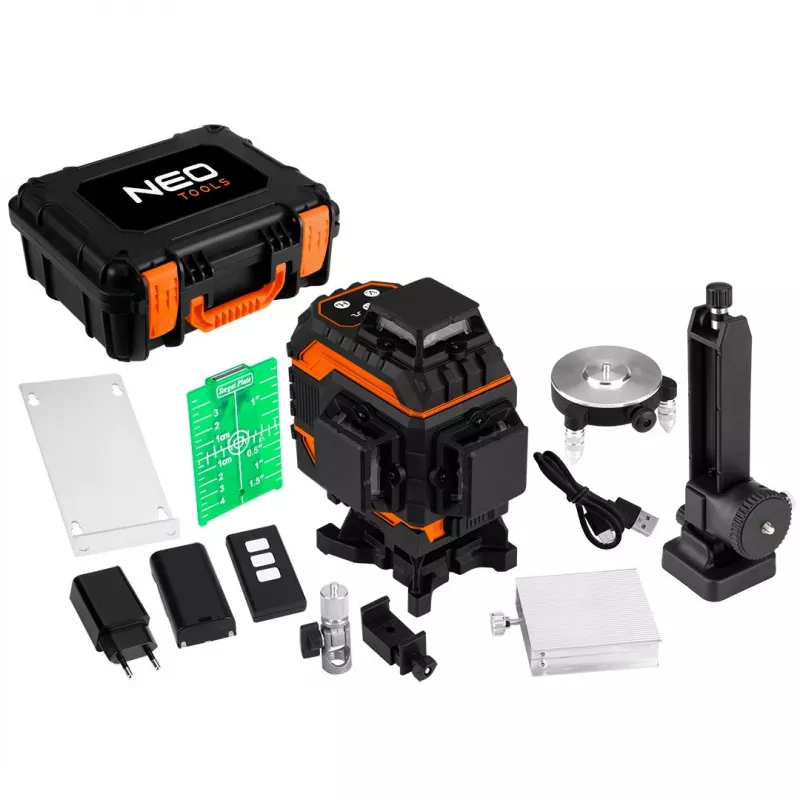

• Complete kit: carrying case, magnetic holder, target plate, charger, and user manual.

Technical details

• Laser class: Class 2
• Laser wavelength: 505–520 nm (green)
• Number of laser lines: 12 (3 × 360° planes)
• Levelling accuracy: ±3 mm at 10 m
• Self-levelling range: ±3.5°
• Working range: up to 30 m without detector; up to 50 m with detector
• Power source: Rechargeable Li-ion battery (charger included)
• Battery life: up to 6 hours (depending on line usage)
• Mounting thread: 1/4" and 5/8"
• IP rating: IP54
• Operating temperature: -10°C to 50°C
• Leveling type: Automatic (pendulum)
• Pulse mode: Yes (for use with laser detector)
• Included accessories: Carrying case, magnetic wall bracket, laser target plate, charger, user manual

Our verdict

The NEO TOOLS 75-140 is a professional-grade 3D laser level that delivers exceptional visibility and coverage. Its 12 green lines and 360° projection make it ideal for layout, framing, tiling, and installation work. The complete accessory kit and robust IP54 build ensure you’re ready for any jobsite challenge.
