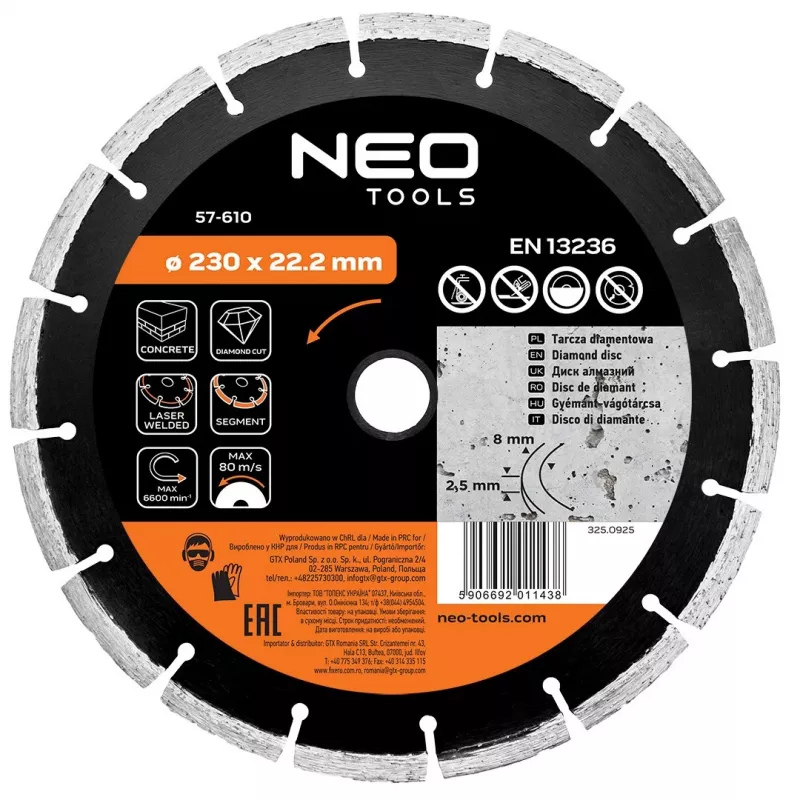

NEO TOOLS Disco de corte de diamante segmentado soldado por láser de 230 mm para hormigón y piedra, agujero de 22,2 mm

This 230 mm segmented diamond blade delivers fast, aggressive cutting through concrete, reinforced concrete, brick, and natural stone. Its 22.2 mm bore fits standard angle grinders and cut-off saws, making it a versatile choice for professional and DIY construction tasks.

Advantages

Laser-welded segments provide exceptional bond strength, reducing the risk of segment loss even under demanding conditions. The segmented rim design promotes efficient debris removal and cooler operation, while the high-quality steel core ensures stability and durability. Suitable for both dry and wet cutting, this blade adapts to your job site needs.

Suitable for

• Concrete and reinforced concrete
• Brick and paving slabs
• Roof tiles and natural stone
• Granite and marble

Key specifications

• Blade diameter: 230 mm
• Bore diameter: 22.2 mm
• Blade thickness: 2.6 mm
• Segment height: 8 mm
• Max rotational speed: 6600 RPM
• Max peripheral speed: 80 m/s
• Cutting method: Dry and wet
• Safety standard: EN 13236

Recommendations

Always check the maximum speed rating of your tool and ensure it does not exceed 6600 RPM. Use appropriate safety equipment, including eye protection and gloves. For best performance, let the blade cut at its own pace and avoid forcing it into the material.
