Toma de antena ShiverPeaks 83904-1L 2 vías DC BK+SAT — toma de conexión de pared para señales terrestres y de satélite

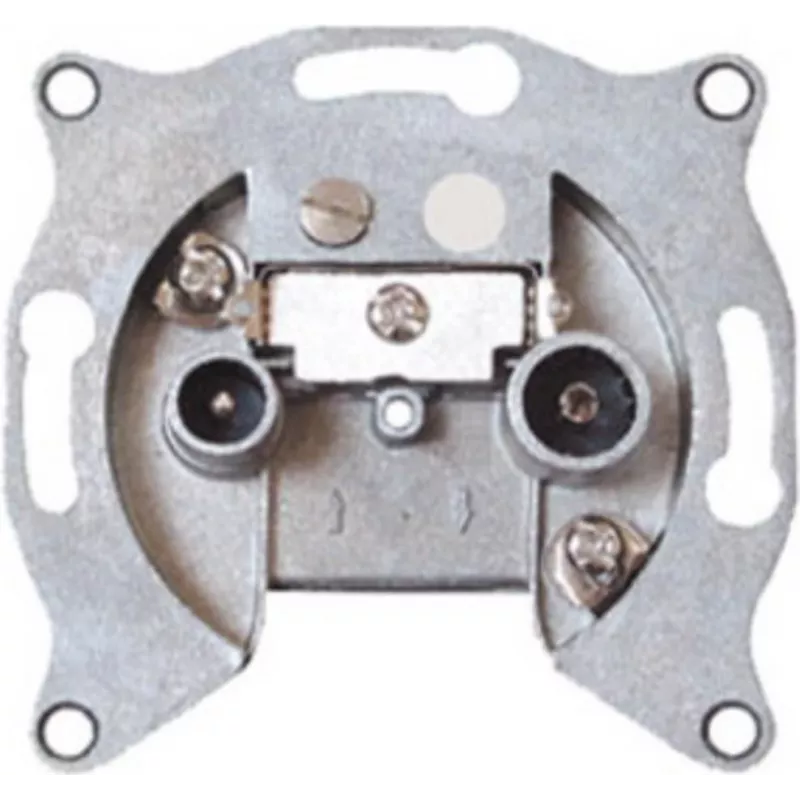

ShiverPeaks 83904-1L is a 2-way antenna socket designed to distribute terrestrial (TV/FM) and satellite signals from a single wall outlet. The outlet separates the BK (broadcast/terrestrial) and SAT paths while allowing DC pass-through to power active devices such as satellite LNBs or inline amplifiers. Built for flush wall installation, this model fits typical residential and small commercial audiovisual systems where a compact combined BK+SAT termination is required.

Advantages

The outlet provides clear separation between terrestrial and satellite signal paths with low insertion loss, enabling reliable signal distribution to two connected devices. DC pass-through capability allows powering of remote devices without additional cabling changes. The compact, wall-mounted design maintains a neat installation and is compatible with common coaxial connectors and in-wall mounting standards.

Suitable for

• Home TV and FM installations that require both terrestrial and satellite connections from one wall point
• Small commercial premises with limited wall outlet locations
• Systems where remote powering of satellite LNBs or inline amplifiers is needed
• Upgrades of existing coaxial outlets to a combined BK+SAT termination

Key specifications

• Two separated outputs: terrestrial (BK) and satellite (SAT)
• DC pass-through support for powering remote devices
• Low insertion loss for clear signal distribution
• Flush wall-mount design suitable for standard in-wall installation
• Durable housing and connector construction for long-term use

How to use

Install the antenna socket into a compatible flush-mounted back box and connect the incoming coaxial cable to the combined input. Connect the BK output to terrestrial receivers or TV tuners and the SAT output to a satellite receiver or set-top box. If remote powering is required, enable DC feed from the appropriate receiver; the outlet supports DC pass-through along the SAT path. Verify tight, secure connections and test signal levels with the receivers to confirm correct operation.

Recommendations

For optimal performance, use quality coaxial cables and connectors rated for TV and satellite frequencies. Ensure the power source for DC pass-through is compatible with the powered device and follow local electrical and installation codes when mounting the outlet.
