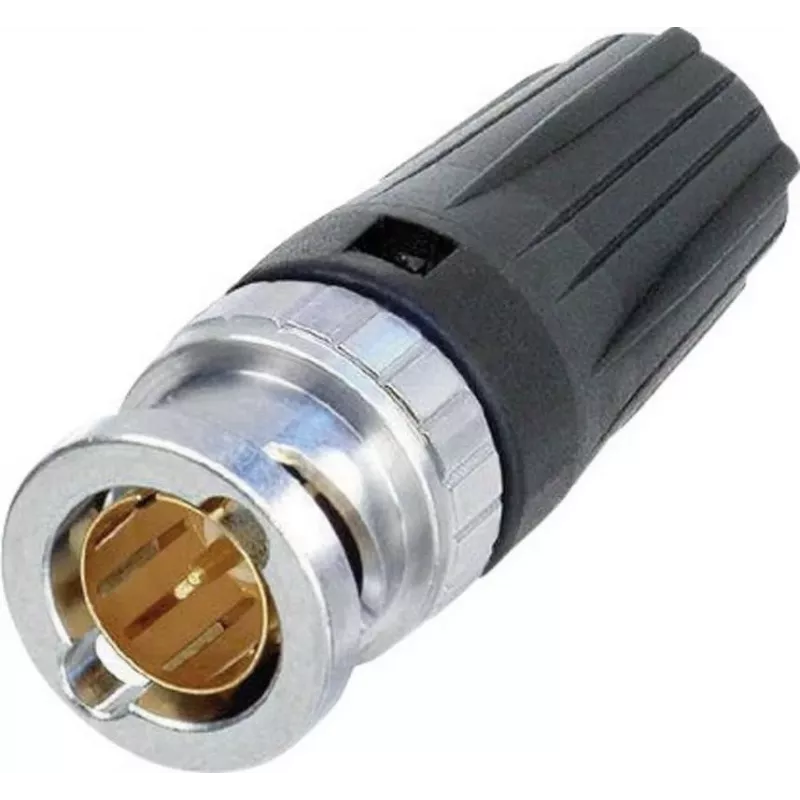

Neutrik NBNC75BUU11 rearTWIST conector macho BNC de crimpado para cable coaxial de 75 ohmios

Professional video and broadcast installations demand reliable, high-frequency connections that maintain signal integrity. The Neutrik NBNC75BUU11 is a straight BNC male crimp connector engineered for 75 Ohm coaxial cables, ensuring precise impedance matching and minimal return loss in HD-SDI and similar digital video applications. Its rearTWIST bayonet locking mechanism provides secure mating and quick release, even in dense patch panels.

Who is it for

This connector is ideal for broadcast engineers, AV technicians, and system integrators who need to terminate cables such as Belden 1855A, 1505A, or 1694A. It suits studio wiring, OB vans, and permanent installations where dependable, repeated connections are critical.

Main features

• True 75 Ohm impedance for optimal signal transmission up to 6 GHz
• rearTWIST bayonet lock allows easy finger-tightening and release in tight spaces
• Crimp termination for center pin and sleeve ensures durable, gas-tight connections
• Gold-plated center contact and nickel-plated brass body resist corrosion and wear
• PTFE dielectric supports high-frequency performance and thermal stability
• Compliant with SMPTE 292M, 424M, 2081-1, and 2082-1 standards for HD/3G/6G-SDI

Specifications

• Connector type: BNC male (plug), straight orientation
• Impedance: 75 Ohm
• Frequency range: up to 6 GHz
• Return loss: >30 dB @ 1 GHz, >22 dB @ 2 GHz, >17 dB @ 6 GHz
• Termination: crimp (center pin and sleeve)
• Compatible cables: Belden 1855A, 1505A, 1694A and similar
• Contact plating: gold (center), nickel (body)
• Dielectric: PTFE
• Insulation resistance: >5 G Ohm
• Contact resistance: <3 m Ohm (outer), <6 m Ohm (center)
• Dielectric strength: 1.5 kVdc
• Durability: >1000 mating cycles
• Operating temperature: -30 °C to +85 °C
• Voltage rating: <50 V
• Shell material: brass, nickel-plated

Tips

Use the correct crimp tool and die set for the specific cable to achieve the specified return loss. For outdoor or harsh environments, consider additional weatherproofing. The rearTWIST boot (sold separately) provides strain relief and improves cable management.
