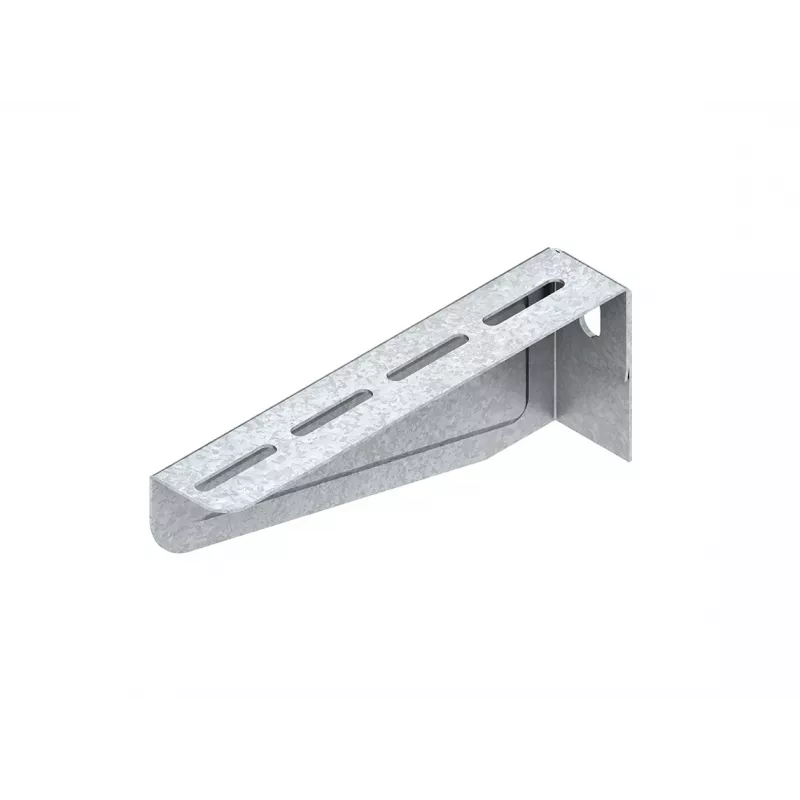

NIEDAX KTAM200 soporte de pared brazo 210mm acero sendzimir galvanizado

With a 0.2 kN load capacity and a 210 mm projection, the NIEDAX KTAM200 cantilever arm delivers dependable support for cable trays and ladders in indoor installations. Its Sendzimir galvanized steel construction ensures uniform corrosion protection, while two oval mounting holes allow for quick alignment during setup.

Overview

The KTAM200 is a cantilever arm from the NIEDAX WA series, engineered for wall mounting of cable management systems. The bracket features a backplate height of 100 mm and a profile width of 30 mm, making it suitable for standard tray widths. The Sendzimir galvanization (SD) ensures a consistent zinc coating that resists corrosion in dry indoor environments. With a maximum load capacity of approximately 20 kg, it is ideal for light to medium cable loads. The bracket is not pre-assembled, allowing flexibility in installation.

What stands out

• Sendzimir galvanized steel for reliable corrosion protection
• 0.2 kN load capacity supports light cable tray sections
• Oval mounting holes for easy alignment and adjustment
• Compact 210 mm projection fits tight wall spaces
• Compatible with NIEDAX cable management systems
• Non-combustible steel construction for fire safety

Technical details

• Product type: Wall bracket / cantilever arm
• Material: Steel, Sendzimir galvanized (SD)
• Projection length: 210 mm
• Backplate height: 100 mm
• Profile width: 30 mm
• Maximum load capacity: 0.2 kN (approx. 20 kg)
• Mounting type: Wall mount
• Number of mounting holes: 2
• Mounting hole type: Oval
• Recommended fastener diameter: M10 / M12

Our verdict

The NIEDAX KTAM200 is a robust and reliable cantilever arm for indoor cable management. Its Sendzimir galvanized finish and non-combustible steel make it a safe choice for light to medium loads, while the oval holes simplify installation.
