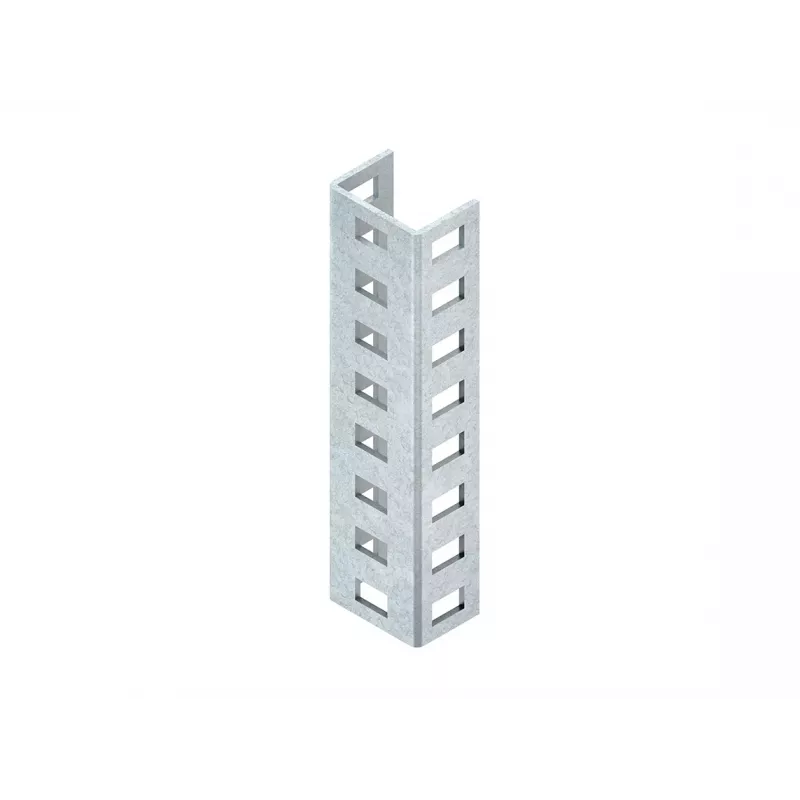

Niedax VB6040 Conector longitudinal 60 mm acero galvanizado en caliente

The Niedax VB6040 is a high-quality longitudinal connector designed for securely joining cable tray sections within the Niedax Cable Management System. Manufactured from robust steel with a hot-dip galvanized surface finish (DIN EN ISO 1461), this connector ensures excellent corrosion protection for both indoor and outdoor applications. With a compatibility height of 60 mm, it provides a reliable screw connection using four mounting holes (7 mm diameter for M6 screws). The VB6040 measures 120 mm in length, 40 mm in width, and has a material thickness of 2 mm, offering a sturdy and durable solution for cable management installations.

Advantages

Hot-dip galvanized finish provides superior corrosion resistance, extending product lifespan in harsh environments. The screw connection method ensures a secure and stable joint between cable tray sections, maintaining system integrity. Compact dimensions allow for easy integration into existing cable management setups without adding bulk.

Suitable for

• Connecting cable tray sections longitudinally in electrical installations
• Use in industrial, commercial, and residential cable management systems
• Indoor and outdoor environments requiring corrosion protection

Key specifications

• Product Type: Longitudinal Connector
• Material: Steel
• Surface Finish: Hot-dip galvanized (DIN EN ISO 1461)
• Compatibility (Cable Tray Height): 60 mm
• Mounting Method: Screw connection
• Number of Mounting Holes: 4
• Hole Diameter: 7 mm (for M6 screws)
• Length: 120 mm
• Width: 40 mm
• Material Thickness: 2 mm
• Colour: Metallic Grey

Recommendations

For optimal performance, use with Niedax cable trays of 60 mm height and M6 screws (not included). Ensure proper torque during installation to maintain a secure connection. Suitable for both new installations and retrofitting existing systems.
