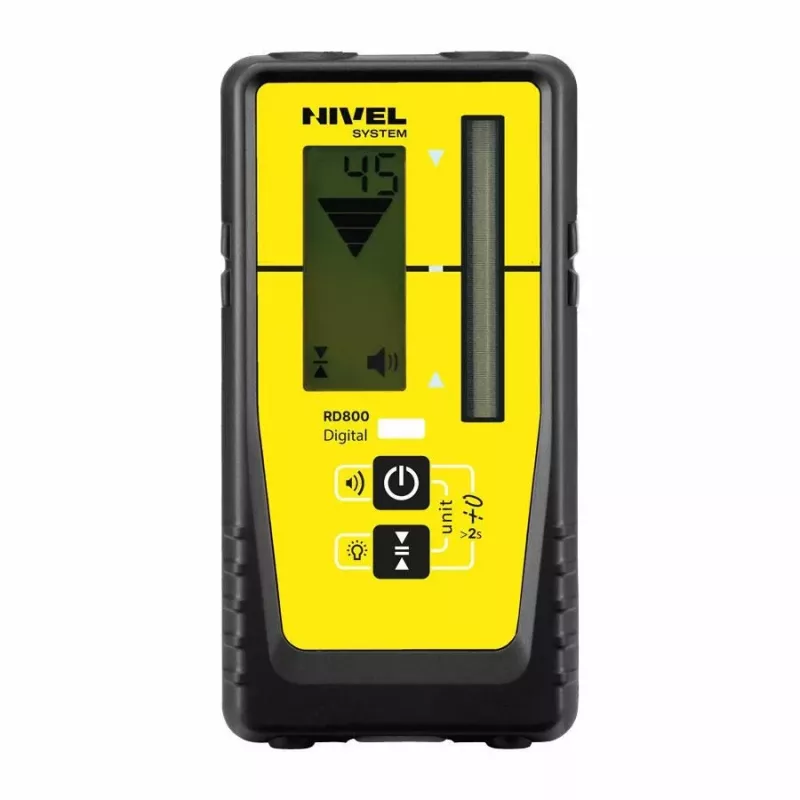

NIVEL SYSTEM RD800 receptor láser digital

The NIVEL SYSTEM RD800 Digital Laser Detector is a high-performance receiver designed for professional use with red beam rotary lasers. It offers an impressive detection range of up to 800 meters in diameter, making it ideal for large-scale construction and surveying projects. The dual-sided LCD display provides clear readings from both front and rear, while the adjustable audio indicator ensures you never miss a signal. With five accuracy levels, including fine accuracy of ±1 mm and coarse accuracy of ±5 mm, this detector delivers precision for every job.

Advantages

Exceptional detection range of 800 meters, dual-sided LCD for easy reading, adjustable volume audio indicator, five accuracy settings for versatility, IP66 water and dust resistance for durability in harsh conditions, and long battery life of up to 50 hours on two AA batteries.

Suitable for

• Construction site leveling and grading
• Surveying and land measurement
• Interior and exterior alignment tasks
• Large-scale infrastructure projects

Key specifications

• Detection Range (Diameter): 800 m
• Detection Window Height: 120 mm
• Accuracy Settings: 5 levels (Fine ±1 mm, Coarse ±5 mm)
• Display: Dual-sided LCD
• Audio Indicator: Yes, adjustable volume
• Power Source: 2 x AA batteries
• Battery Life: Up to 50 hours
• Auto Shut-off: 30 minutes
• Mounting: Rod clamp included
• Water/Dust Resistance: IP66
• Laser Compatibility: Red beam rotary lasers
• Operating Temperature: -20°C to +50°C
• On-grade Indication: Visual (LCD arrows) and audible
• Low Battery Indicator: Yes

Recommendations

For optimal performance, use with NIVEL SYSTEM red beam rotary lasers. Always store in a dry place and replace batteries when low indicator appears. Calibrate accuracy settings according to job requirements.
