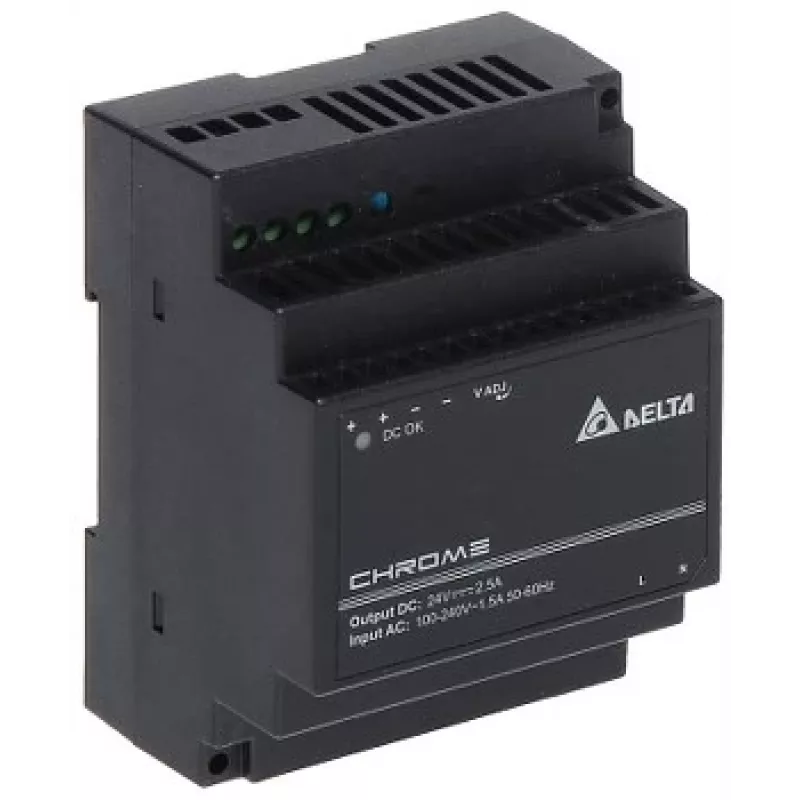

DRC-24V60W-1AZ Fuente de alimentación conmutada para carril DIN 60W, 24V 2,5A, entrada 90-264VAC, carcasa de plástico

Where open-frame supplies demand extra enclosures, the DRC-24V60W-1AZ from Delta Electronics delivers a complete DIN-rail-ready solution in a slim, touch-safe plastic housing. Built for industrial control panels and building automation, it combines stable 24 VDC output with robust protection and convection cooling—no fan, no noise, just dependable power in tight spaces.

Highlights

• Universal AC input range: 90–264 VAC, 47–63 Hz, single-phase
• Regulated 24 VDC output with 2.5 A continuous current (60 W)
• High efficiency >88% at 230 VAC reduces heat and energy costs
• Wide operating temperature: -30°C to +70°C, convection cooled
• Comprehensive protection: overvoltage, overcurrent, overtemperature, short circuit
• Complies with UL 508, IEC/EN 60950-1, and IEC/EN 62368-1 safety standards

In daily use

Field technicians appreciate the tool-free DIN rail mounting and clearly marked terminals. The output voltage is adjustable from 22 to 28 VDC via a front-panel potentiometer, allowing fine-tuning for long cable runs or specific loads. Ripple and noise stay below 100 mVp-p, ensuring clean power for sensitive PLCs, sensors, and communication modules. With an MTBF exceeding 700,000 hours, this supply is built for years of unattended operation.

Full specifications

• Series: DRC Series
• Number of outputs: 1
• Output voltage: 24 VDC (adjustable 22–28 VDC)
• Output current: 2.5 A
• Output power: 60 W
• Input voltage: 90–264 VAC, single-phase
• Input frequency: 47–63 Hz
• Efficiency: >88% at 230 VAC
• Ripple & noise: <100 mVp-p
• Operating temperature: -30°C to +70°C
• Protection features: Overvoltage, Overcurrent, Over Temperature, Short Circuit
• Safety standards: UL 508, IEC/EN 60950-1, IEC/EN 62368-1
• Enclosure material: Plastic
• Cooling method: Convection
• MTBF: >700,000 hours (Telcordia SR-332, Issue 3)
• Isolation voltage: 3 kVAC (Input to Output)
• Harmonic current compliance: EN 61000-3-2, Class A

Final note

Delta's DRC series is trusted worldwide for its reliability and compact design. This 60 W unit is the ideal choice for machine builders and panel shops seeking a safe, efficient, and long-lasting power solution.
