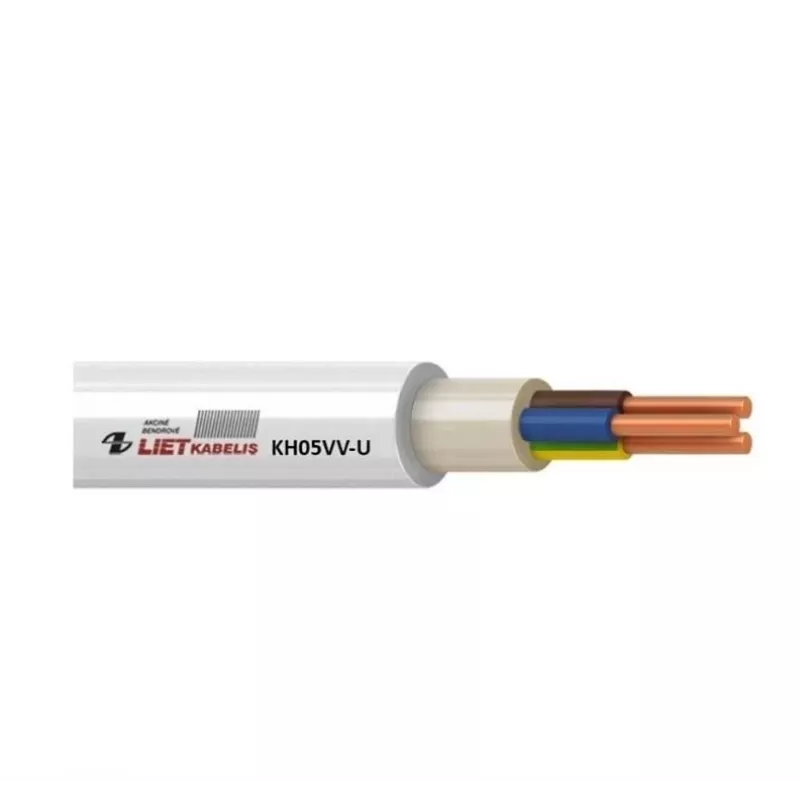

H05VV-U/NYM 3x1,5 mm² cable de alta tensión con aislamiento y funda de PVC blanco para instalación fija, 25 m

When installing permanent electrical wiring in residential or commercial buildings, you need a cable that is safe, durable, and compliant with European standards. This H05VV-U/NYM cable with three 1.5 mm² solid copper conductors and a white PVC sheath is engineered for fixed installations in dry, damp, or wet environments. It can be surface-mounted, embedded in plaster, or laid in conduits, providing reliable power distribution for lighting and socket circuits.

Who is it for

Electricians, contractors, and DIY enthusiasts who require a dependable building wire for fixed installations. This cable is ideal for indoor wiring projects such as lighting circuits, power outlets, and appliance connections where mechanical protection is not required.

Main features

• Three solid electrolytic copper conductors, each 1.5 mm² cross-section, for efficient current carrying capacity.
• White PVC insulation and outer sheath provide excellent resistance to moisture, abrasion, and common chemicals.
• Rated voltage 300/500 V, suitable for standard European low-voltage installations.
• Self-extinguishing flame retardant according to IEC 60332-1-2, enhancing fire safety.
• Complies with EN 50525-2-11 and VDE 0250 standards, ensuring quality and legal conformity.
• Includes a green/yellow earth conductor for safe grounding.
• 25-meter length on a convenient spool, reducing waste and simplifying installation.

Specifications

• Cable type: H05VV-U (NYM-J)
• Number of cores: 3
• Conductor cross-section: 1.5 mm²
• Conductor material: Electrolytic copper
• Conductor type: Solid (Class 1)
• Insulation material: PVC
• Sheath material: PVC
• Sheath colour: White
• Cable length: 25 m
• Rated voltage: 300/500 V
• Operating temperature range (fixed installation): -5°C to +70°C
• Standards met: EN 50525-2-11, VDE 0250
• Flame retardancy: Self-extinguishing (IEC 60332-1-2)
• Application: Fixed installation in dry, damp, or wet environments
• Earth conductor: Yes (green/yellow)
• Halogen-free: No
• Approximate outer diameter: 7.5 - 8.5 mm

Tips

Always turn off the power before installation. Use appropriate cable clips or conduits to secure the cable and avoid sharp bends. For outdoor or underground use, consider a cable with additional mechanical protection such as NYY or steel wire armoured. This cable is not suitable for flexible or movable connections.
