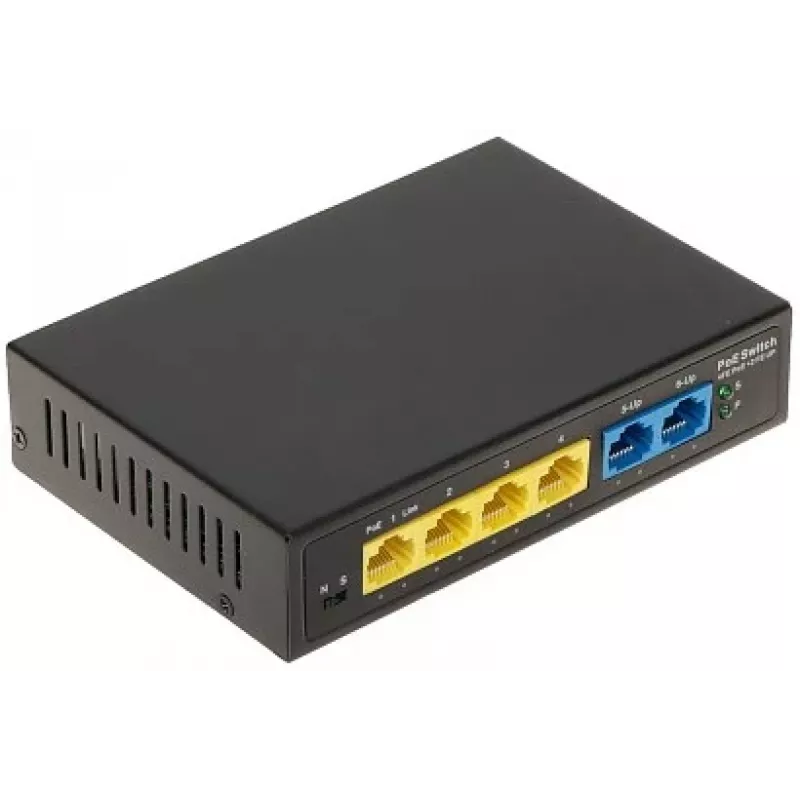

POE Switch GTX-A1-06-42-V2, switch de red PoE+ Fast Ethernet no gestionado de 4 puertos

With a total PoE power budget of 65W and up to 30W per port, this 4-port Fast Ethernet switch delivers reliable power and data to IP cameras, VoIP phones, and wireless access points. The GTX-A1-06-42-V2 combines IEEE 802.3af/at PoE+ support with a compact desktop or wall-mountable design, making it a practical choice for small business networks and surveillance installations.

Overview

The POE Switch GTX-A1-06-42-V2 is an unmanaged network switch featuring four 10/100 Mbps PoE ports and two additional 10/100 Mbps uplink RJ45 ports. It provides a total switching capacity of 1.2 Gbps and a forwarding rate of 0.89 Mpps, ensuring smooth data transfer for connected devices. The switch operates on the CSMA/CD protocol and supports jumbo frames up to 1536 bytes, enhancing efficiency for larger data packets.

What stands out

• 4 PoE+ ports with IEEE 802.3af/at compliance, delivering up to 30W per port
• Total PoE power budget of 65W, powering multiple devices simultaneously
• Compact desktop form factor with wall-mount option for flexible installation
• LED indicators for power, link/activity, and PoE status for easy monitoring
• Plug-and-play unmanaged operation—no configuration required

Technical details

• PoE Ports: 4 x 10/100 Mbps RJ45 (IEEE 802.3af/at, max 30W per port)
• Uplink Ports: 2 x 10/100 Mbps RJ45
• Switching Capacity: 1.2 Gbps
• Forwarding Rate: 0.89 Mpps
• MAC Address Table: 2K entries
• Jumbo Frame Support: 1536 bytes
• Network Protocol: CSMA/CD
• Power Supply: External power adapter (52V DC, 1.25A)
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Mounting: Desktop or wall-mountable
• Management Type: Unmanaged

Our verdict

The GTX-A1-06-42-V2 is a straightforward and dependable PoE switch for small-scale deployments. Its 65W power budget and PoE+ support make it ideal for powering a handful of IP cameras or access points without extra power injectors. The unmanaged design ensures zero-configuration setup, while the compact size fits neatly on a desk or wall. For businesses needing a simple, cost-effective PoE solution, this switch delivers exactly what's required.
