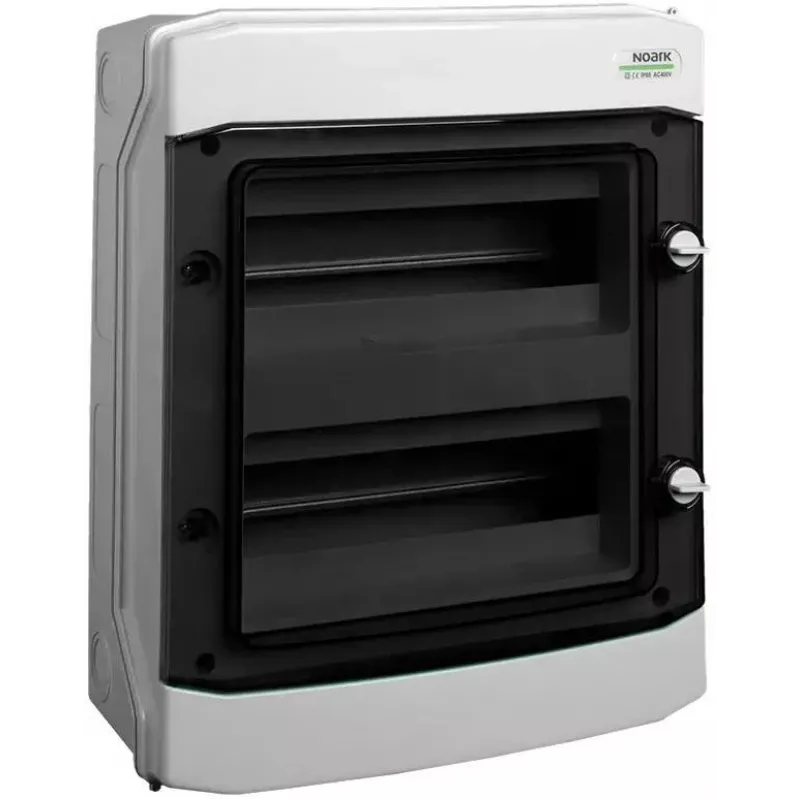

Noark PHS 24T FB Caja de distribución de superficie, IP65, 24 módulos (2x12)

Where many enclosures compromise on protection or capacity, the Noark PHS 24T FB delivers both: a 24-module surface-mounted distribution board with IP65 sealing and IK08 impact resistance, built to withstand dust, water jets, and mechanical abuse indoors or out. Its polycarbonate body resists UV degradation, while the smoked transparent door allows instant visual checks without exposing live parts.

Highlights

• IP65 ingress protection against dust and low-pressure water jets
• IK08 impact resistance for mechanical durability
• 24 modules arranged in two rows (2x12) with spacious interior
• Polycarbonate construction with UV resistance for long service life
• Transparent smoked door allows visual inspection without opening
• Includes DIN rail and N+PE terminal blocks for quick wiring

In daily use

The transparent smoked door provides at-a-glance status of installed devices, while the grey polycarbonate body blends well with any environment. The 24-module capacity offers flexibility for arranging breakers, switches, and other DIN-rail components. Rated insulation voltage up to 1000 V AC / 1500 V DC and operational voltage of 400 V AC make it suitable for a wide range of low-voltage distribution tasks.

Full specifications

• Brand: Noark
• Model: PHS 24T FB
• MPN: 110685
• EAN: 8592765014962
• Mounting Type: Surface-mounted
• IP Protection Rating: IP65
• Number of Modules: 24 (2x12)
• Number of Rows: 2
• Enclosure Material: Polycarbonate (PC)
• Door Type: Transparent, Smoked
• Rated Insulation Voltage (Ui): 1000 V AC / 1500 V DC
• Rated Operational Voltage (Ue): 400 V AC
• Rated Current (In): 63 A
• Impact Resistance: IK08
• Glow Wire Test (GWT): 650 °C
• Operating Temperature Range: -25 °C to +60 °C
• Terminal Blocks Included: N+PE (Neutral and Earth)
• DIN Rail Included: Yes
• Color: Grey body, smoked transparent door
• Standards Compliance: EN 62208, IEC 62208
• UV Resistance: Yes

Final note

For installers who need a tough, weatherproof enclosure without sacrificing visibility or capacity, the PHS 24T FB is a dependable choice for residential, commercial, and light industrial distribution.
