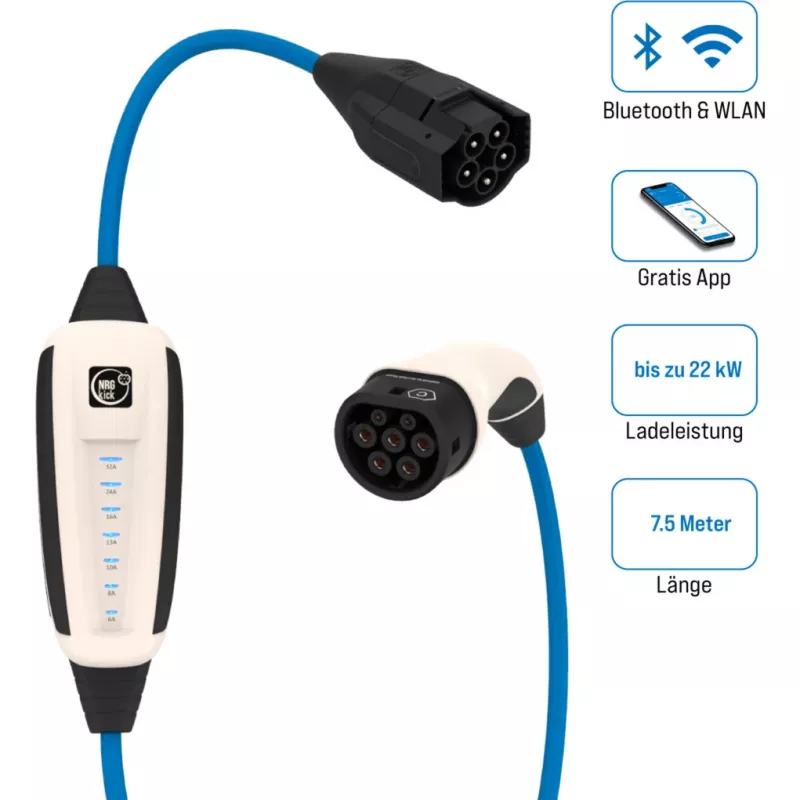

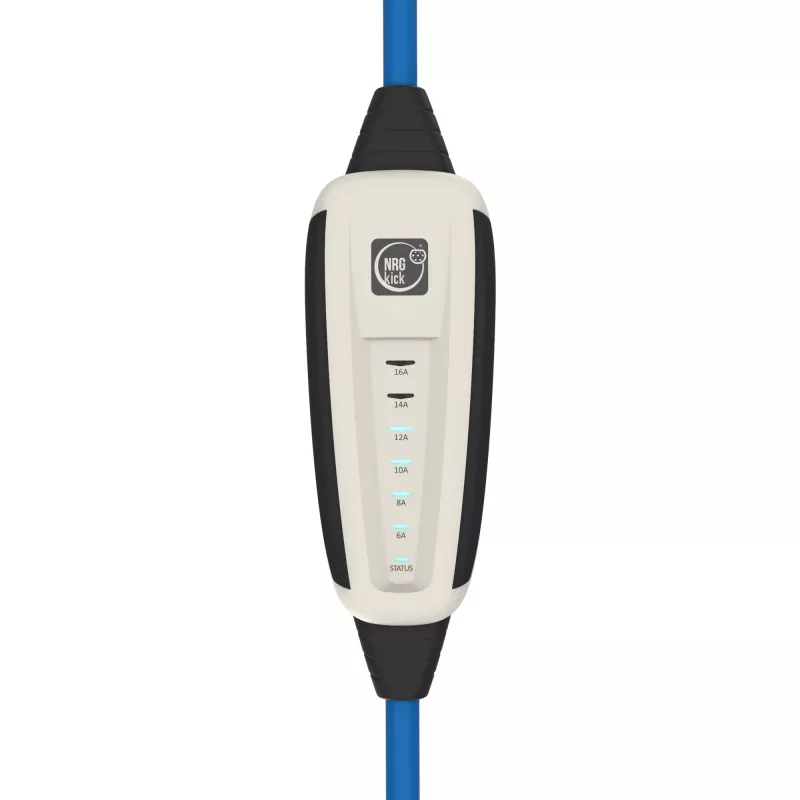

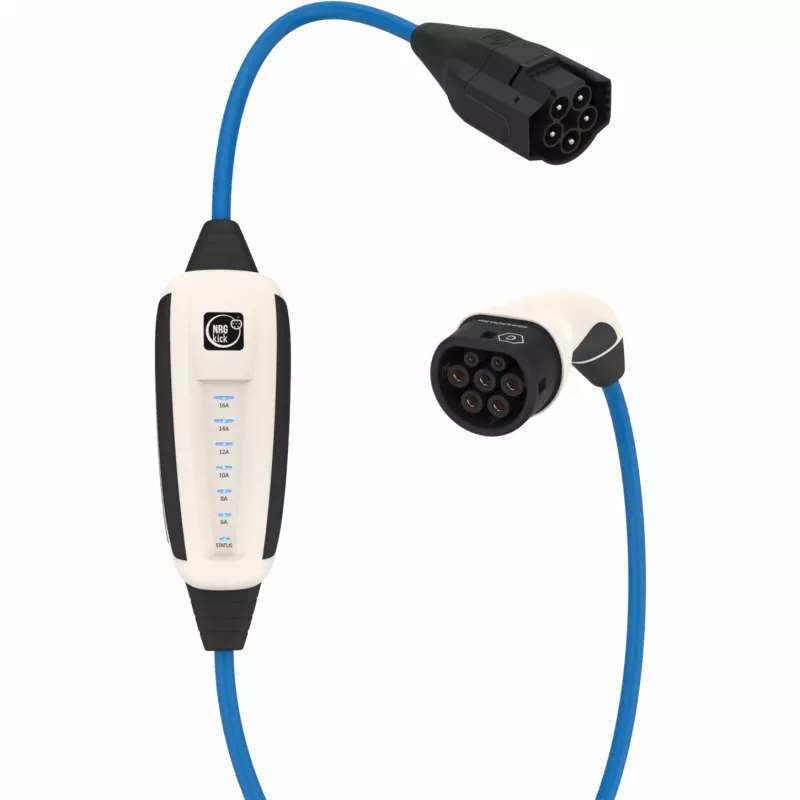

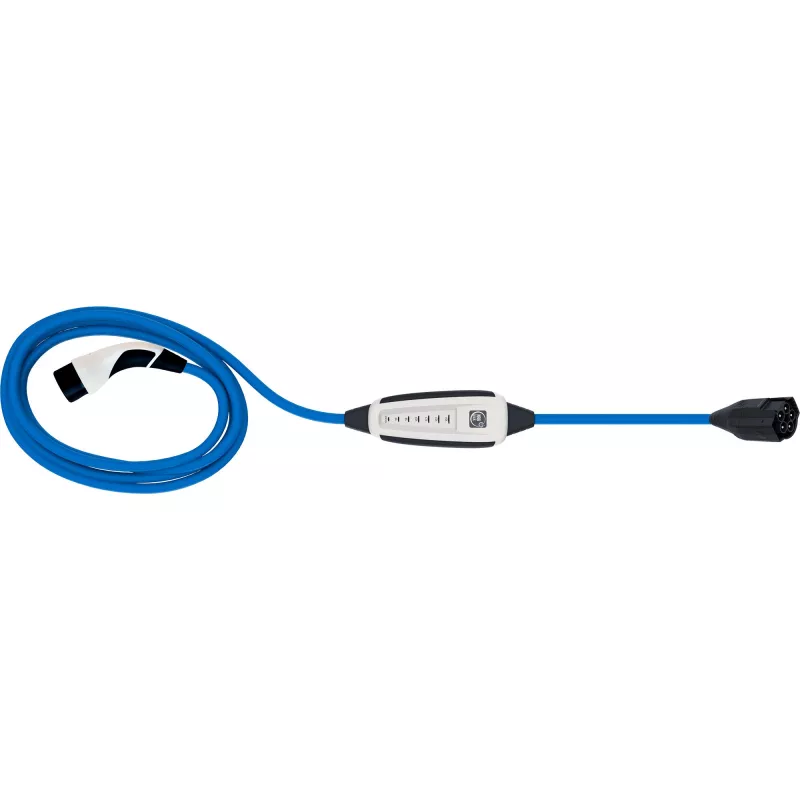

NRGkick Pure Blue Type 2 3 7,5 m 22 kW 32 A

NRGkick Pure Blue Type 2 3 7.5 m 22 kW 32 A is a portable EV charging unit that enables fast AC charging of electric vehicles with a Type 2 inlet. The compact and transportable charging device supports single-, two- and three-phase charging up to 22 kW (32 A) from standard sockets or public charging stations when used with the appropriate Smart Attachment. The unit includes integrated residual current protection and a patented safety connector system with per-pin temperature monitoring to prevent overheated or scorched sockets.

Advantages

NRGkick offers rapid charging speeds (up to 22 kW) for compatible vehicles with a Type 2 port and eliminates the need for permanent wallbox installation by working directly with standard outlets and public chargers via optional Smart Attachments. The device features autonomous load management and blackout protection that automatically reduce charging current under grid stress, OTA updates and upgradeable functions via the app, comprehensive safety functions including individual-phase temperature monitoring, hot-unplug detection, arc protection and integrated AC/DC residual current protection, plus robust mechanical and environmental ratings (IP67/IP69k, IK10).

Suitable for

• Fast AC charging of electric vehicles with Type 2 inlet (1-, 2- or 3-phase)
• Mobile use at home, at work or at public charging stations (with Smart Attachment)
• Charging from household or industrial sockets where temporary or portable charging is required
• Photovoltaic-led charging strategies and grid-friendly charging control

Key specifications

• Model: NRGkick Pure Blue Type 2 3 7.5 m
• Maximum AC power: up to 22 kW
• Current: up to 32 A
• Cable length: 7.5 m
• Connector: Type 2 (vehicle side), Smart Attachments for supply side
• Protection: Integrated residual current protection (AC, DC + 6 mA)
• Environmental ratings: IP67, IP69k; impact resistance IK10
• Operating temperature range: -40 to +70 °C
• Interfaces: Bluetooth, WiFi (optional GSM/GPS/SIM)
• Standards/compliance: VDE/ÖVE validated, CE, UKCA, RCM

How to use

Connect the Connector Unit with the appropriate Smart Attachment to a compatible power outlet or, using the Type 2 Smart Attachment, to a public charging column. Plug the Type 2 vehicle connector into the car’s inlet. Configure charging parameters, schedules or PV-led strategies in the free NRGkick app (iOS/Android) via Bluetooth or WiFi, or use the optional GSM/GPS/SIM connectivity for remote access. The unit automatically manages current based on socket temperature and grid conditions; no fixed installation is required.

Recommendations

Always use the correct Smart Attachment for the socket type and comply with local country regulations (for example, maximum allowable current for household sockets). Monitor charging via the NRGkick app, keep firmware updated via OTA, and store and transport the unit protected from severe mechanical damage despite its durable IP67/IP69k design.
