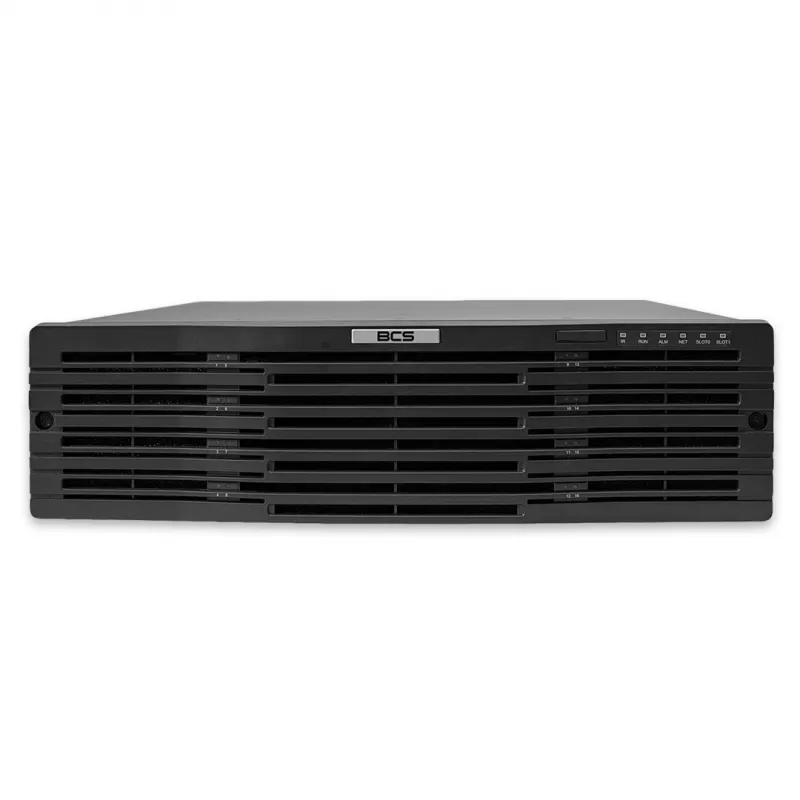

NVR IP de 64 canales 16 bahías 4K UHD H.265+ Grabadora de vídeo en red BCS-P-NVR6416-4KR

The BCS-P-NVR6416-4KR is a high-performance 64-channel IP network video recorder designed for large-scale surveillance systems. Supporting up to 12MP resolution and H.265+ compression, it delivers exceptional video quality while reducing bandwidth and storage requirements. With 16 SATA III bays (up to 160 TB total), 384 Mbps bandwidth, and dual 4K HDMI outputs, this NVR is ideal for enterprise, industrial, and government applications requiring reliable, long-term recording.

Advantages

• 64-channel recording with 12MP (4K UHD) resolution support
• H.265+/H.265/H.264+/H.264 compression for efficient storage
• 16 SATA III HDD bays, each supporting up to 10 TB (160 TB max)
• 384 Mbps incoming and outgoing bandwidth for smooth multi-camera streaming
• Dual HDMI outputs (up to 4K) and VGA output for flexible monitoring
• 16 alarm inputs and 6 alarm outputs for integration with security systems
• Simultaneous playback of up to 16 channels
• Low power consumption (<20W without HDD) and wide operating temperature range (-10°C to +55°C)

Suitable for

• Large commercial buildings and office complexes
• Industrial facilities and warehouses
• Government and public safety installations
• Educational campuses and hospitals
• Retail chains and logistics centers

Key specifications

• Brand: BCS
• Model: BCS-P-NVR6416-4KR
• EAN: 5904890702806
• Video Input Channels: 64 IP channels
• Max Recording Resolution: 12 Megapixels (4K UHD)
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 384 Mbps
• Outgoing Bandwidth: 384 Mbps
• Video Outputs: 2x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In / 1x RCA Out
• Alarm: 16x In / 6x Out
• HDD Bays: 16x SATA III (up to 10 TB each, 160 TB total)
• Network: 2x Gigabit Ethernet (RJ-45)
• USB: 2x USB 2.0, 1x USB 3.0
• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption: <20W (without HDD)
• Operating Temperature: -10°C to +55°C
• Simultaneous Playback: Up to 16 channels

Recommendations

For optimal performance, pair this NVR with BCS PoE switches and compatible IP cameras. Use enterprise-grade SATA III HDDs rated for 24/7 surveillance. Ensure proper ventilation and backup power supply for critical installations.
