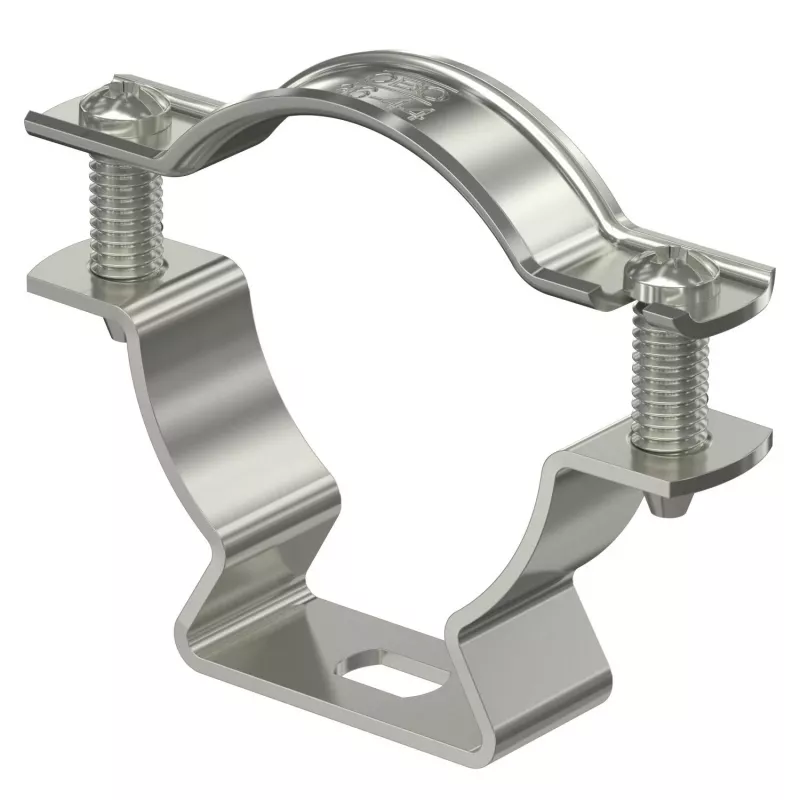

OBO BETTERMANN ASL 733 abrazadera de separación 44 mm acero inoxidable A2 con ranura alargada 1362992

Spacer clamp for pipes and cables with a diameter of 44 mm, made of stainless steel A2 (AISI 304) for high corrosion resistance. The clamp features a slotted hole (7 x 20 mm) for flexible mounting and provides a distance of 20 mm from the mounting surface, ideal for installations requiring spacing from the wall or ceiling.

Advantages

Stainless steel A2 ensures durability in indoor and outdoor environments, including areas with high humidity or mild chemical exposure. The slotted hole allows for easy adjustment during installation, reducing the need for precise drilling. The clamp is halogen-free and silicone-free, making it suitable for sensitive applications. It withstands temperatures from -40 to +400 °C and offers excellent UV resistance.

Suitable for

• Fastening pipes and cables with 44 mm outer diameter
• Indoor and outdoor installations requiring corrosion resistance
• Applications where a 20 mm stand-off from the mounting surface is needed
• Use in environments with temperature extremes or UV exposure

Key specifications

• Clamp type: Spacer clamp
• Material: Stainless steel A2 (AISI 304)
• Suitable diameter: 44 mm
• Mounting hole: Slotted, 7 x 20 mm
• Distance to mounting surface: 20 mm
• Clamp band width: 18 mm
• Total height: 60 mm
• Halogen-free, silicone-free, UV-resistant
• Temperature resistance: -40 to +400 °C

Recommendations

Use with appropriate fasteners for stainless steel to avoid galvanic corrosion. For outdoor installations, ensure proper drainage to prevent water accumulation. The slotted hole allows for fine adjustment; tighten securely after positioning.
