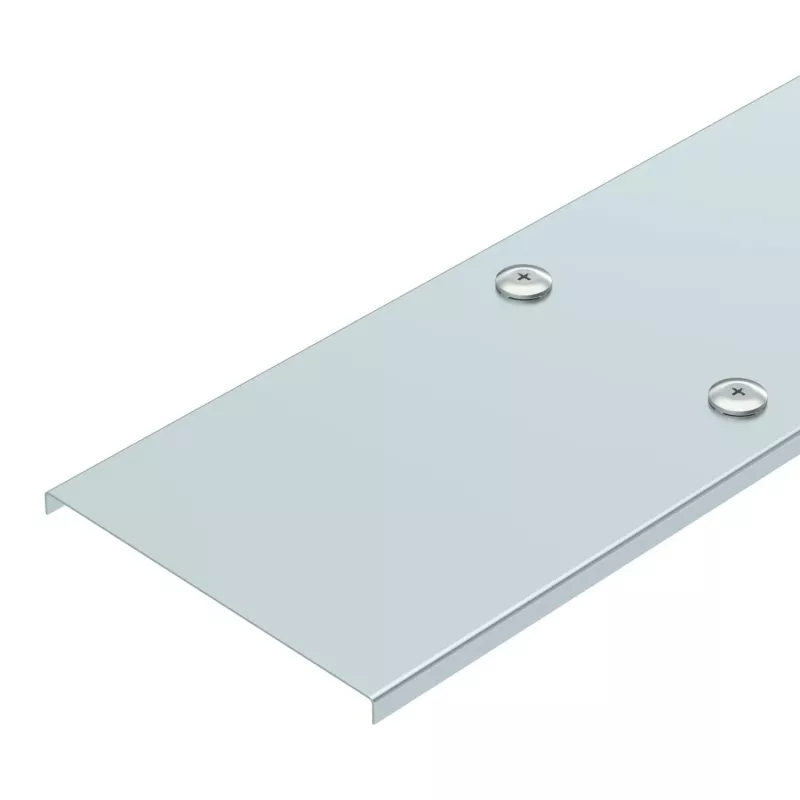

OBO Bettermann AZDMD 150 tapa de acero con cierre giratorio para canalización de canal pequeño AZ de 150 mm de ancho, 3000 mm de longitud, galvanizado en caliente 6080860

The OBO Bettermann AZDMD 150 lid brings a tool-free rotary latch closure to the AZ-Kleinkanal cable trunking system, making it faster to open and close than conventional snap-on covers. Built from hot-dip galvanized steel to EN 10346, it matches the corrosion resistance of the trunking itself and is suited to industrial, commercial and infrastructure installations where repeated access to cables is required.

Highlights

• Rotary latch mechanism for quick, secure closure without tools
• Hot-dip galvanized steel (Sendzimir process) for long-term corrosion protection
• Designed for OBO AZ-Kleinkanal trunking with 150 mm width
• Length 3000 mm, width 153 mm, profile height 15 mm
• Metallic grey natural galvanized finish blends with the trunking system

In daily use

The lid sits flush on the AZ-Kleinkanal base and is held by rotary latches that engage with a quarter turn. This allows maintenance staff to open a section without removing screws or clips, then close it again with positive locking. The galvanized surface withstands moisture and UV exposure, so the lid remains functional in both indoor and outdoor runs.

Full specifications

• Material: Steel
• Surface treatment: Hot-dip galvanized (Sendzimir galvanized)
• Galvanization standard: EN 10346
• Compatible trunking width: 150 mm
• Length: 3000 mm
• Width: 153 mm
• Profile height: 15 mm
• Mounting mechanism: Rotary latch
• Colour: Metallic grey
• Corrosion resistance: High
• UV resistance: Yes
• Application area: Industrial, commercial, infrastructure
• Installation: Tool-free latch operation
• Function: Secure closure and protection for cables

Final note

As an integral part of the OBO AZ-Kleinkanal system, the AZDMD 150 lid ensures that cable runs remain protected and accessible, with a closure method that reduces installation and maintenance time.
