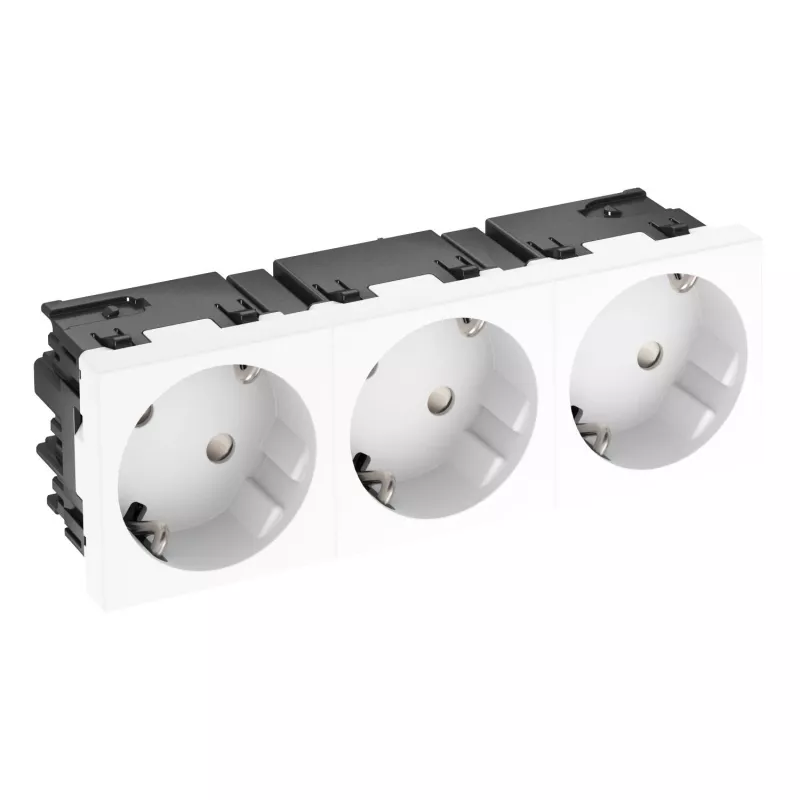

OBO BETTERMANN Connect 45 STD-D3SC RW3 Toma de corriente 3 tomas Schuko 33° blanco puro 6120503

This OBO BETTERMANN Connect 45 STD-D3SC RW3 is a 3-way Schuko socket outlet with a 33° angled orientation, designed for installation in cable ducts, device installation trunking, and desk systems. It provides three protected contact sockets (Type F, CEE 7/3) with increased touch protection, making it suitable for areas where safety is a priority.

Advantages

The 33° angled design allows for easier plug insertion and better cable management in confined spaces. The pure white (RAL 9010) matt finish blends seamlessly with modern interiors. Constructed from halogen-free thermoplastic (PC/ABS), it meets high safety and environmental standards. The plug-in terminals enable quick and tool-free wiring.

Suitable for

• Installation in OBO Connect 45 mounting system
• Use in cable ducts and device installation trunking
• Desk systems and workstation environments
• Residential, commercial, and office applications

Key specifications

• Number of socket outlets: 3
• Socket type: Schuko (Type F, CEE 7/3)
• Socket orientation angle: 33°
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Plug-in terminals
• Material: Thermoplastic (PC/ABS), halogen-free
• Colour: Pure white (RAL 9010)
• Module width: 3 modules (135 mm)
• Protection class: IP20
• Increased touch protection: Yes
• Surface finish: Matt

Recommendations

For a clean and professional installation, pair this socket outlet with OBO BETTERMANN Connect 45 frames and covers. Ensure proper wiring by a qualified electrician and verify compatibility with your existing trunking system.
