OBO ALQ M32 tensor rápido M32 aluminio 2149932

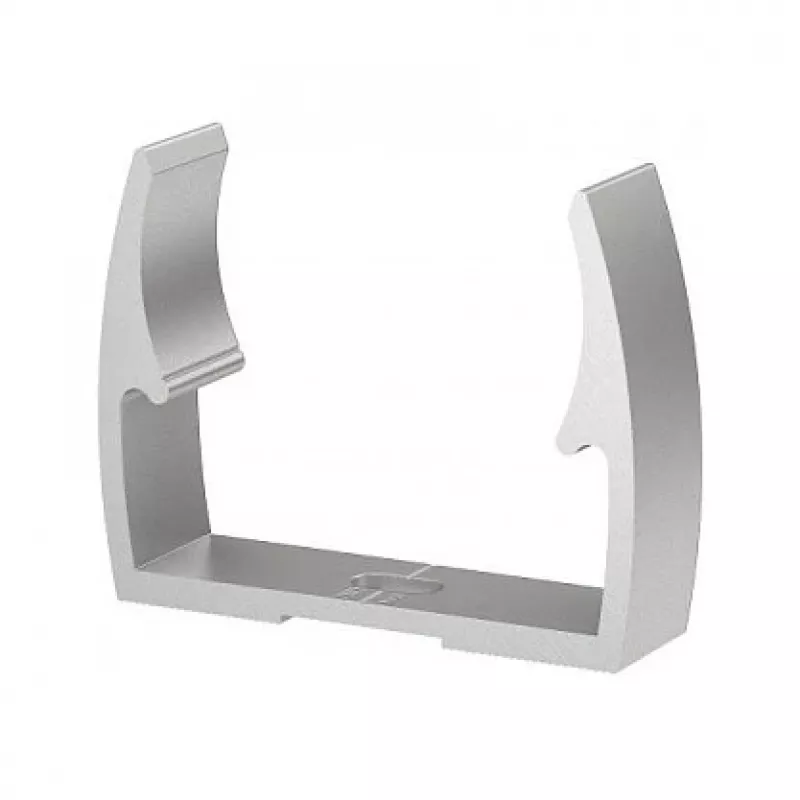

Electricians and panel builders working with 32 mm conduits need a fastening solution that holds securely without damaging the conduit. The OBO ALQ M32 Quick Clamp answers that call with a single-screw design that grips the conduit firmly while allowing quick installation and removal. Its aluminium body is lightweight yet robust, making it suitable for both indoor and outdoor installations where corrosion resistance matters.

Key specifications

• Nominal size: M32
• Suitable for conduit diameter: 32 mm
• Material: Aluminium
• Surface treatment: Untreated (natural aluminium)
• Mounting type: Screw mounting
• Number of fastening holes: 1
• Fastening hole diameter: 6.5 mm
• Recommended screw size: M6
• Halogen-free: Yes
• UV-resistant: Yes
• Temperature range: -40 to +120 °C
• Application area: Indoor and outdoor
• Standard: DIN EN 61386-1
• RoHS compliant: Yes
• REACH compliant: Yes

Why choose it

The OBO ALQ M32 Quick Clamp combines the strength of aluminium with a quick-release mechanism that saves time during installation and maintenance. Its single-hole design allows for fast screw mounting on walls, ceilings, or panels. The natural aluminium finish provides inherent corrosion resistance, making it a reliable choice for long-term use in various environments. Additionally, the clamp is halogen-free and UV-resistant, ensuring it remains safe and durable even when exposed to sunlight or high temperatures.

Ideal use cases

• Securing 32 mm conduits in electrical installations
• Indoor and outdoor cable management for commercial and industrial buildings
• Quick assembly and disassembly during maintenance or system changes
• Applications requiring halogen-free and UV-resistant components

Good to know

The clamp is part of the OBO ALQ series, known for its reliable performance in conduit fastening. It complies with DIN EN 61386-1, ensuring it meets European standards for conduit systems. The product is RoHS and REACH compliant, confirming its safety for use in various markets. With a temperature range from -40 to +120 °C, it can withstand extreme conditions without compromising its holding power.
