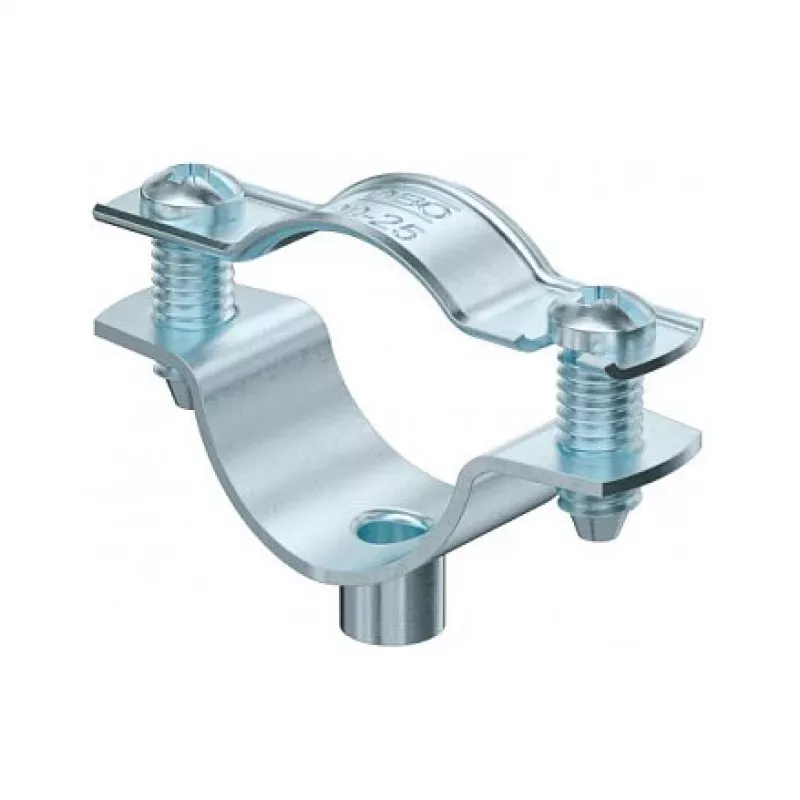

OBO ASG 732 25 G abrazadera de distancia con conexión roscada M6 20-25 mm acero

For secure, spaced mounting of pipes, conduits, and cables, the OBO ASG 732 25 G distance clamp offers a robust steel construction with an M6 threaded connection. Its 20–25 mm clamping range and electro-galvanized finish ensure reliable performance in demanding installations.

Highlights

• Clamping diameter range: 20–25 mm for versatile pipe and cable sizes
• M6 threaded connection for secure fastening
• Electro-galvanized steel provides corrosion protection
• Approx. 25 mm distance to mounting surface for proper spacing
• Suitable for metal pipes, plastic pipes, and cables

In daily use

This distance clamp simplifies installation by providing a fixed offset from the wall or ceiling, ensuring consistent spacing for pipe runs and cable bundles. The threaded connection allows for quick, tool-assisted mounting, while the galvanized coating resists rust in indoor and outdoor environments.

Full specifications

• Product type: Distance clamp
• Series: ASG 732
• Clamping diameter range: 20–25 mm
• Connection type: Threaded connection
• Thread size: M6
• Material: Steel
• Surface treatment: Electro-galvanized
• Corrosion protection: Yes
• Mounting type: Screw-on
• Distance to mounting surface: Approx. 25 mm
• Suitable for: Metal pipes, plastic pipes, cables
• Halogen-free: No
• UV resistant: No
• RoHS compliant: Yes
• Colour: Metallic (Silver)

Final note

Engineered for reliability, the OBO ASG 732 25 G distance clamp delivers consistent spacing and long-lasting performance in electrical and mechanical installations.
