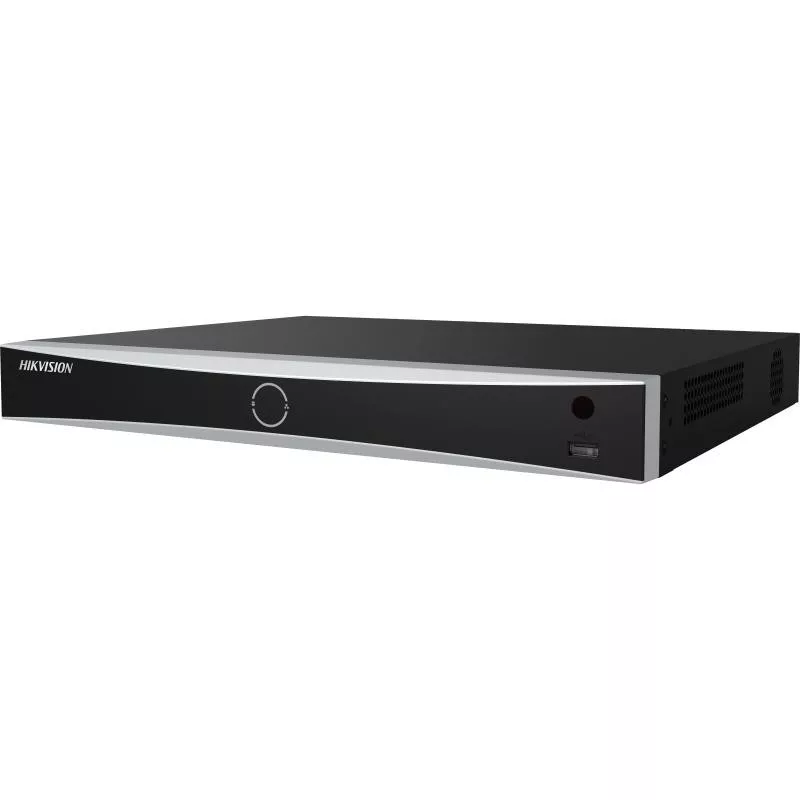

Hikvision DS-7616NXI-I2/16P/S NVR 4K de 16 canales con AcuSense y PoE de 16 puertos

The Hikvision DS-7616NXI-I2/16P/S is a high-performance 16-channel network video recorder (NVR) with built-in 16-port PoE switch, designed for professional surveillance systems. It supports up to 12 MP resolution recording and features AcuSense AI technology for accurate human/vehicle classification, reducing false alarms. With a 160 Mbps incoming bandwidth and H.265+ compression, it delivers efficient storage and bandwidth utilization.

Advantages

AcuSense AI reduces false alarms by distinguishing humans and vehicles from other motion. The integrated 16-port PoE switch simplifies installation by powering cameras directly, with a total PoE budget of 130 W. Dual SATA bays support up to 10 TB each, providing ample storage for long-term recording. 4K HDMI output ensures crisp video on compatible monitors.

Suitable for

• Medium to large retail stores, offices, and warehouses requiring 16-channel surveillance
• Installations needing PoE-powered cameras to reduce cabling
• Security systems where accurate event detection is critical

Key specifications

• 16-channel IP video input with 16 independent PoE ports
• Max recording resolution: 12 MP
• Incoming bandwidth: 160 Mbps; outgoing: 256 Mbps
• Video compression: H.265+/H.265/H.264+/H.264
• AI: AcuSense (human/vehicle classification)
• 2 SATA bays, up to 10 TB per bay
• HDMI output up to 4K (3840×2160); VGA up to 1080p
• 1x Gigabit Ethernet, 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Audio: 1-ch RCA input, 1-ch RCA output
• PoE power budget: 130 W
• Power supply: 100-240 VAC, 50/60 Hz
• Power consumption (without HDD/PoE): ≤15 W
• Operating temperature: -10°C to 55°C (14°F to 131°F)

Recommendations

For optimal performance, pair with Hikvision AcuSense cameras and use enterprise-grade SATA HDDs. Ensure adequate ventilation for the PoE power supply. This NVR is ideal for expanding existing Hikvision systems or building new 16-channel setups.
